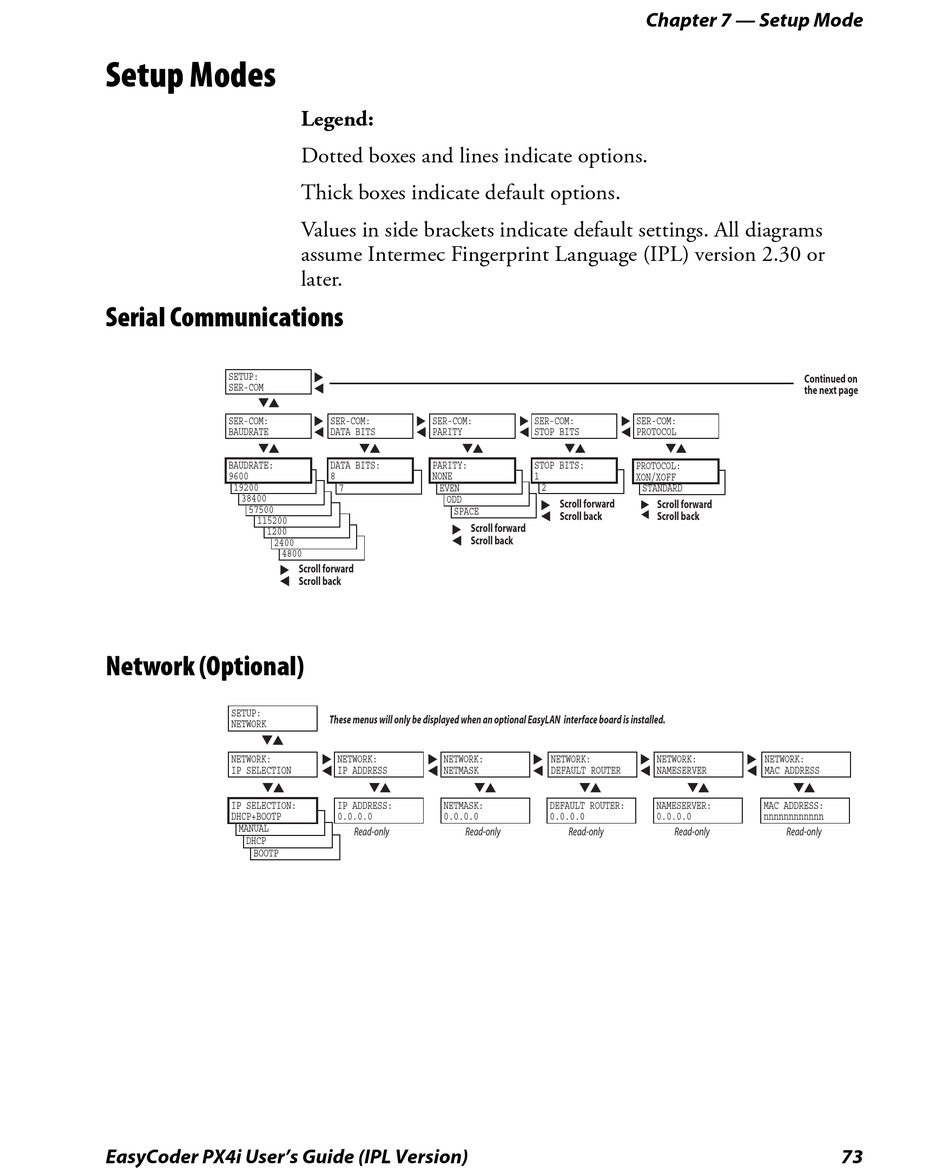

Setup Modes

Serial Communications

SETUP:
SER-COM
SER-COM:
BAUDRATE
BAUDRATE:
9600
BAUDRATE;
19200 BAUDRATE;
38400 BAUDRATE;
57500 BAUDRATE;
115200 BAUDRATE;
1200 BAUDRATE;
2400 BAUDRATE;
4800

Network (Optional)

SETUP:
NETWORK
NETWORK:
IP SELECTION
IP SELECTION:
DHCP+BOOTP
PARITY:
MANUAL
PARITY:
DHCP
PARITY:
BOOTP
EasyCoder PX4i User's Guide (IPL Version)
Legend:
Dotted boxes and lines indicate options.
Thick boxes indicate default options.
Values in side brackets indicate default settings. All diagrams
assume Intermec Fingerprint Language (IPL) version 2.30 or
later.
SER-COM: SER-COM:
DATA BITS PARITY
DATA BITS: PARITY:
8 NONE
CHAR LENGTH PARITY:
7 EVEN
PARITY:
ODD
PARITY:
SPACE
Scroll forward
Scroll back
Scroll forward
Scroll back
These menus will only be displayed when an optional EasyLAN interface board is installed.
NETWORK: NETWORK:
IP ADDRESS NETMASK
IP ADDRESS: NETMASK:
0.0.0.0 0.0.0.0
Read-only Read-only
Chapter 7 — Setup Mode
SER-COM: SER-COM:
STOP BITS PROTOCOL
STOP BITS:
PROTOCOL:
1
STOP BITS: XON/XOFF ENQ/ACK:
2 STANDARD
Scroll forward Scroll forward
Scroll back Scroll back
NETWORK: NETWORK:
DEFAULT ROUTER NAMESERVER
DEFAULT ROUTER: NAMESERVER:
0.0.0.0 0.0.0.0
Read-only Read-only
Continued on
the next page
NETWORK:
MAC ADDRESS
MAC ADDRESS:
nnnnnnnnnnnn
Read-only
