Advantages of Using the Menu Interface

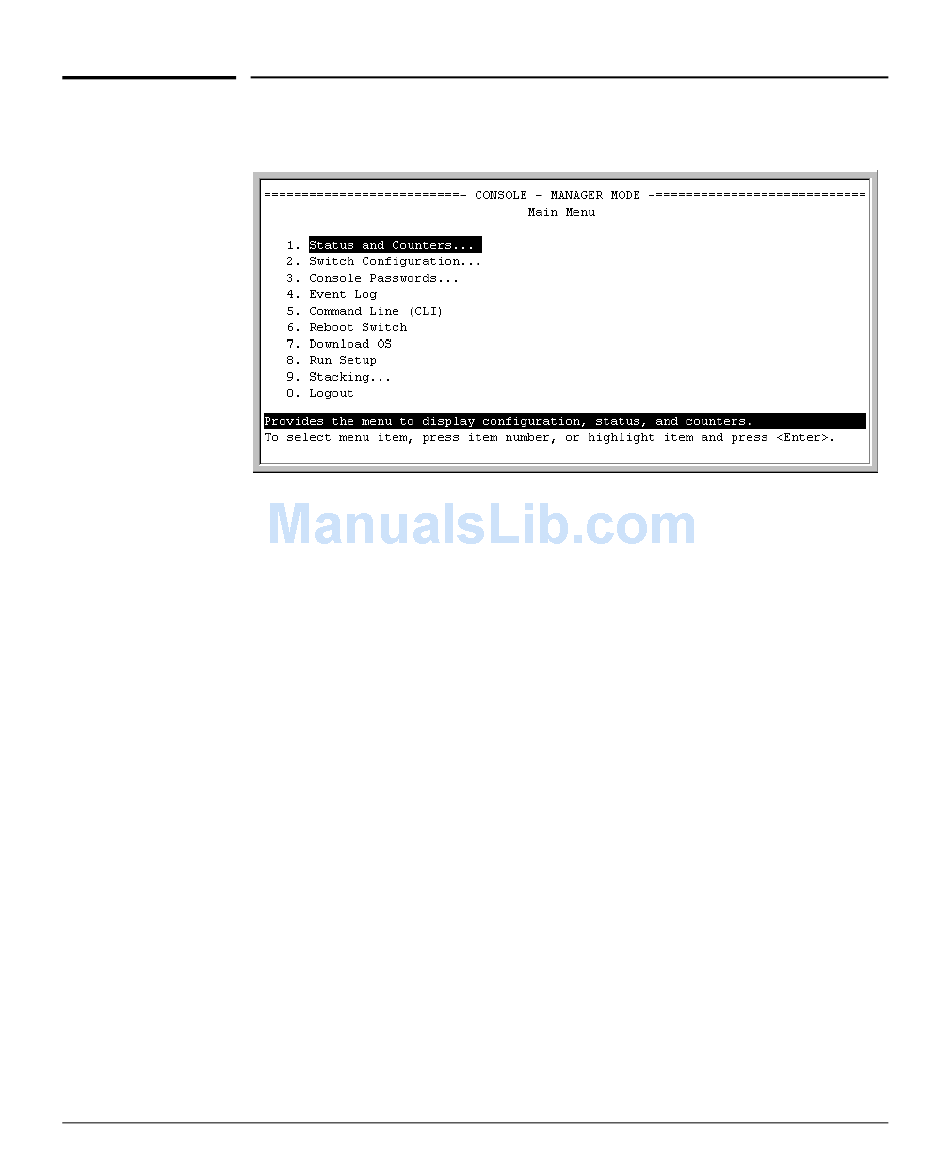

Figure 2-1. Example of the Console Interface Display
■
Provides quick, easy management access to a menu-driven subset of
switch configuration and performance features:
• IP addressing
• VLANs and GVRP
• Port Security
• Port and Static Trunk
Group
• Stack Management
The menu interface also provides access for:
• Setup screen
• Event Log display
• Switch and port • Reboots
status displays
Offers out-of-band access (through the RS-232 connection) to the
■
switch, so network bottlenecks, crashes, lack of configured or correct IP
address, and network downtime do not slow or prevent access
■
Enables Telnet (in-band) access to the menu functionality.
Selecting a Management Interface
Advantages of Using the Menu Interface
• Spanning Tree
• System information
• Passwords
• SNMP communities
• Time protocols
• Switch and port statistic and
counter displays
• Software downloads
2-3
