Figure 4-90 LLDP Local Port Information – Show Detail window
Click the <<Back button to return to the previous page.

LLDP Remote Port Information

This page displays port information learned from the neighbors. The switch receives packets from a remote station but
is able to store the information as local.
To view the following window, click L2 Features > LLDP > LLDP Remote Port Information, as show below:

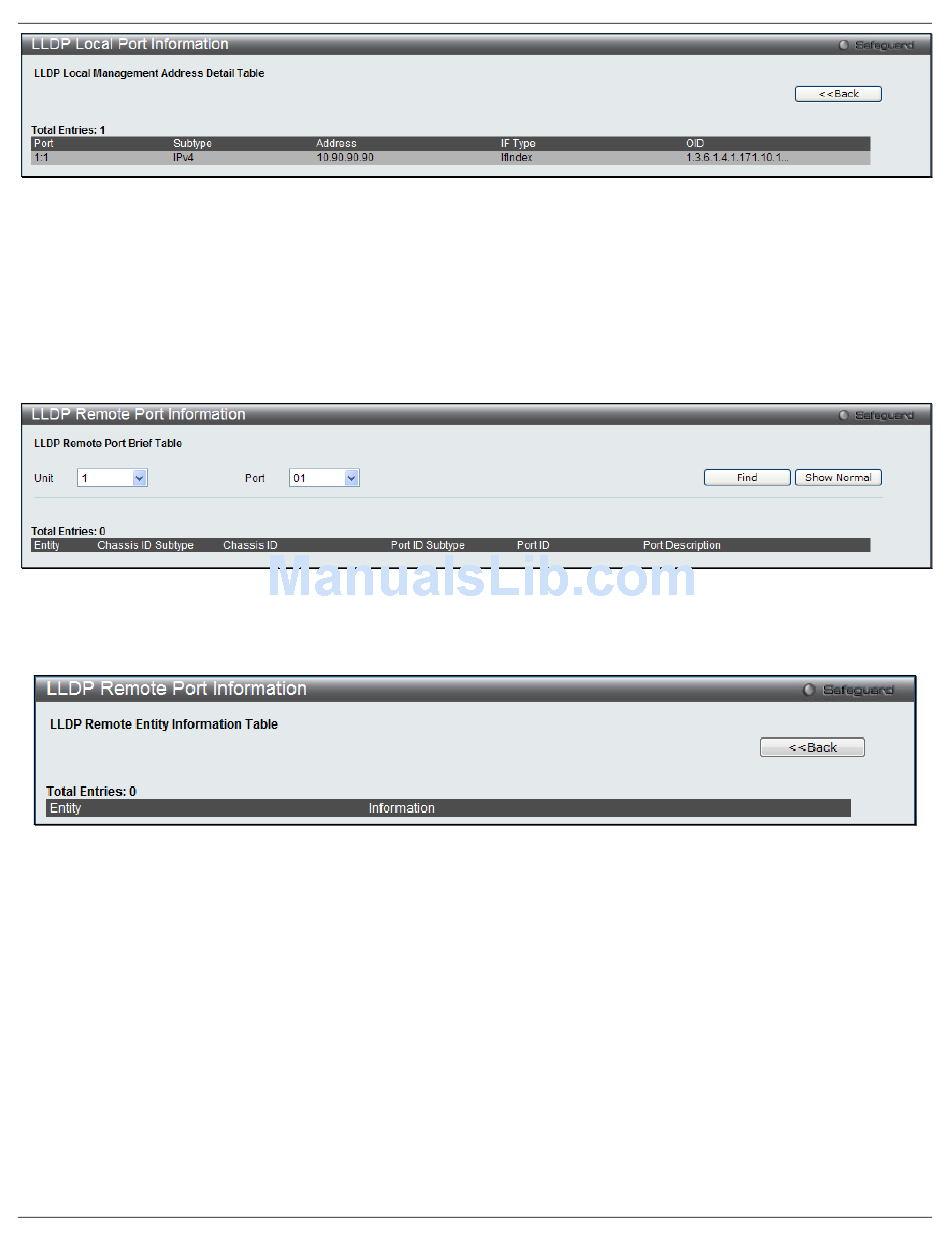

Figure 4-91 LLDP Remote Port Information window
Select a Port number and click the Find button to locate a specific entry.
To view the normal LLDP Remote Port information page per port, click the Show Normal button.
Figure 4-92 LLDP Remote Port Information – Show Normal window
Click the <<Back button to return to the previous page.

NLB FDB Settings

The Switch supports Network Load Balancing (NLB). This is a MAC forwarding control for supporting the Microsoft
server load balancing application where multiple servers can share the same IP address and MAC address. The
requests from clients will be forwarded to all servers, but will only be processed by one of them. In multicast mode, the
client uses a multicast MAC address as the destination MAC to reach the server. Regardless of the mode, the
destination MAC is the shared MAC. The server uses its own MAC address (rather than the shared MAC) as the
source MAC address of the reply packet. The NLB multicast FDB entry will be mutually exclusive with the L2 multicast
entry.
To view this window, click L2 Features > NLB FDB Settings, as shown below.
