Stp Instance Settings - D-Link xStack Reference Manual

xStack® DGS-3120 Series Layer 2 Stackable Managed Switch Web UI Reference Guide
The fields that can be configured are described below:
Parameter
Configuration Name
Revision Level (0-65535)
MSTI ID
Type
VID List (1-4094)
Click the Apply button to accept the changes made for each individual section.
Click the Edit button to re-configure the specific entry.
Click the Delete button to remove the specific entry.

STP Instance Settings

This window displays MSTIs currently set on the Switch and allows users to change the Priority of the MSTIs.
To view the following window, click L2 Features > Spanning Tree > STP Instance Settings, as show below:

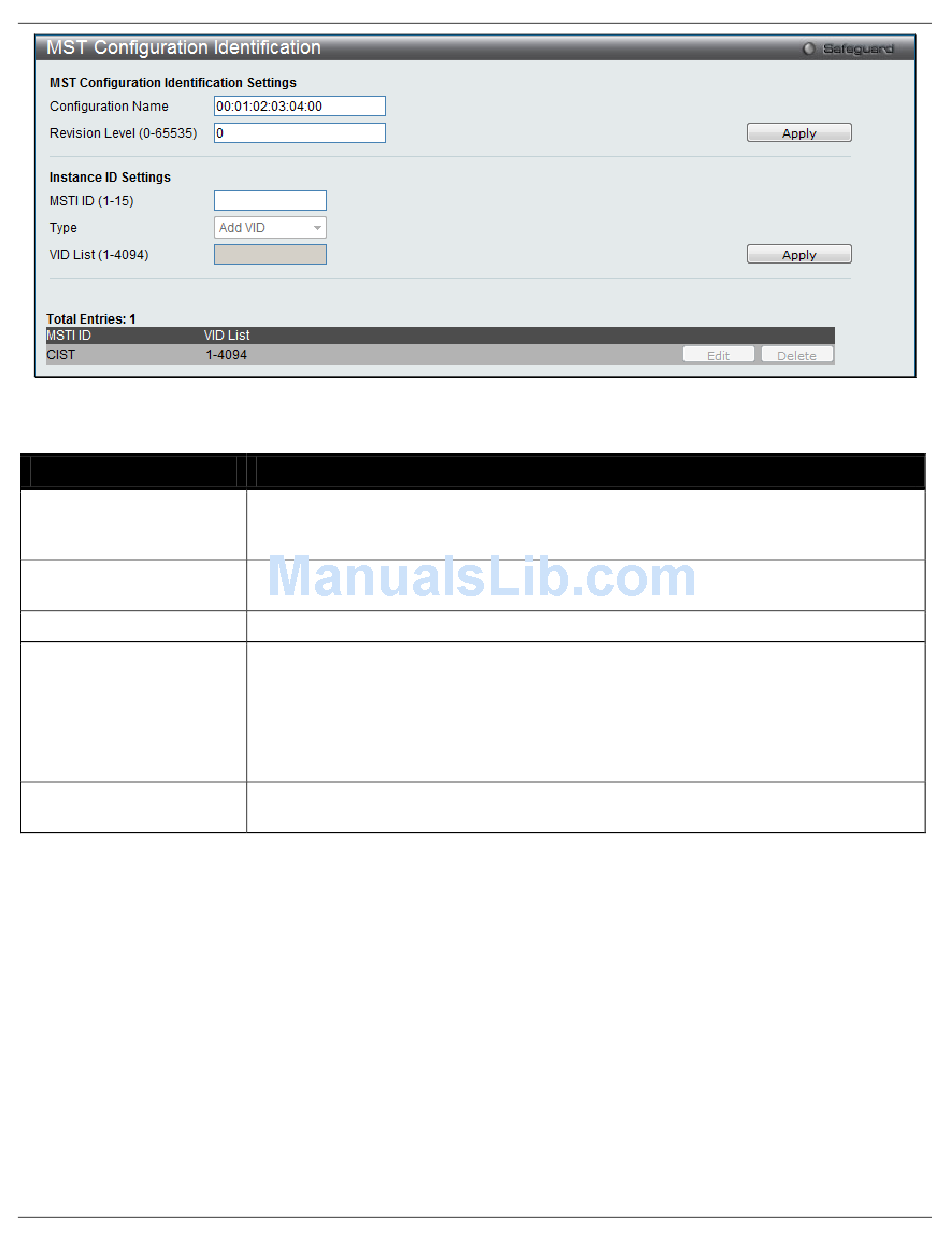

Figure 4-27 MST Configuration Identification window
Description
This name uniquely identifies the MSTI (Multiple Spanning Tree Instance). If a
Configuration Name is not set, this field will show the MAC address to the device
running MSTP.
This value, along with the Configuration Name, identifies the MSTP region configured
on the Switch.
Enter a number between 1 and 15 to set a new MSTI on the Switch.
This field allows the user to choose a desired method for altering the MSTI settings.
The user has two choices:
Add VID - Select this parameter to add VIDs to the MSTI ID, in conjunction with the
VID List parameter.
Remove VID - Select this parameter to remove VIDs from the MSTI ID, in conjunction
with the VID List parameter.
This field is used to specify the VID range from configured VLANs set on the Switch.
Supported VIDs on the Switch range from ID number 1 to 4094.
