xStack® DGS-3120 Series Layer 2 Stackable Managed Switch Web UI Reference Guide
Counter
Port
Port Group ID
Port Group Name
VLAN Name
VLAN ID
Click the Apply button to accept the changes made.
Click the <<Back button to discard the changes made and return to the previous page.
After clicking the Show Details button in the Access Rule List, the following page will appear:

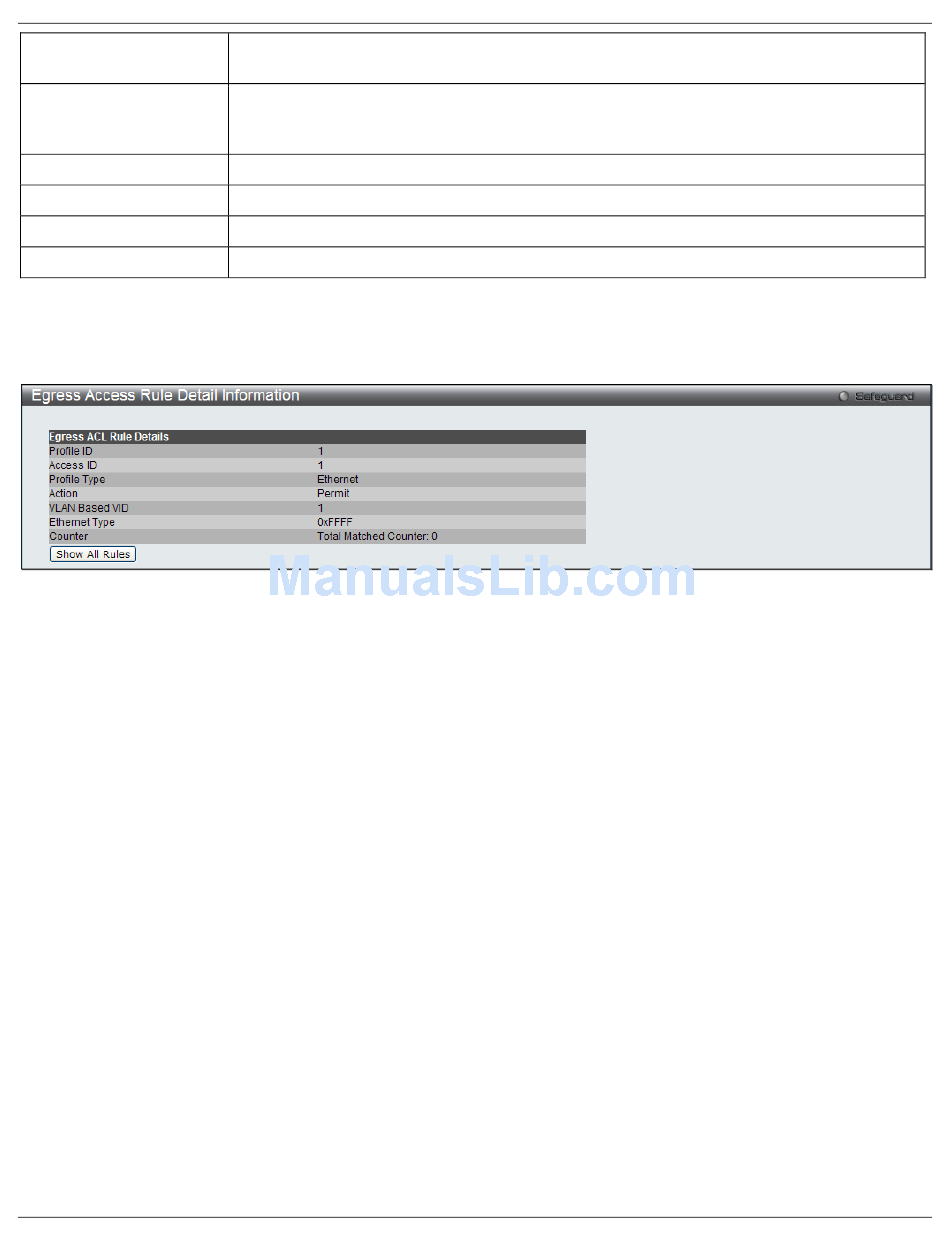

Figure 7-52 Egress Access Rule Detail Information window (Ethernet ACL)
Click the Show All Rules button to navigate back to the Access Rule List.
Adding an IPv4 ACL Profile
The window shown below is the Add Egress ACL Profile window for IPv4. To use specific filtering masks in this egress
ACL profile, click the packet filtering mask field to highlight it red. This will add more filed to the mask.
After clicking the Add ACL Profile button, the following page will appear:
Here the user can select the counter. By checking the counter, the administrator can see
how many times that the rule was hit.
When a range of ports is to be configured, the Auto Assign check box MUST be ticked in
the Access ID field of this window. If not, the user will be presented with an error
message and the access rule will not be configured.
Specify the port group ID to apply to the access rule.
Specify the port group name to apply to the access rule.
Specify the VLAN name to apply to the access rule.
Specify the VLAN ID to apply to the access rule.
