IPv4 Multicast Profile Settings

Users can add a profile to which multicast address(s) reports are to be received on specified ports on the Switch. This
function will therefore limit the number of reports received and the number of multicast groups configured on the Switch.
The user may set an IPv4 Multicast address or range of IPv4 Multicast addresses to accept reports (Permit) or deny
reports (Deny) coming into the specified switch ports.
To view the following window, click L2 Features > Multicast Filtering > IPv4 Multicast Filtering > IPv4 Multicast
Profile Settings, as show below:
The fields that can be configured are described below:
Parameter
Profile ID
Profile Name
Click the Add button to add a new entry based on the information entered.
Click the Find button to locate a specific entry based on the information entered.
Click the Delete All button to remove all the entries listed.
Click the Group List link to configure the multicast address group list settings for the specific entry.
Click the Edit button to re-configure the specific entry.
Click the Delete button to remove the specific entry.
After clicking the Group List
The fields that can be configured are described below:
Parameter
Profile ID

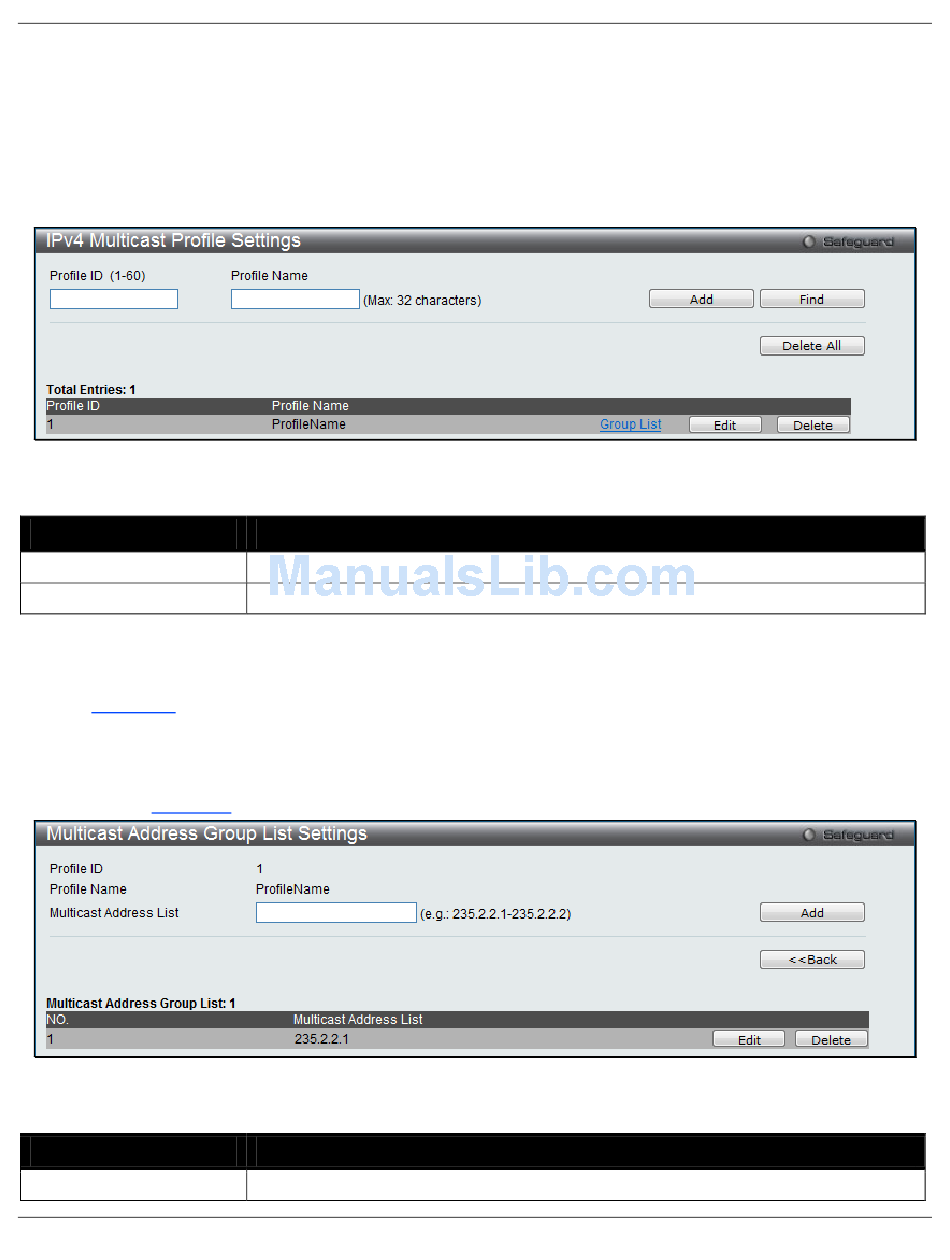

Figure 4-72 IPv4 Multicast Profile Settings window
Description
Enter a Profile ID between 1 and 60.
Enter a name for the IP Multicast Profile.
link, the following page will appear:
Figure 4-73 Multicast Address Group List Settings window
Description
Display the profile ID.
