xStack® DGS-3120 Series Layer 2 Stackable Managed Switch Web UI Reference Guide
IPv6 Class
IPv6 Flow Label
IPv6 Source Mask
IPv6 Destination Mask
Click the Select button to select a CPU ACL type. Click the Create button to create a profile.
Click the <<Back button to discard the changes made and return to the previous page.
After clicking the Show Details button, the following page will appear:
Click the Show All Profiles button to navigate back to the CPU ACL Profile List Page.
After clicking the Add/View Rules button, the following page will appear:
Click the Add Rule button to create a new CPU ACL rule in this profile.
Click the <<Back button to return to the previous page.
Click the Show Details button to view more information about the specific rule created.
Click the Delete Rules button to remove the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
After clicking the Add Rule button, the following page will appear:
header.
Checking this field will instruct the Switch to examine the class field of the IPv6
header. This class field is a part of the packet header that is similar to the Type of
Service (ToS) or Precedence bits field in IPv4.
Checking this field will instruct the Switch to examine the flow label field of the IPv6
header. This flow label field is used by a source to label sequences of packets such
as non-default quality of service or real time service packets.
The user may specify an IP address mask for the source IPv6 address by checking
the corresponding box and entering the IP address mask.
The user may specify an IP address mask for the destination IPv6 address by
checking the corresponding box and entering the IP address mask.

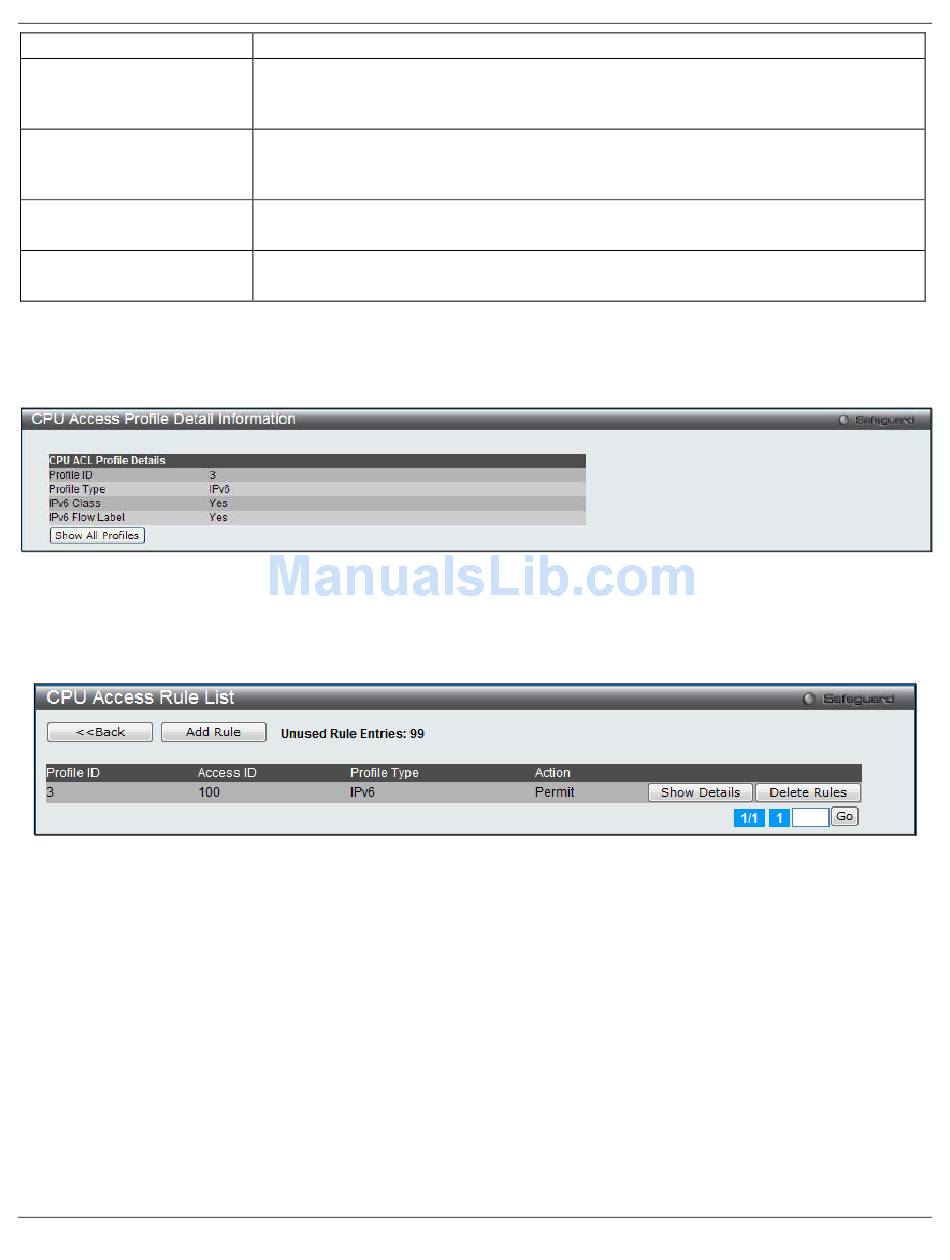

Figure 7-35 CPU Access Profile Detail Information (IPv6 ACL)
Figure 7-36 CPU Access Rule List (IPv6 ACL)
