xStack® DGS-3120 Series Layer 2 Stackable Managed Switch Web UI Reference Guide
Priority (0-7)
Replace DSCP (0-63)
Time Range Name
Counter
Ports
Port Group ID
Port Group Name
VLAN Name
VLAN ID
Click the Apply button to accept the changes made.
Click the <<Back button to discard the changes made and return to the previous page.
After clicking the Show Details button in the Access Rule List, the following page will appear:
Click the Show All Rules button to navigate back to the Access Rule List.

Egress ACL Flow Meter (EI Mode Only)

This window is used to configure the packet flow-based metering based on an egress access profile and rule.
To view this window, click ACL > Egress ACL Flow Meter as shown below:
Tick the corresponding check box to re-write the 802.1p default priority of a packet to the
value entered in the Priority field, which meets the criteria specified previously in this
command, before forwarding it on to the specified CoS queue. Otherwise, a packet will
have its incoming 802.1p user priority re-written to its original value before being
forwarded by the Switch.
For more information on priority queues, CoS queues and mapping for 802.1p, see the
QoS section of this manual.
Select this option to instruct the Switch to replace the DSCP value (in a packet that
meets the selected criteria) with the value entered in the adjacent field. When an ACL
rule is added to change both the priority and DSCP of an IPv6 packet, only one of them
can be modified due to a chip limitation. Currently the priority is changed when both the
priority and DSCP are set to be modified.
Tick the check box and enter the name of the Time Range settings that has been
previously configured in the Time Range Settings window. This will set specific times
when this access rule will be implemented on the Switch.
Here the user can select the counter. By checking the counter, the administrator can see
how many times that the rule was hit.
When a range of ports is to be configured, the Auto Assign check box MUST be ticked in
the Access ID field of this window. If not, the user will be presented with an error
message and the access rule will not be configured. Ticking the All Ports check box will
denote all ports on the Switch.
Specify the port group ID to apply to the access rule.
Specify the port group name to apply to the access rule.
Specify the VLAN name to apply to the access rule.
Specify the VLAN ID to apply to the access rule.

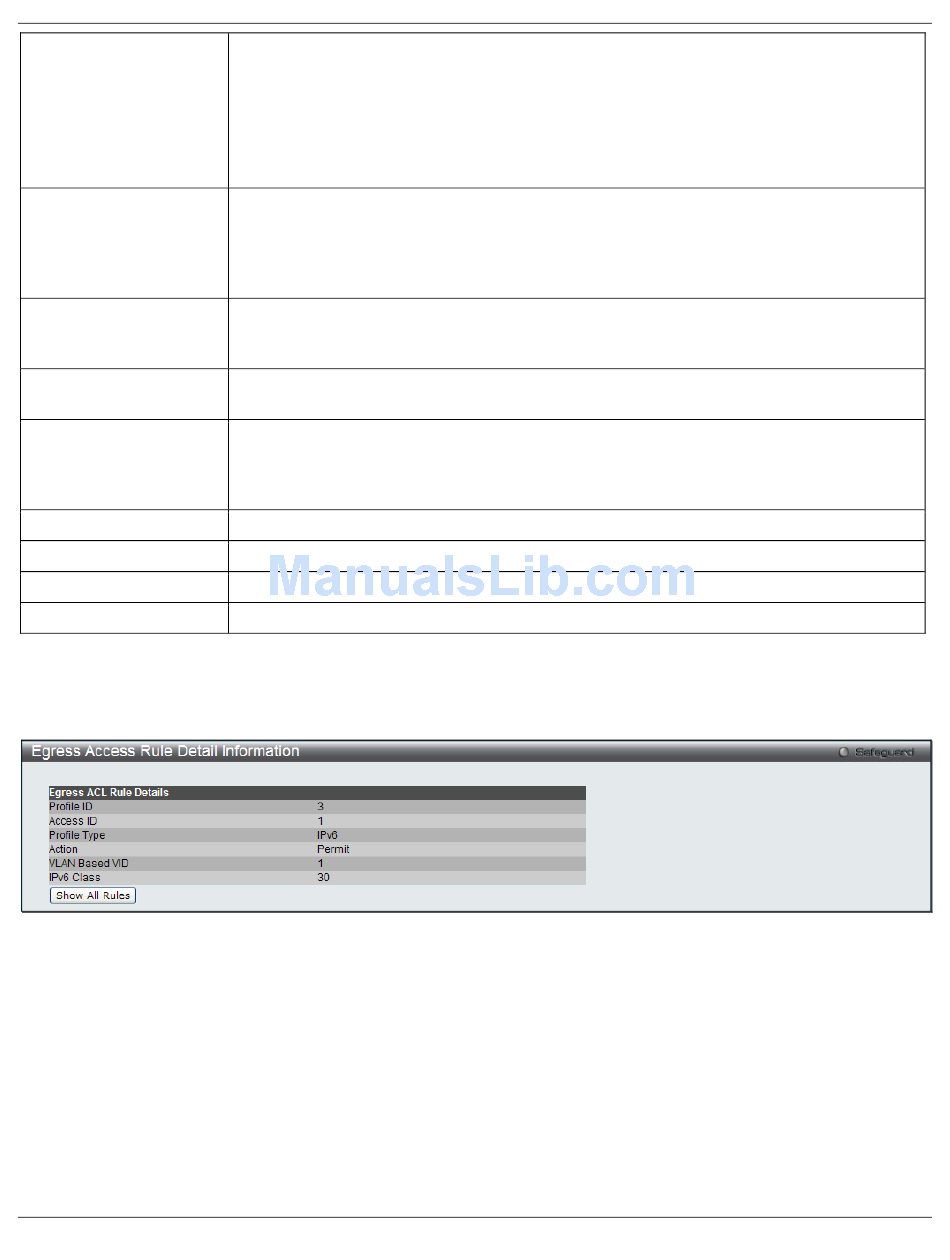

Figure 7-62 Egress Access Rule Detail Information (IPv6 ACL)
