Removing a hard disk drive from the optical drive bay

1. Disconnect power from the workstation (see
2. Remove the side access panel (see
3. Remove the airflow guide (see
4. Remove the expansion card support (see

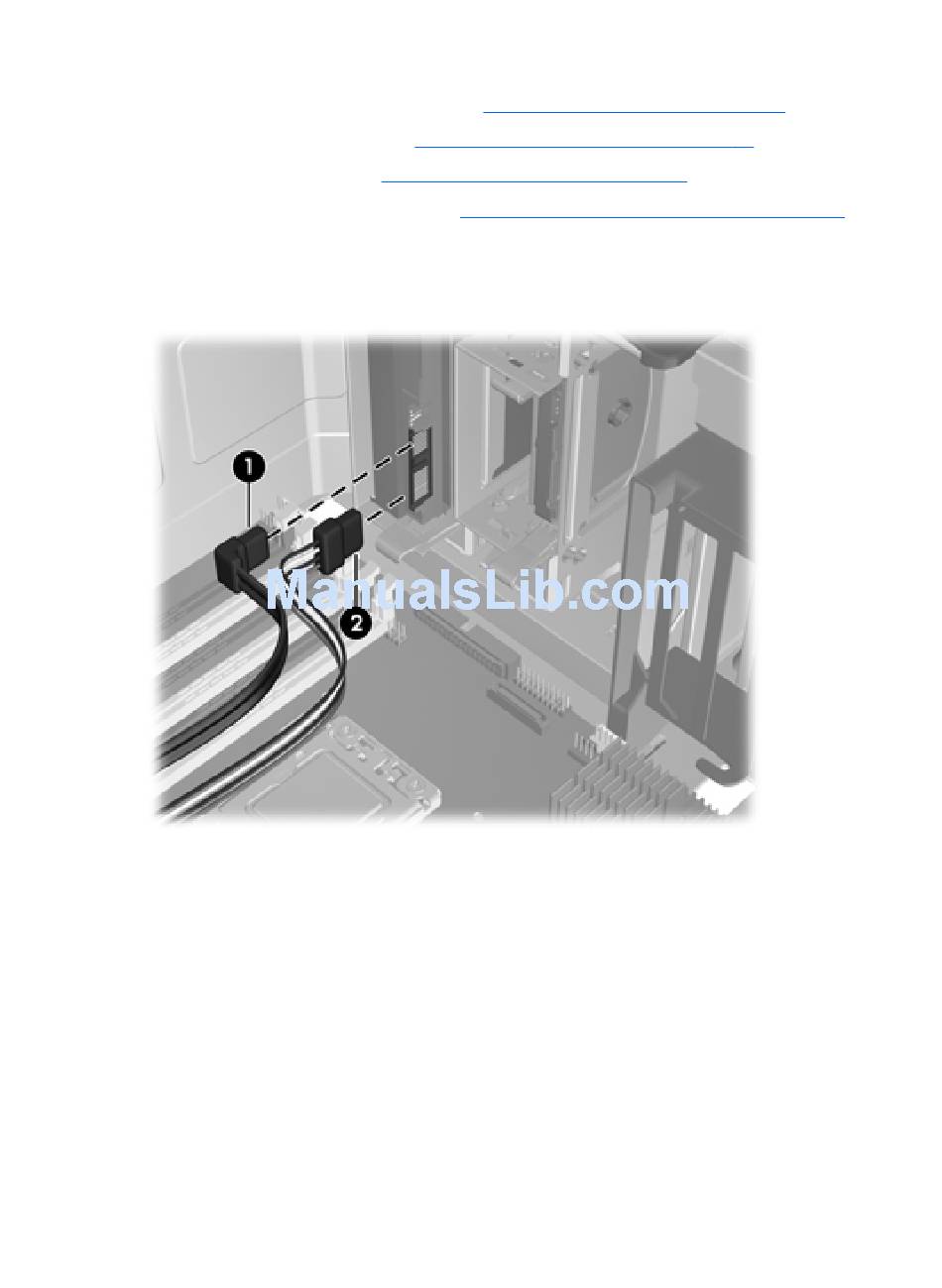

5. Disconnect the power and data cables from the rear of the hard drive as shown in the following
figure.
Figure 5-59
