Installing a liquid cooling solution

1. Disconnect power from the system
access panel
2. Remove the expansion card support (see
3. Remove the airflow guide (see
4.
Remove the rear system fan assembly from the chassis (see
on page
5. Remove the CPU heatsinks (see
6.

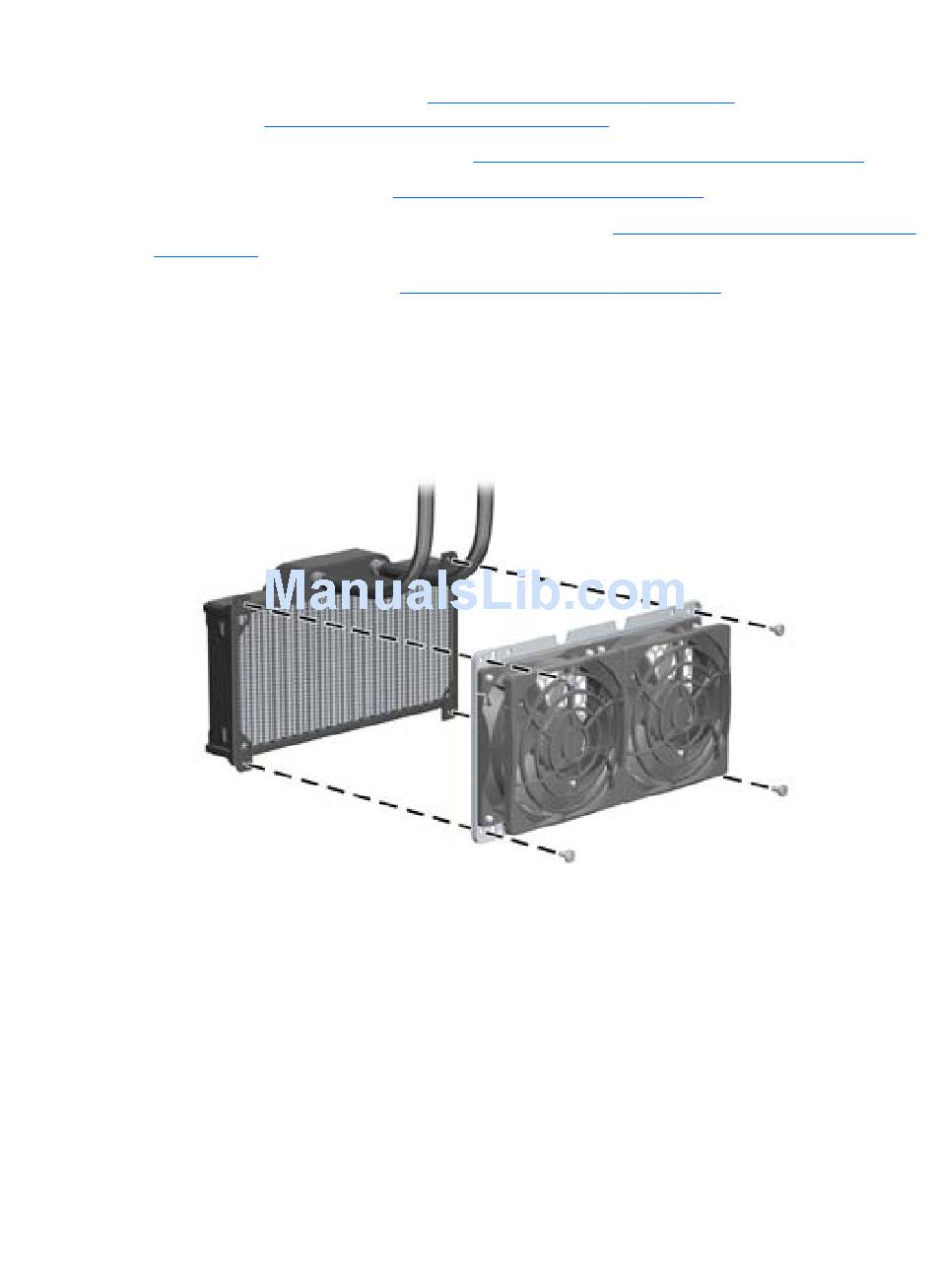

Attach the LCS radiator to the rear system fan assembly.
a. Align the radiator with the holes in the rear system fan mounting plate.
b. Fasten the radiator to the rear system fan mounting plate with four screws as shown in the
following figure.
Figure 5-110
ENWW
(Removing the side access panel on page
Removing the airflow guide on page
146). Set aside the mounting screws for later reuse.
Removing the CPU heatsink on page
Attaching the LCS radiator
(Predisassembly procedures on page
79).
Removing the expansion card support on page
Removing and installing components
77) and remove the side
80).
Removing the rear system fan assembly
199).
82).
