7.
Angle the card into the PCI card guide. Align the PCIe card keyway with the slot key, and then
firmly seat the card in the slot (1), as shown in the following figure.
If required by the card, connect the auxiliary power cable to the card, or other cables or
accessories described in the card instructions. (See
Removing the expansion card guide/front fan
holder on page 141
to find the storage location of the auxiliary power cables.)

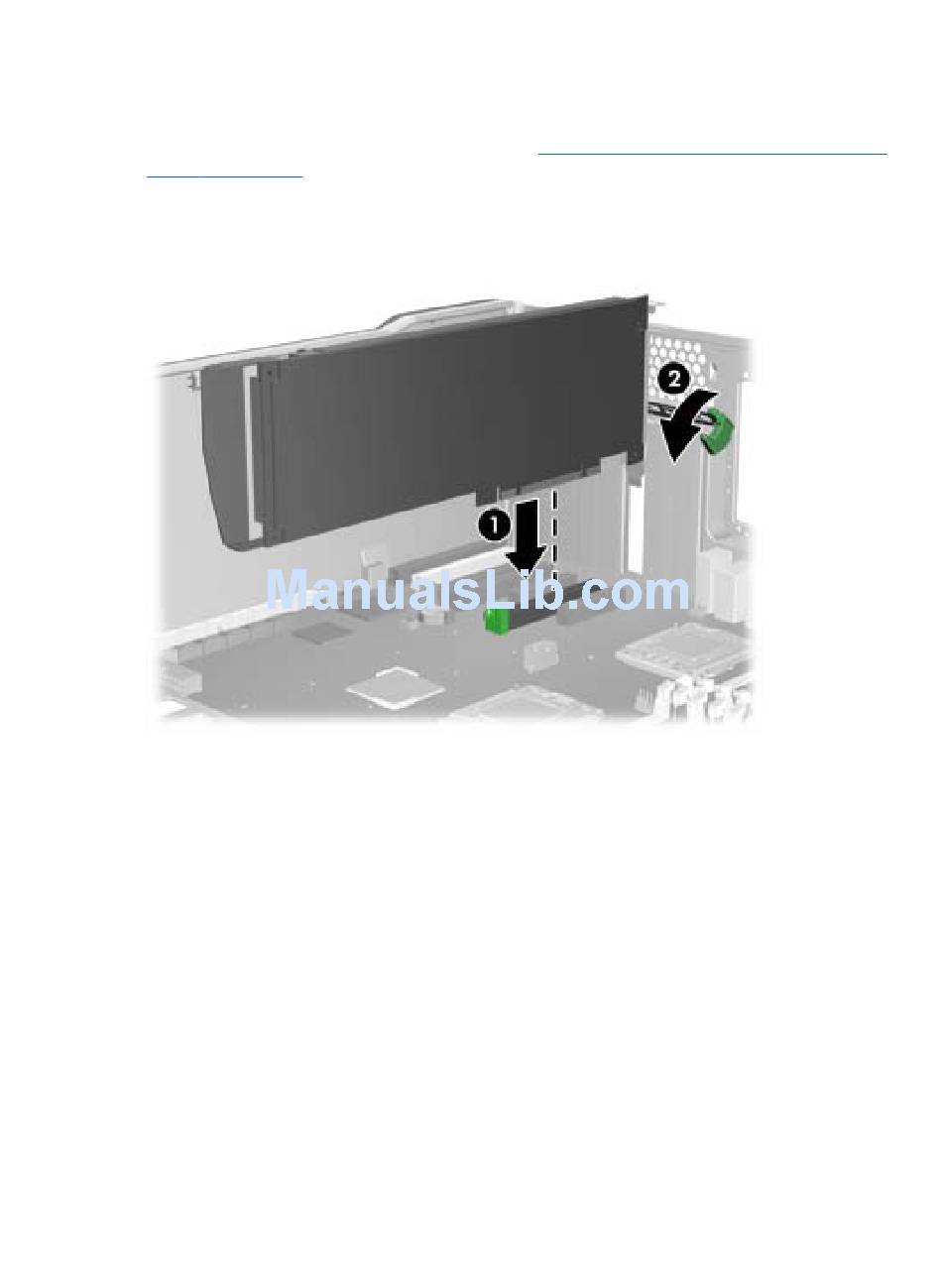

Figure 5-97
Installing a PCIe card
172
Chapter 5 Replacing components
ENWW
