6. Raise the rear retention clamp by lifting the metal bar or the green lever (1), as shown in the
following figure. If necessary, disconnect the auxiliary power cable (not illustrated).

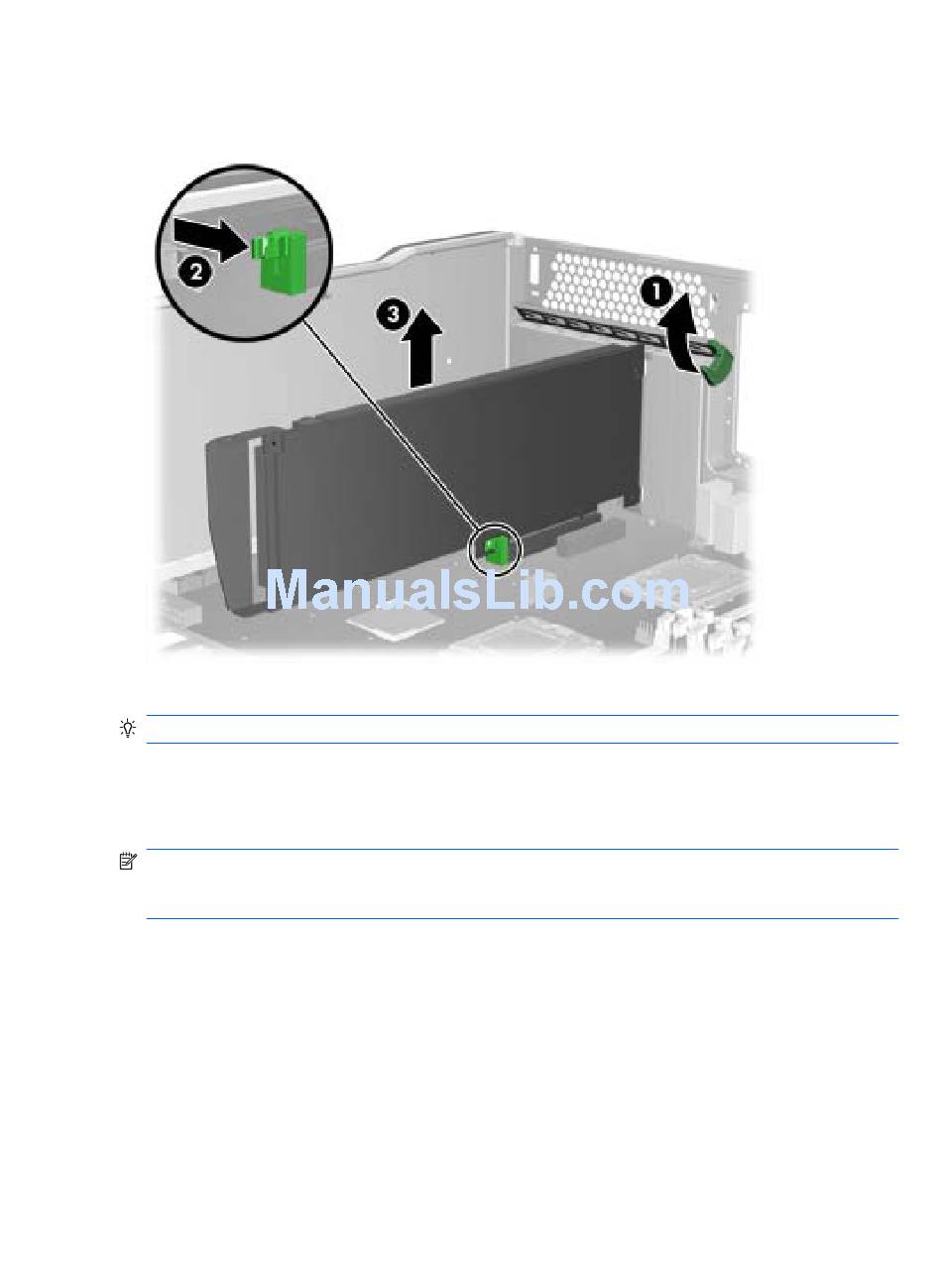

Figure 5-95
7. Release the PCIe card latch (2), and then carefully lift the card from the chassis (3).
TIP:
8.
If you are removing a PCIe card without a release lever, lift the card out of the slot.
9. If you are not installing a PCIe card, install a PCI slot cover and close the expansion card retention
clamp. The retention clamp is secured by the expansion card support.
NOTE:
when closed. If the angle is greater than this, open the clamp and ensure that all cards are
properly seated and all the brackets are mated to the chassis, then re-close the clamp.
170 Chapter 5 Replacing components
Removing a PCIe card
Store the card in an antistatic bag.
It is normal for the expansion card retention clamp to have a slight (5-10 degree) angle
