SoundPoint.IP.200W.Installation

This section provides basic installa-
tion instructions and information for
obtaining the best performance with the
SoundPoint IP 200W phone.
In order to take full advantage of the fea-
tures of the SoundPoint IP 200W, you
need to have the following in place:
• IP Network connection
• Internet Telephony Service Provider
subscription (to place IP calls).
• Analog telephone subscription
to place ordinary phone calls
(optional).

Connecting the Gateway

First, connect the network cable
to the LAN port on the gateway.
Next, plug the network cable into your
data network port (as shown on right).
Optional: To prepare the gateway
for analog telephony, connect the
telephone cable to the Line port on the
gateway and then to a telephone wall
outlet (as shown on right).

Connecting Gateway Power

Connect the gateway power adapter
to the "DC 9-20V" input jack (on
the gateway), and then connect the
adapter to an active power outlet (as
shown on right).

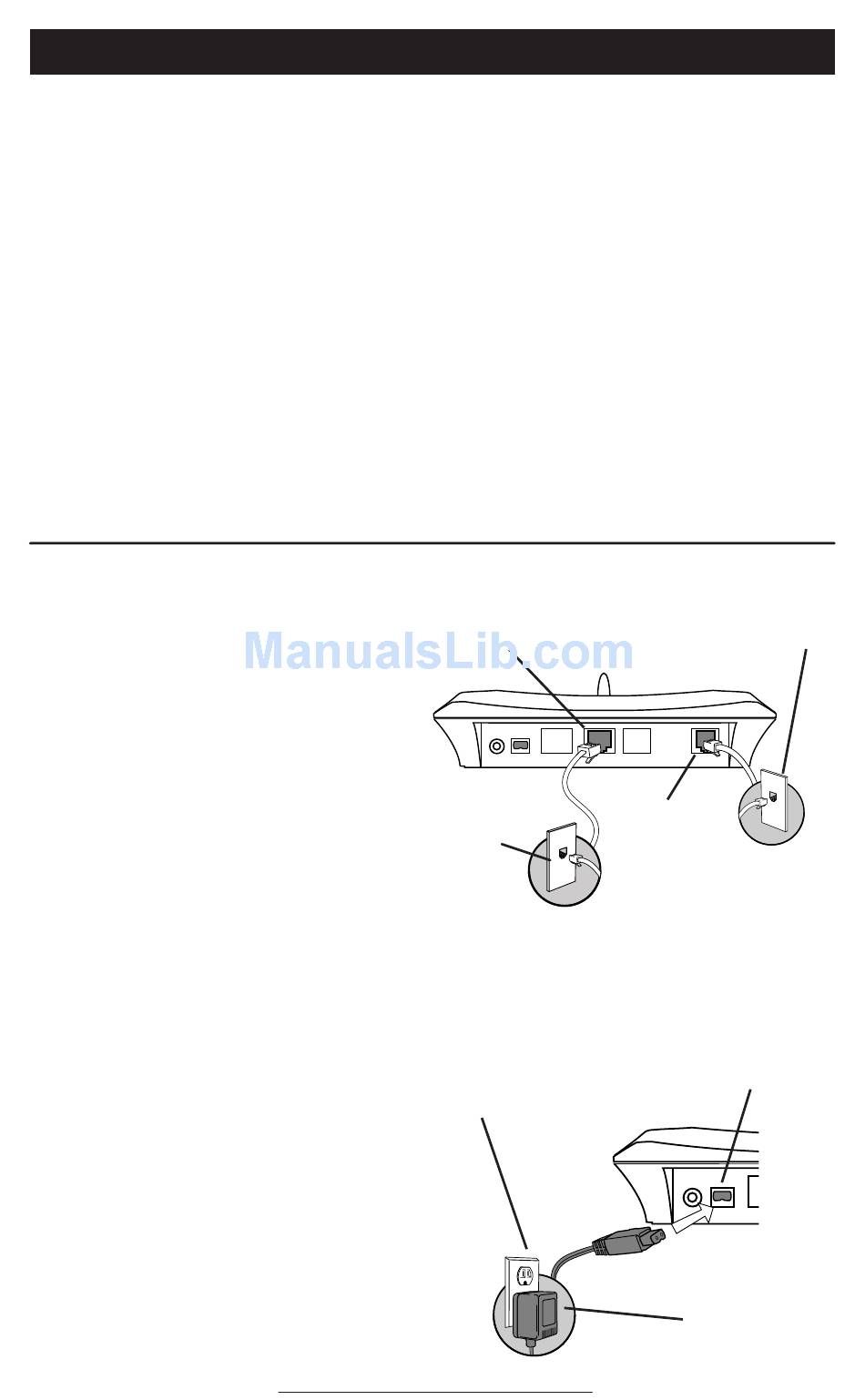

LAN Port
Reset DC 9-20V
Data
Network
Port
Power
Outlet
2
Telephone Line (Optional)
LAN Line
Line Port
DC 9-20V Input Jack
DC 9-20V
Reset
Gateway power
Adapter
LAN WAN Phone
