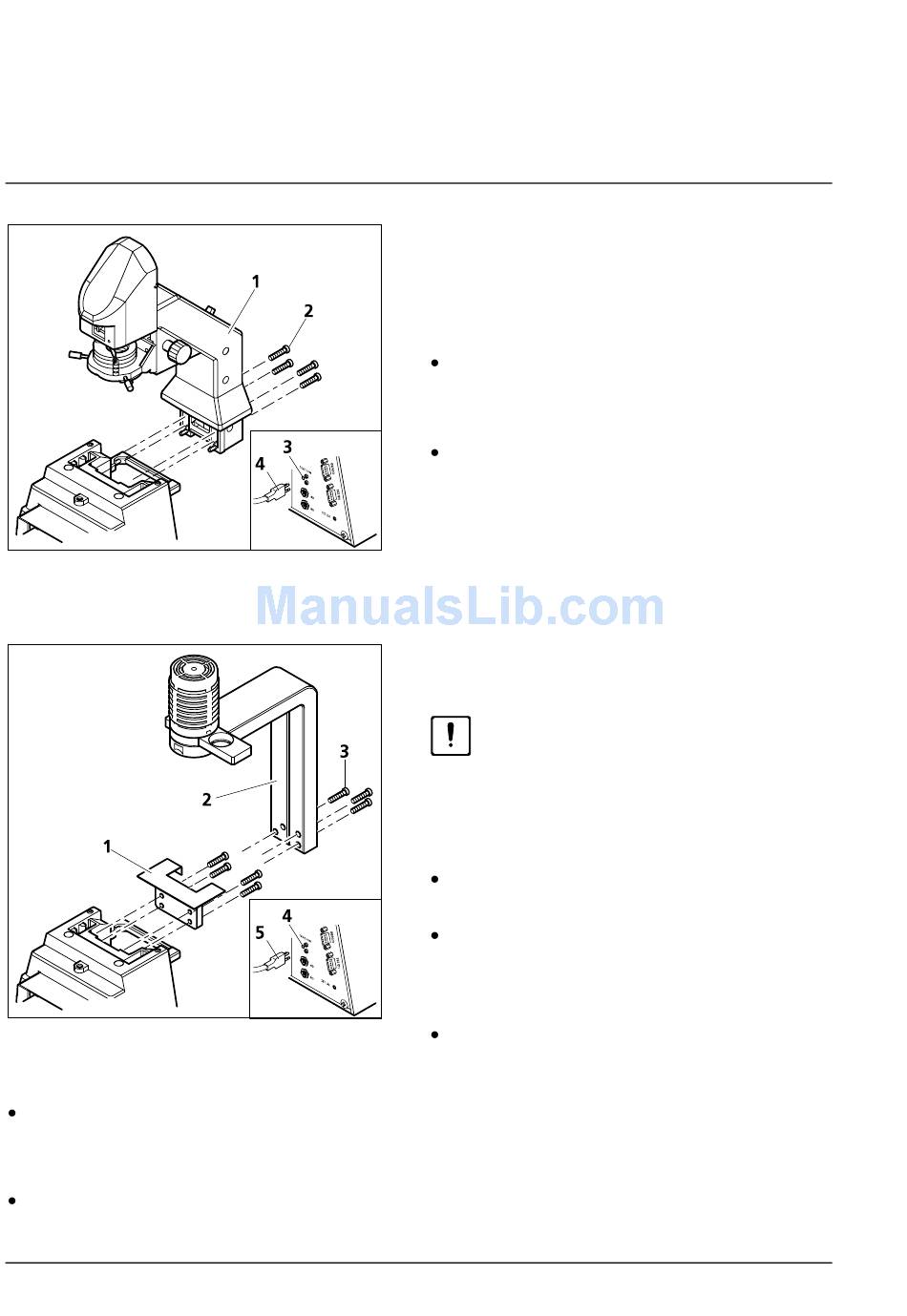

Fig. 2-5 Attachment of carrier for trans-
mitted-light illumination (100 W)
Fig. 2-6 Attachment of carrier for trans-
mitted-light illumination (30 W)
Attach centering pin of the carrier for transmitted-light illumination (30 W) (2-6/2) to the adapter
plate and tighten the three SW 4 hexagonal screws (2-6/3).
Alignment of the carrier (30 W) is not required.
Connect power supply plug of the carrier for transmitted-light illumination 30 W (2-6/5) to the
12 V / 100 W connector (2-6/4) on the rear of the stand.
2-8
START-UP

Attachment of transmitted-light illumination

2.3 Attachment of transmitted-light
illumination
2.3.1 Attachment of carrier for trans-
mitted-light illumination (100 W)
Attach carrier (2-5/1) to the relevant contact
surface on the rear of the stand and use the
SW 4 Allen key to tighten the four enclosed
hexagonal screws (2-5/2).
Connect plug (2-5/4) for the LCD display (if
available) to the SB socket (2-5/3) at the
instrument rear.
Alignment of the carrier (100 W) is not required.
2.3.2 Attachment of carrier for trans-
mitted-light illumination (30 W)
Before attachment of the carrier for
transmitted-light illumination 30 W
(451380-0000-000) to the stand, the
control electronics included in the
stand must be changed by Zeiss
service staff.
Remove the HAL 100 and N HBO 103
illuminators from the microscope.
If required, remove carrier (100 W) by
loosening the four hexagonal screws (SW 4)
and disconnect plug of the LCD display from
the SB socket.
Screw adapter plate (000000-1005-842, 2-6/1)
onto the contact surface on the stand rear
using the four hexagonal screws.
