Axiovert 200
1 On / Off switch
2 Objective nosepiece
3 Compartment for slider
Analyzer
4 Setting wheel for Optovar turret
5 Reflector turret
6 Focusing drive coarse / fine
7 HAL on / off switch
8 Toggle switch for illumination
intensity
9 Turning or sliding knob for
vis / doc beam splitting

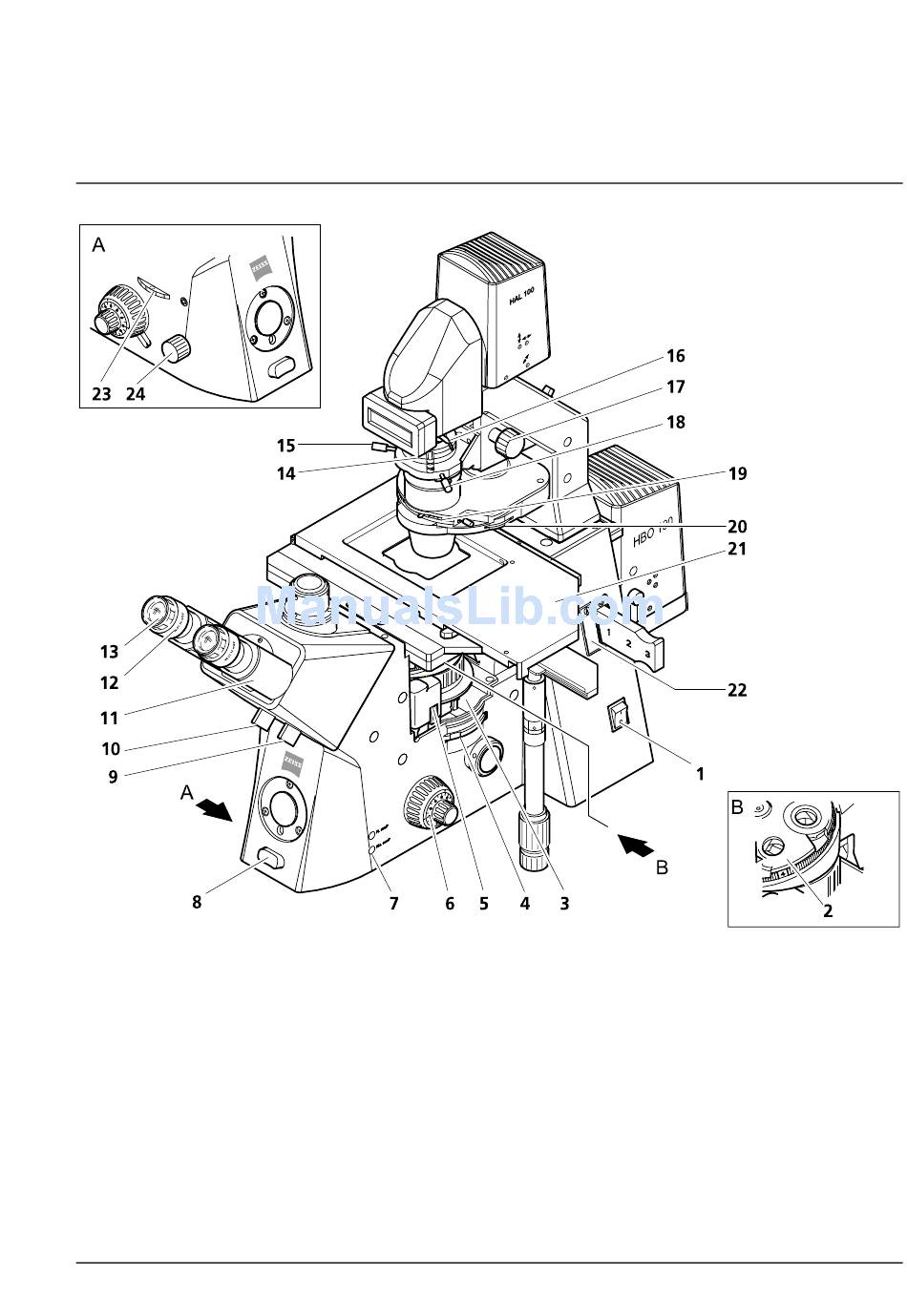

Fig. 0-2 Axiovert 200
B 40-080 e 03/01
INTRODUCTION
Microscopy in transmitted-light brightfield in a few steps
10 Turning or sliding knob for
Bertrand lens and manual shutter
11 Binocular tube component
12 Setting ring of the eyepiece
13 Eyepiece
14 Polarizer D with 2-position filter
changer
15 Centering screw for condenser
16 Setting lever for luminous-field
diaphragm
17 Setting knob for vertical
adjustment of the condenser
18 Centering screw for condenser
19 Turret disk of condenser
20 Setting wheel for aperture
diaphragm on the condenser
21 Microscope stage
22 Compartment for aperture
diaphragm slider
23 Setting wheel for Sideport
24 Setting knob for Frontport /
Baseport
