Attachment Of Binocular (Photo) Tube; Inserting The Eyepieces And The Centering Telescope - Zeiss Axiovert 200 Operating Manual

Carl Zeiss

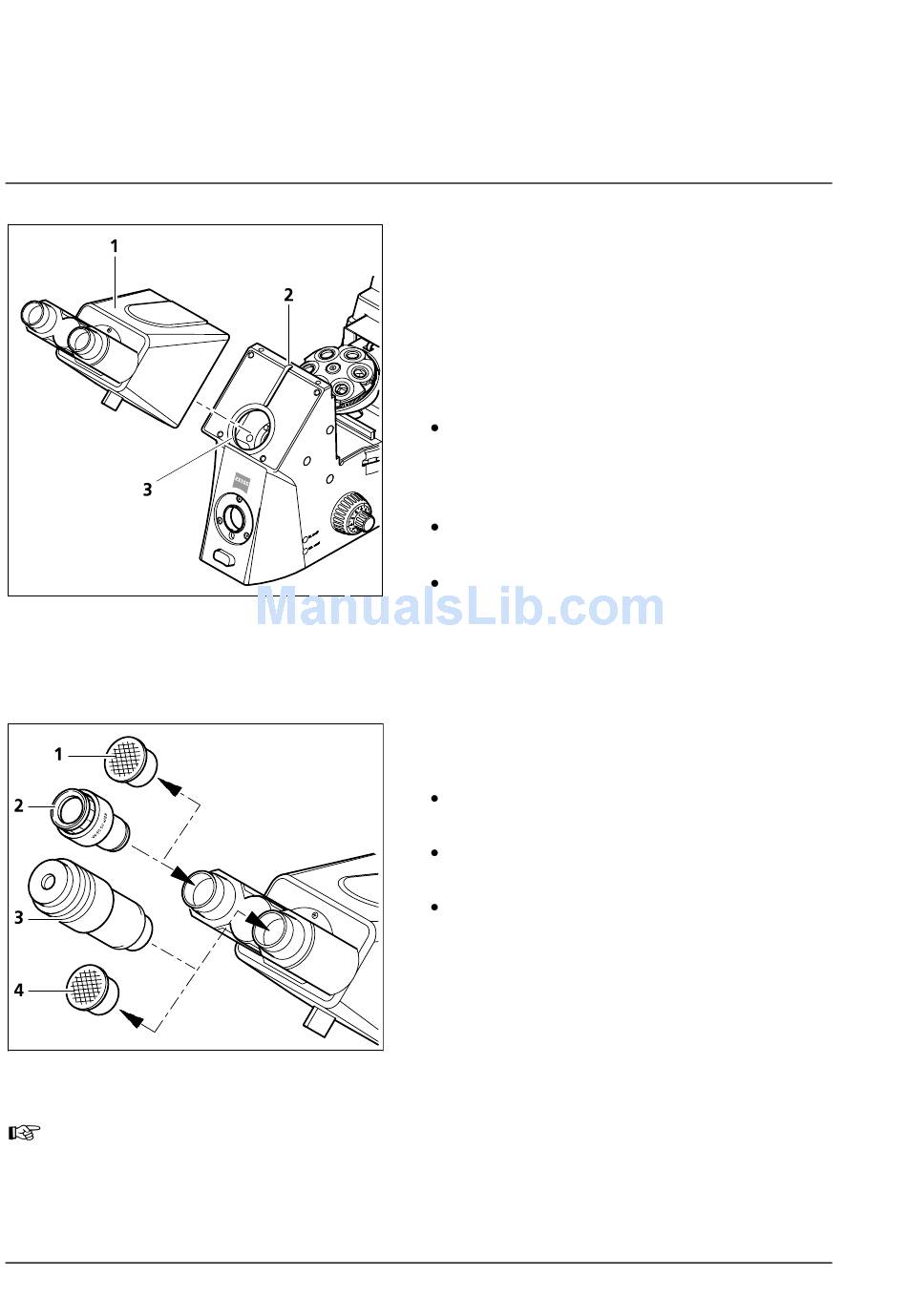

Fig. 2-2 Attachment of binocular tube
Fig. 2-3 Inserting the eyepieces
The eyepieces W-PL 10x/23 Br. foc. can be attached to all tubes.
2-6
START-UP
Attachment of binocular (photo)tube
2.2
All the binocular tubes listed in the microscope
configuration can be attached to the Axiovert 200
and Axiovert 200 M as described below.
Proceed as follows to attach a tube for the first
time, or to replace a tube:
2.2.1
Attachment of binocular (photo)
tube
Loosen hexagonal screw (2-2/2) using the SW3
ball-headed screwdriver. If a tube is to be
replaced, hold it and remove it in forward
direction.
Remove the dust cap from the tube lens of the
tube to be attached.
Insert dovetail of the binocular tube (2-2/1)
into the stand mount (2-2/3), align it with the
stand and tighten hexagonal screw (2-2/2)
using the ball-headed screwdriver.
Inserting the eyepieces
centering telescope
Remove both dust protection caps (2-3/1 and
4) from the binocular tube.
Remove both eyepieces (2-3/2) from the cases
and insert them in the binocular tube until stop.
The centering telescope (2-3/3), which is used
to view the aperture and phase stops and to
center the phase stops, can be inserted in one
of the tubes instead of an eyepiece. The
variable eyelens permits focusing on these
stops.
Axiovert 200
and the
B 40-080 e 03/01
