Hal 100 Halogen Illuminator; Change / Attachment Of The Hal 100 Halogen Lamp - Zeiss Axiovert 200 Operating Manual

Carl Zeiss

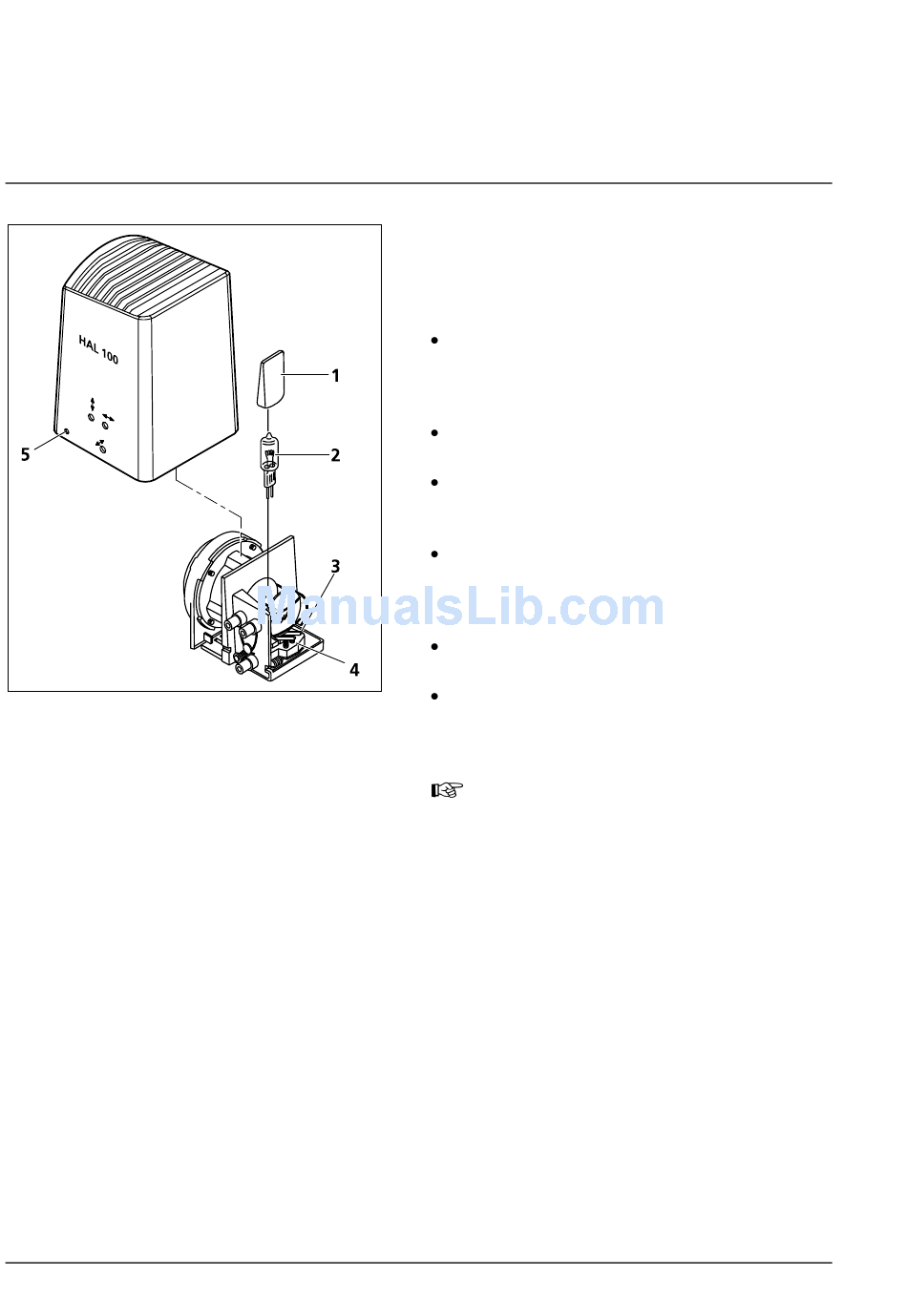

Fig. 2-25 Changing the halogen lamp.
2-20
START-UP
HAL 100 W halogen illuminator
2.12
2.12.1
Switch off the microscope, remove connector
(2-27/4) from the 12 V / 100 W socket (2-27/5)
and allow the illuminator to cool down for
approx. 15 minutes.
Loosen screw (2-25/5) until the lamp housing
can be removed in an upward direction.
Press both spring levers (2-25/3) downwards
and pull out the old halogen lamp in an upward
direction.
Press both spring levers downwards, insert new
lamp (2-25/2) with protection cap (2-25/1) in
lamp base (2-25/4), let go the spring lever and
pull off the protection cap.
Press spring lever briefly downwards again to
center the lamp.
Attach lamp housing again and
clamping screw (2-25/5).

HAL 100 halogen illuminator

Change / attachment of the HAL
100 halogen lamp
After the lamp change, the halogen
illuminator must be realigned.
Axiovert 200
tighten
B 40-080 e 03/01
