Attachment of heating stage

When the heating stage is used, the nosepiece must first be moved to the lowest position via
the focusing drive before a new objective is swung in, since otherwise collision between the
objective and the heating stage might occur.
2.5.5

Attachment of gliding stage Z

The gliding stages are attached in the same way as the heating stage by using three spacer disks.
Before attaching the gliding stage to the stand, the three support elements on the underside of the
gliding stage must be turned out.
Place spacer disks on the three contact points of the stand.
Place the heating stage on the contact area and tighten three hexagonal screws from above. Make
sure that the screws go through the drilled hole of the relevant spacer disk.
When the heating stage is used, the nosepiece must first be moved to the lowest position via
the focusing drive before a new objective is swung in, since otherwise collision between the
objective and the heating stage might occur.
After stage assembly, cover the drilled holes visible from above with the caps supplied.
Tilt carrier for transmitted-light illumination forward again to move it in its work position.
2-12
START-UP
Attachment of microscope stages
2.5.4

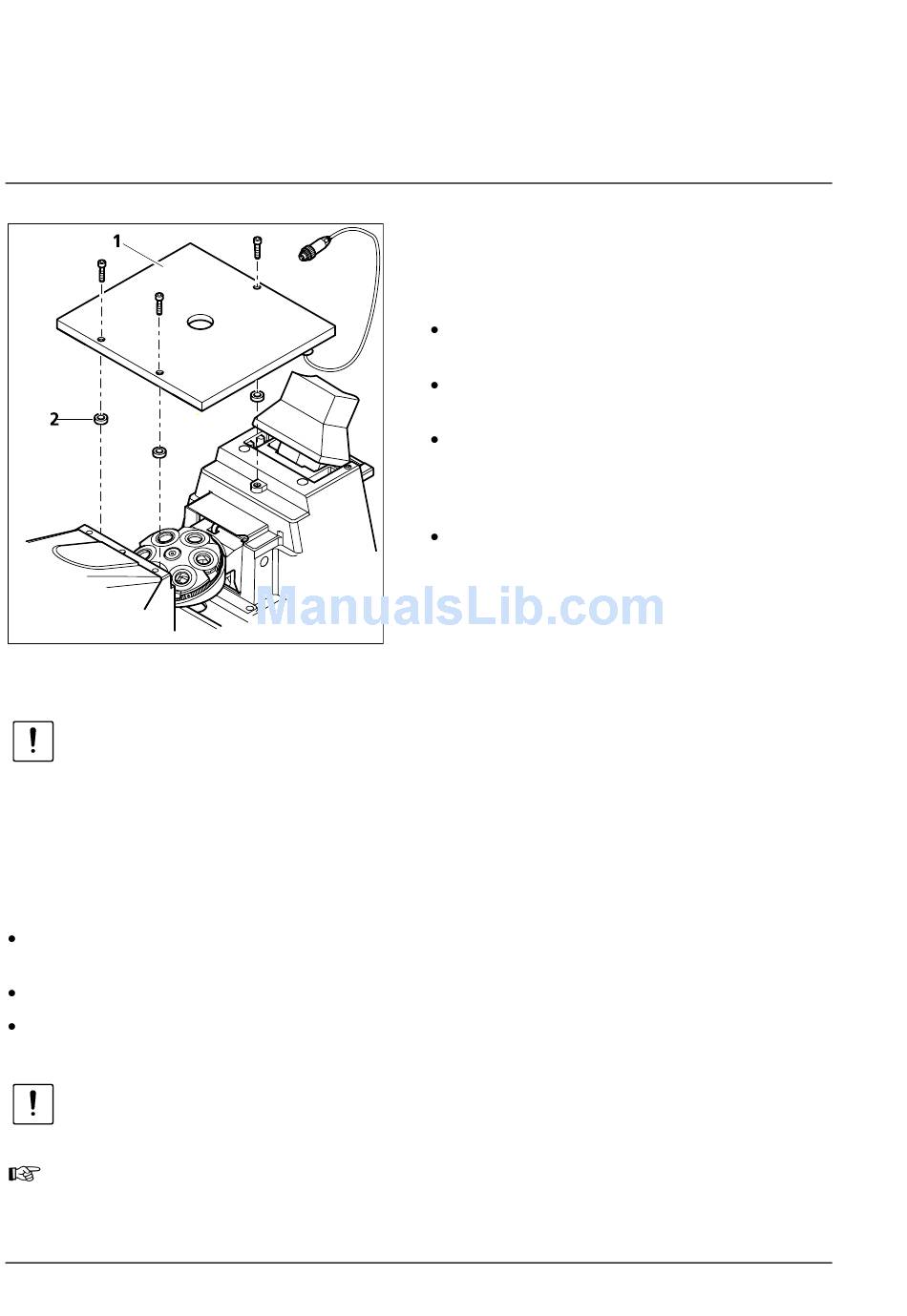

The heating stage is attached to the contact points
of the stand using three spacer disks.
Remove any available microscope stage and
additional mounting components.
Place spacer disks (2-12/2) on the three contact
points of the stand.
Place the heating stage (2-12/1) on the contact
area and tighten three hexagonal screws from
above. Make sure that the screws go through
the drilled hole of the relevant spacer disk.
Then connect the instrument to the power
supply as described in the separate operating
manual.

Attachment of heating stage
