If required, the above settings for coarse adjustment of the N HBO 103 illuminator can be
performed repeatedly. During coarse adjustment of the focal spots, adjusting screws (2-32/1
and 2) marked red must not be changed, since they influence the reflector setting in the HBO
103 illuminator.

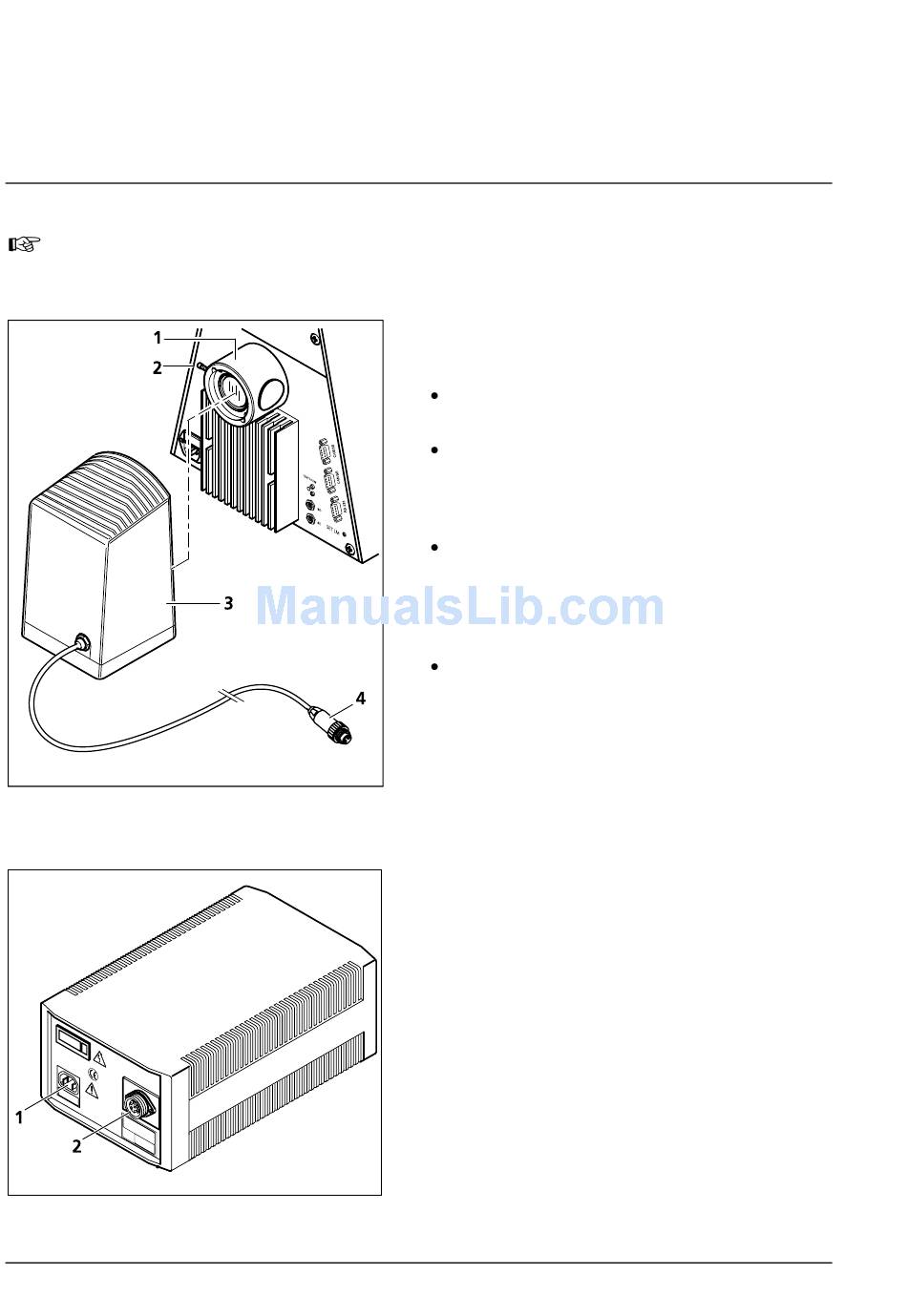

Fig. 2-35 Attachment of illuminator N
HBO 103
Fig. 2-36 Power supply ebq 100 dc
2-26
START-UP
Illuminator N HBO 103
2.13.3
Remove
(2-35/1).
Insert dovetail of lamp housing in reflected-light
tube (2-35/1) on the instrument rear and use
SW 3 ball-headed screwdriver to tighten
clamping screw (2-35/2).
Insert
illuminator (2-35/4) into the instrument socket
(2-36/2) of the power supply ebq 100 dc and
secure it with captive coupling ring (if not
already done so after adjustment).
Connect the line cable to the line socket
(2-36/1) of power supply ebq 100 dc first and
then to the line (if not already done so after
adjustment).
Attachment of
HBO 103
cover from reflected-light
multi-pin plug of
B 40-080 e 03/01
Axiovert 200
illuminator N
tube
the N HBO 103
