Reflector Turret; Attachment Of Reflector Turret; Equipment Of Reflector Turret - Zeiss Axiovert 200 Operating Manual

Axiovert 200
2.7

Reflector turret

2.7.1

Attachment of reflector turret

The manual reflector turret can be pushed into the
stand either from the right or from the left,
depending on which side is accessible.
motorized reflector turret can only be inserted
from the right, with the instrument being switched
off.
Insert equipped reflector turret (2-16/1) in the
mount provided below the nosepiece. Ensure
the correct stop position.
Tighten fixation screw (2-16/2) for the reflector
turret on the right side.
When changing the reflector turret, close the FL shutter to avoid stray light.
The protective lens available as an option can be inserted into the opening of the reflector turret
(2-16/3).
2.7.2

Equipment of reflector turret

The reflector turret is usually entirely equipped
when delivered from the factory. However,
equipment with the filter sets contained in the
reflector modules can also be easily performed by
the customers themselves.
Loosen fixation screw for reflector turret
(2-16/2) on the right side.
Pull reflector turret out of the stand and place it
on a suitable support (sturdy worktable).
Carefully press both holding catches (2-17/2) on
the right and left of the plastic hood away from
the pins in outward direction and remove
plastic hood in upward direction.
Insert reflector modules (2-17/1) in the relevant reflector position according to the filter combination
(see engraved number), starting with position 1 (emission filter lies at the bottom). First, insert the
reflector module into the two lower spring clamps at an angle from above using the holding elements
on the right and left, and then press the module against the upper spring clamps from the front until
the module click-stops into position.
B 40-080 e 03/01
START-UP

Reflector turret

The

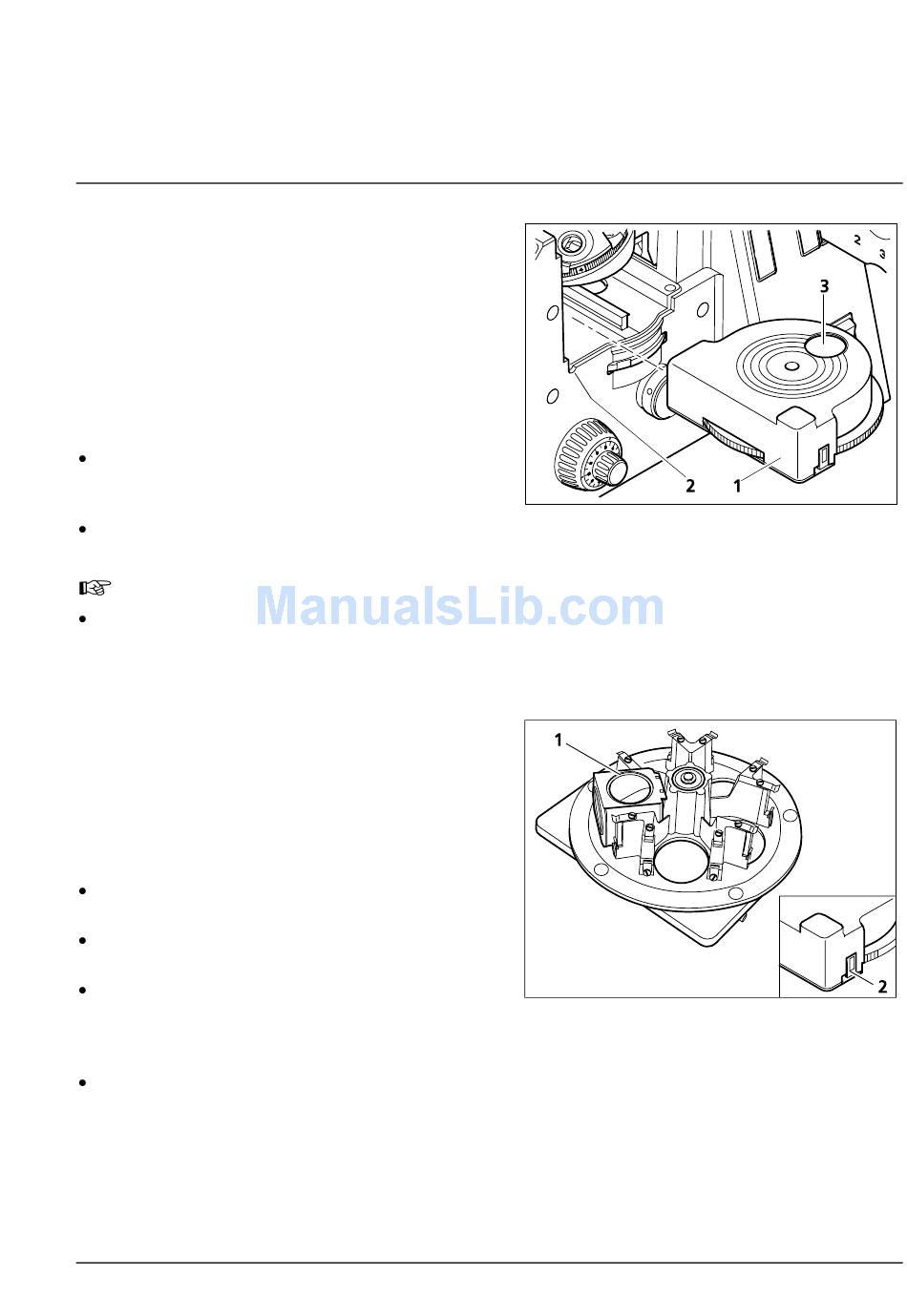

Fig. 2-16
