Axiovert 200
2.12.2 Coarse
illuminator
Loosen the clamping screw (2-27/2) and
remove the halogen illuminator from the carrier
for transmitted-light illumination.
Switch on the microscope.
Direct light beam against a projection area
(wall) approx. 3 m away.
Make sure not to look into the light
exit opening of the illuminator.
Use SW 3 ball-headed screwdriver to set
adjusting screw (2-26/3) in such a way that
both images of the lamp coil on the projection
area are defined as clearly as possible.
Then set adjusting screws (2-26/4 and 5) in
such a way that the lamp coils of one image
exactly fill the gaps of the reflector image
(2-26/1).
2.12.3

Attachment of halogen illuminator

If required, remove cover from the lamp mount
(2-27/2) in the carrier for transmitted-light
illumination.
Insert dovetail (2-27/2) of lamp housing (2-26/3)
in carrier (2-27/2) and use SW 3 ball-headed
screwdriver to tighten clamping screw (2-27/1).
Connect 3-pin lamp plug (2-27/4) to 3-pin 12 V
100 W socket (2-27/5) on the instrument rear.
B 40-080 e 03/01
HAL 100 W halogen illuminator
alignment of halogen
START-UP

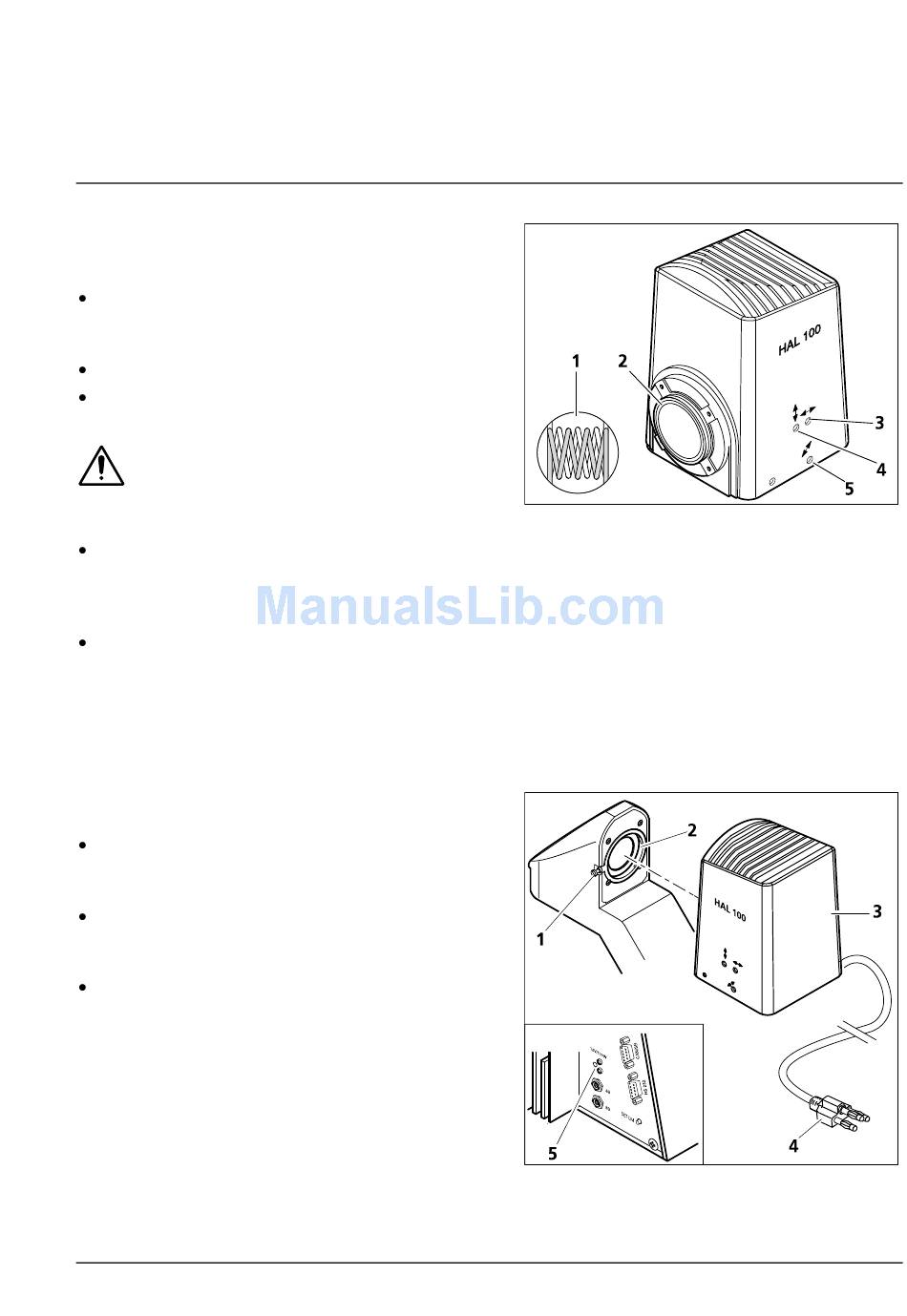

Fig. 2-26 Alignment of halogen illuminator
Fig. 2-27

Attachment of halogen illuminator

Carl Zeiss
2-21
