Axiovert 200
Nosepiece with objectives (3-1/2)
6-position nosepiece H, DIC (3-2/1) with
compartments for DIC slider (3-2/2) in all
objective positions.
Fast change of objectives through rotation of
the nosepiece via the setting ring (3-2/4).
When the heating stage is used, the
nosepiece must first be moved to the
lowest position via the focusing drive
before a new objective is swung in,
since otherwise collision between the
objective and the heating stage might
occur.
Compartment for analyzer slider
3-2/3)
For fixed analyzer slider with two dia. 32 mm
filter positions, or analyzer slider 30° for DIC.
Drive controls for XY-adjustment of the mechanical stage or the object guide if specimen stage
250x230 (3-1/4) is attached.
Upper drive knob:
Lower drive knob:
Setting wheel for Optovar turret (3-1/6)
Maximum of 3 switching positions with:
tube lens 1x;
optovar lens 1.6x;
optovar lens 2.5x
In the case of equipment with less than 3 lenses, the empty positions are blocked.
B 40-080 e 03/01
OPERATION
Axiovert 200
(3-1/3 and
adjustment in Y direction.
adjustment in X direction.

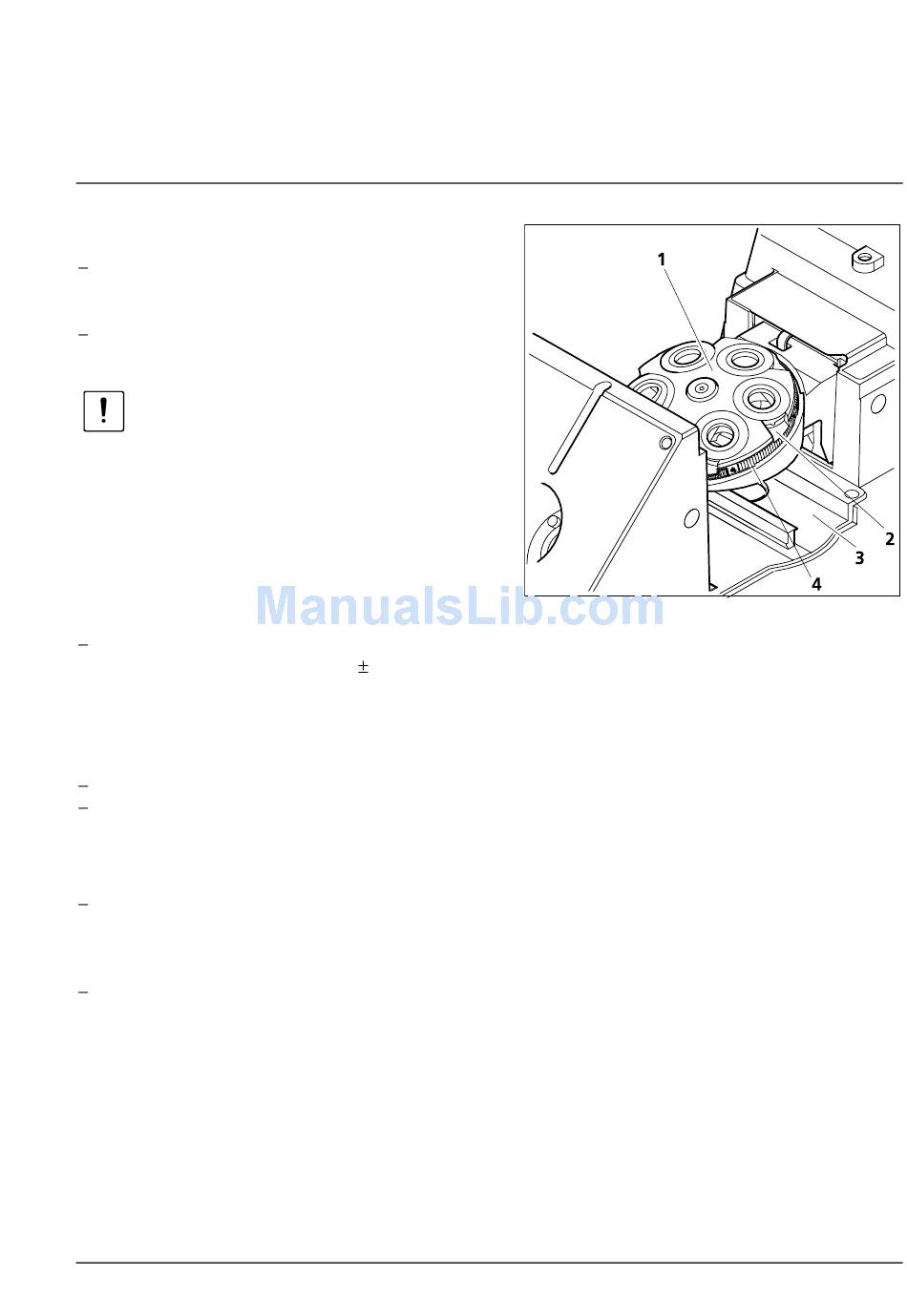

Fig. 3-2 Nosepiece with mounts for DIC
slider
Carl Zeiss
3-7
