Axiovert 200
Because of the large travel range of
the scanning stage, it may happen
that the stage frame collides with
the objectives at the end of the
stage travel.
2.5.3 Attachment
250x230, object guide and mount-
ing frame for object guide (M)
The specimen stage is attached to the contact
points of the stand using a spacer bar and a spacer
disk.
Use the two shorter hexagonal screws to screw
the spacer bar (2-10/5) to the two front contact
points.
Place spacer disk (2-10/3) on the rear contact
point.
Place specimen stage (2-10/2) on the stand and
first fix it to the rear contact point from above
using the longer hexagonal screw (2-10/1).
Make sure that the screw goes through the
drilled hole of the spacer disk.
Then screw specimen stage to the right and left
of the spacer bar from below using two
hexagonal screws (2-10/4).
Also tighten the rear screw (2-10/1).
Attach object guide (2-11/1) to the specimen
stage from the right or left and fix it in position
from below using three hexagonal screws
(2-11/2).
Then push mounting frame for object guide (M)
(2-11/3) under the two springs of the object
guide from below until it clicks into position.
B 40-080 e 03/01
START-UP
Attachment of microscope stages
of specimen stage

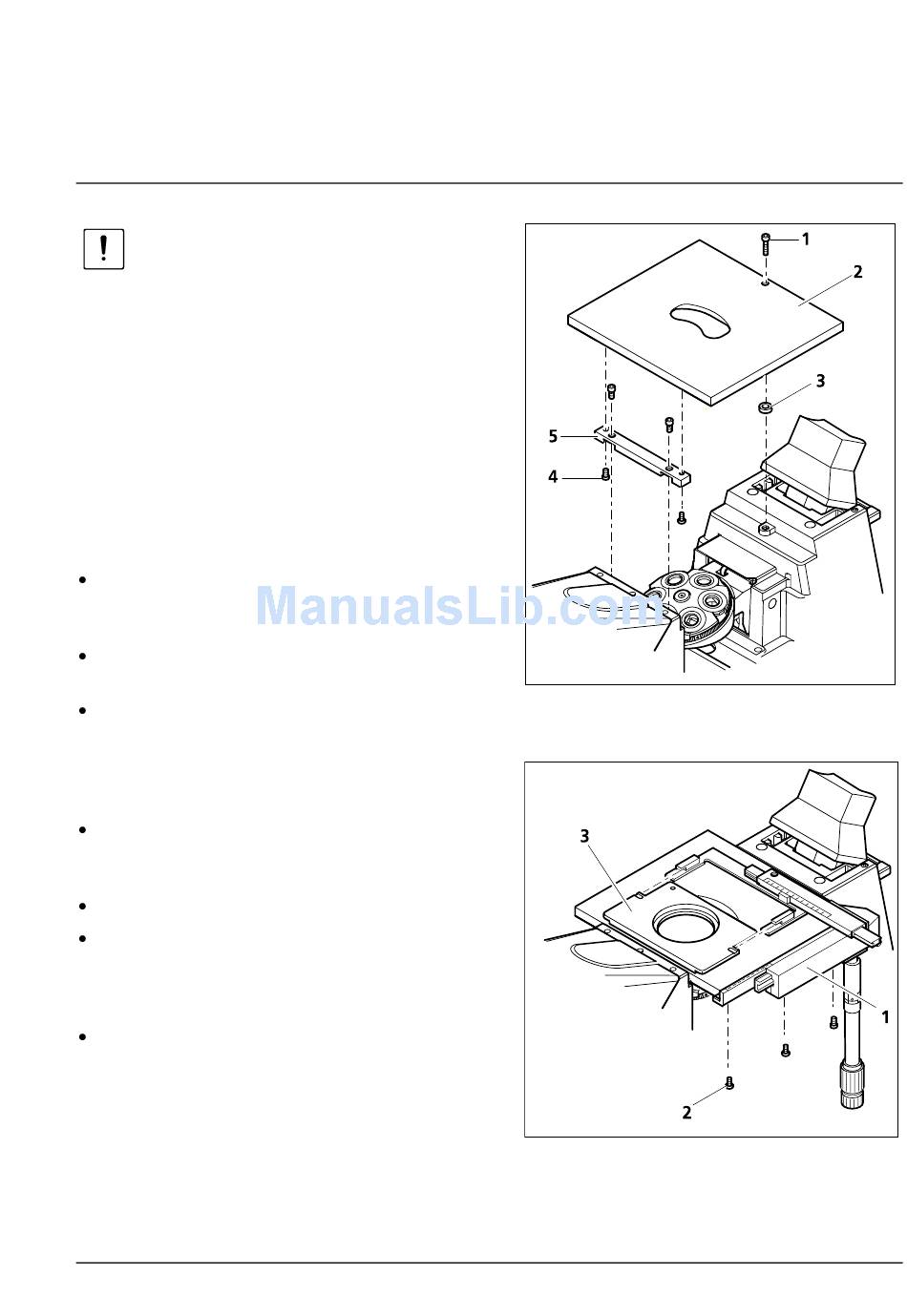

Fig. 2-10 Attachment of specimen stage
250x230
Fig. 2-11 Attachment of object guide and
mounting frame
Carl Zeiss
2-11
