Carl Zeiss
To remove a reflector module no longer required, first pull it out of the upper spring clamps and then
from the lower ones.
When equipment has been finished, attach the plastic hood again and press it downwards until the
holding catches on the right and left engage in the lower part of the reflector turret.

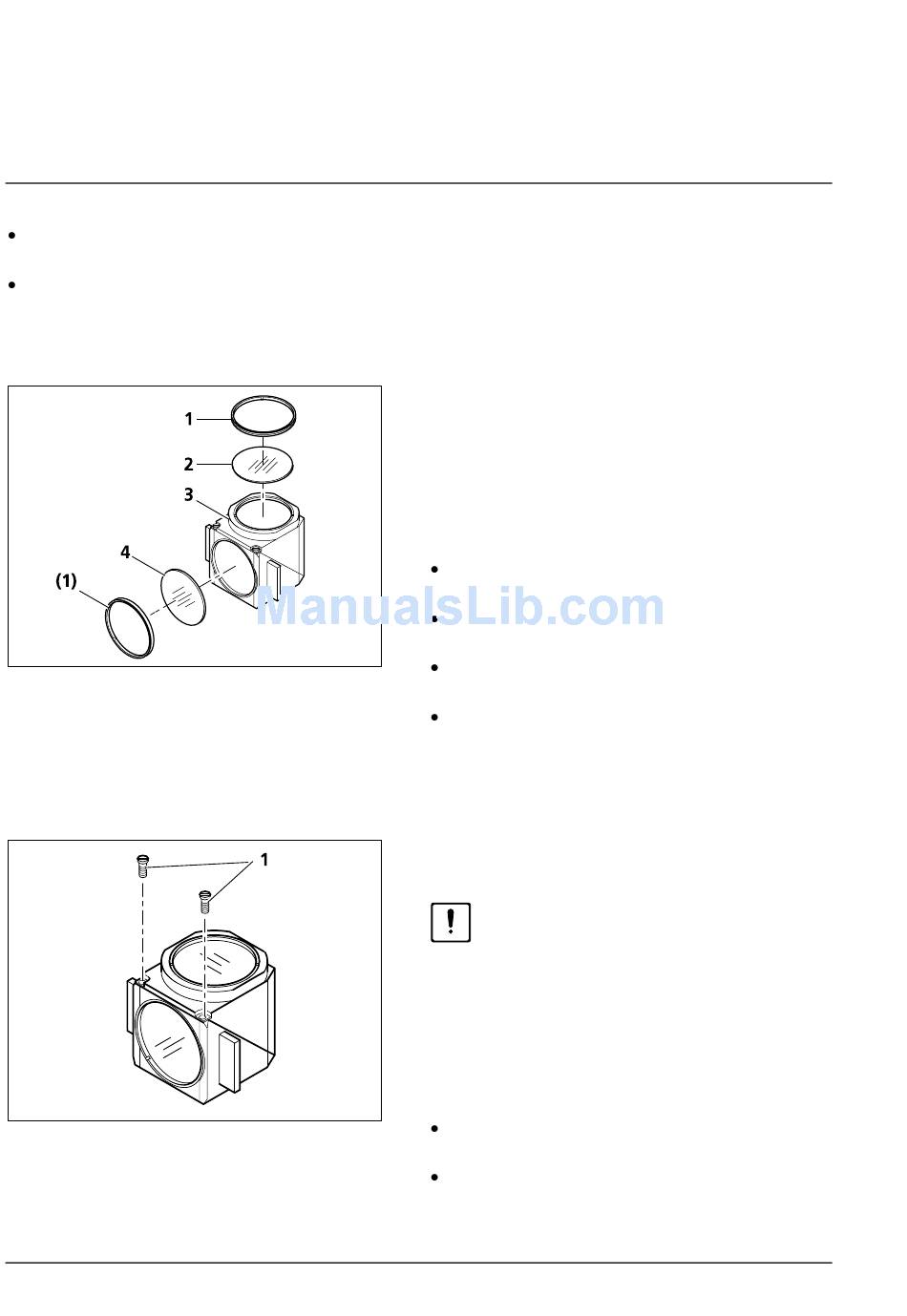

Fig. 2-18 Changing the filter set in the FL
reflector module
Fig. 2-19 Changing the beam splitter
2-16
START-UP
Reflector turret
2.7.3 Changing the filter set in the FL
reflector module
The filter sets for the FL reflector module can be
compiled and assembled by the customer himself
as required. Suitable filter sets or completely
assembled FL reflector modules can be ordered
from Carl Zeiss.
Remove FL reflector module (2-18/3) from the
reflector turret.
Use mounting device from the tool set to
unscrew retainer ring (2-18/1).
Turn the reflector module around and allow the
filter (2-18/2 or 4) to drop on a soft surface.
The barrier filter is inserted at (2-18/2), the
excitation filter at (2-18/4), and both are
secured using the retainer rings (2-18/1).
2.7.4 Changing the beam splitter in the
FL reflector module
Assembly of the filter and the beam
splitter requires utmost care to
prevent damage and contamination
of the optical components.
We would recommend you to order completely
equipped FL reflector modules, since changing the
beam splitter requires much skill.
Otherwise, proceed as follows:
Remove FL reflector module from the reflector
turret.
Use screwdriver to loosen two slotted screws
(2-19/1).
Axiovert 200
B 40-080 e 03/01
