Axiovert 200
Binocular component of the tubes (3-1/14)
The eyepiece distance is matched to the
individual interpupillary distance by swinging
the eyepiece tubes symmetrically towards one
another (3-5/A and 3-5/B).
Two vertical adjustments through rotation of
the binocular component around 180°.
Eyepiece / setting ring of eyepiece (3-1/16 and
15)
Both eyepiece models permit compensation of the
user's ametropia, and also accept eyepiece reticles
(see chapter 2).
LCD display (3-1/19)
Two-line display with 16 characters each
attached to the carrier for transmitted-light
illumination / condenser.
Display of objective
magnification (3-6/2) and contrasting technique
(3-6/3) in the upper line.
FL display (3-6/4) on the right of the top line if
the fluorescence shutter is opened.
Display of lamp brightness in a line scale (3-6/6)
and display of the relevant voltage (3-6/5) in the
lower line. If the color temperature (10.5 V) has
been set, the line scale displays the value
3200 K. One interval corresponds to 0.4 V. If
the halogen illuminator is switched off, HAL
off is displayed.
The LCD background illumination can be
switched on or off as required. Activation /
deactivation is performed by pressing the FL
key for more than 2 seconds.
The LCD display
configuration of the microscope (Set mode).
B 40-080 e 03/01
OPERATION
Axiovert 200
position (3-6/1),
is also used for

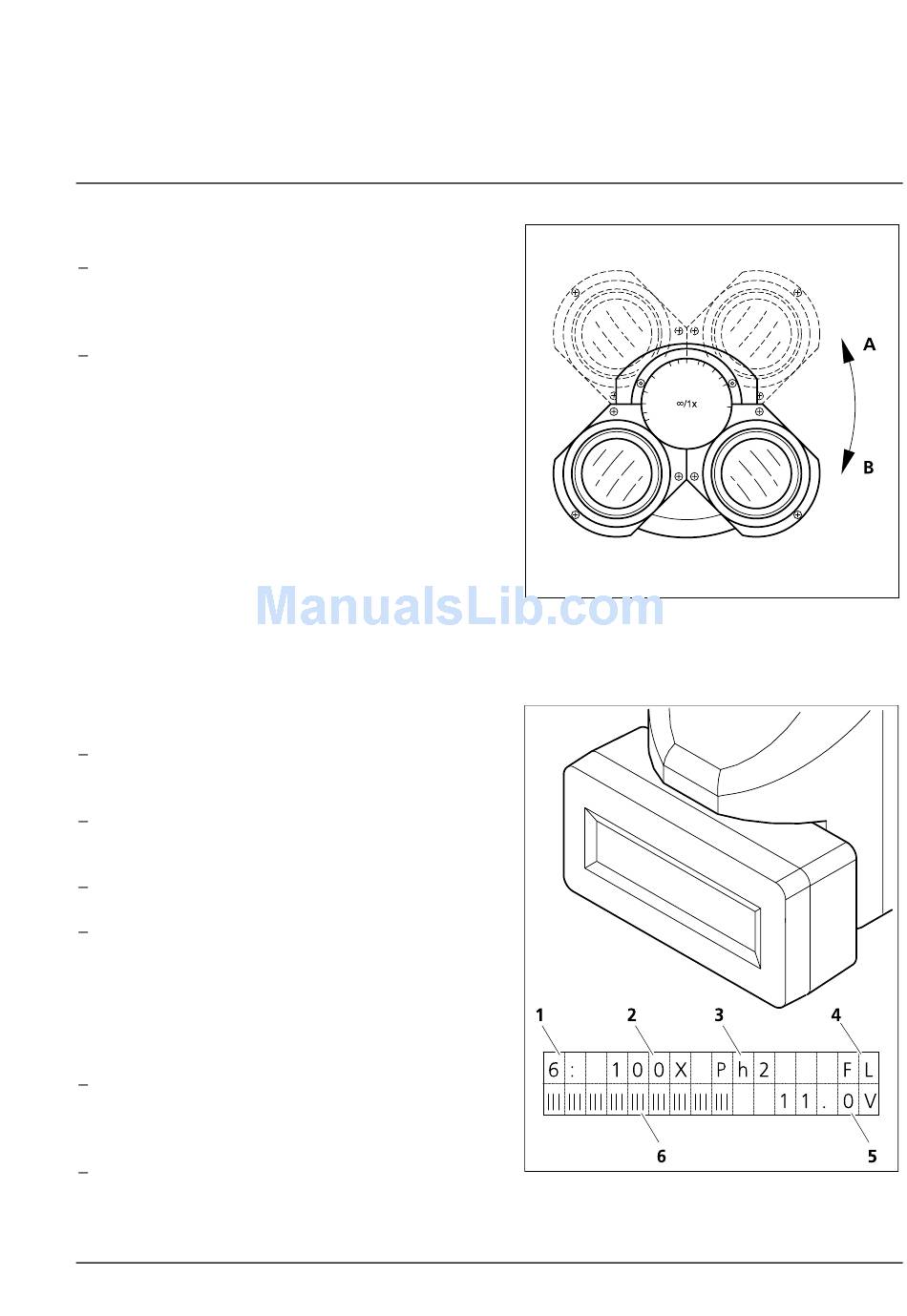

Fig. 3-5 Setting of eyepiece distance on the
binocular tube
the
Fig. 3-6 LCD display
Carl Zeiss
3-9
