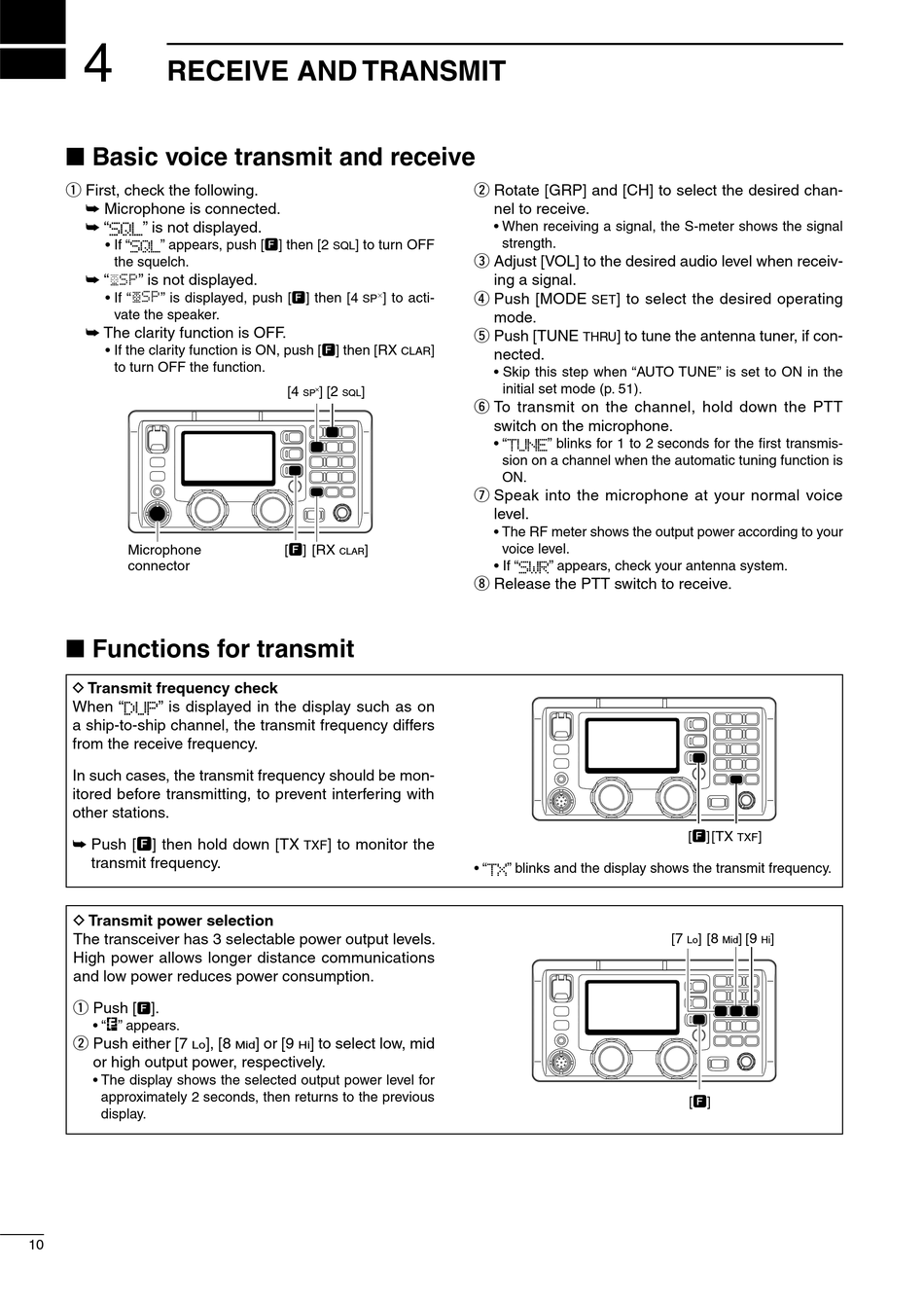

RECEIVE AND TRANSMIT

■ Basic voice transmit and receive

q First, check the following.
➥ Microphone is connected.
➥ "SQL" is not displayed.
• If "SQL" appears, push [F] then [2
the squelch.
➥ " " is not displayed.
S P
• If " S P " is displayed, push [F] then [4
vate the speaker.
➥ The clarity function is OFF.
• If the clarity function is ON, push [F] then [RX
to turn OFF the function.
Microphone
connector

■ Functions for transmit

D Transmit frequency check
When "DUP" is displayed in the display such as on
a ship-to-ship channel, the transmit frequency differs
from the receive frequency.
In such cases, the transmit frequency should be mon-
itored before transmitting, to prevent interfering with
other stations.
➥ Push [F] then hold down [TX
transmit frequency.
D Transmit power selection
The transceiver has 3 selectable power output levels.
High power allows longer distance communications
and low power reduces power consumption.
q Push [ ].
F
• " " appears.
w Push either [7
Lo
or high output power, respectively.
• The display shows the selected output power level for
approximately 2 seconds, then returns to the previous
display.
