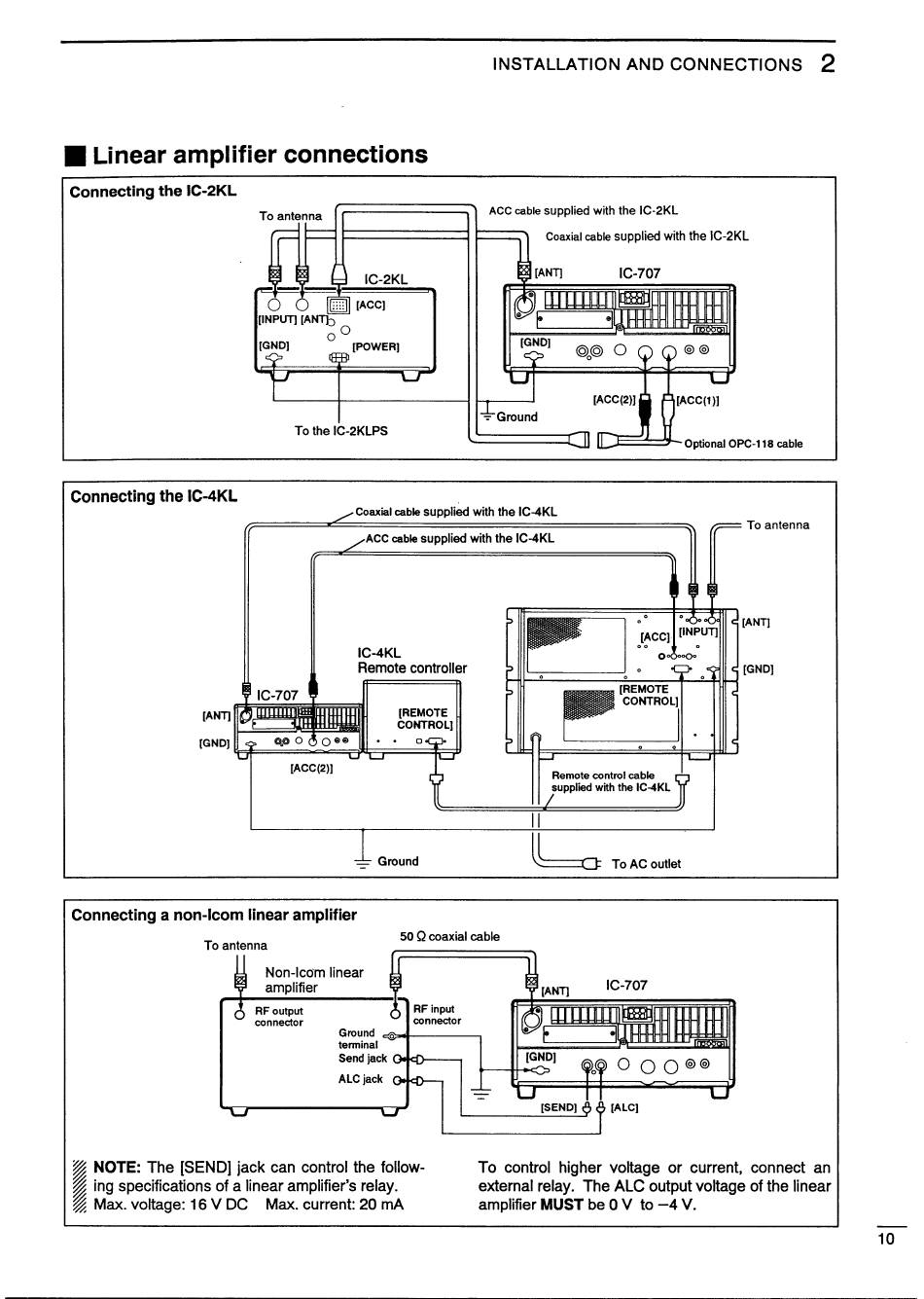

INSTALLATION AND CONNECTIONS
2
W Linear amplifier connections
Connecting the IC-2KL
To antenna
ACC cable supplied with the IC-2KL
Coaxial cable supplied with the IC-2KL
HU
To the IC-2KLPS
Connecting the IC-4KL
;
Coaxial cable supplied with the IC-4KL
To antenna
ACC cable supplied with the IC-4KL
IC-4KL
Remote controller
[ACC(2)]
Connecting a non-icom linear amplifier
50 (2. coaxial cable
To antenna
Non-lIcom linear
amplifier
RF output
RF input
connector
connector
Ground
cs
terminal
Send jack O
ALC jack
G
I
[SEND] 6 & [ALC]
NOTE: The [SEND] jack can control the follow-
To control higher voltage or current, connect an
ing specifications of a linear amplifier's relay.
external relay. The ALC output voltage of the linear
; Max. voltage: 16
VDC
Max. current: 20 mA
amplifier MUST be 0 V to —4 V.
