10

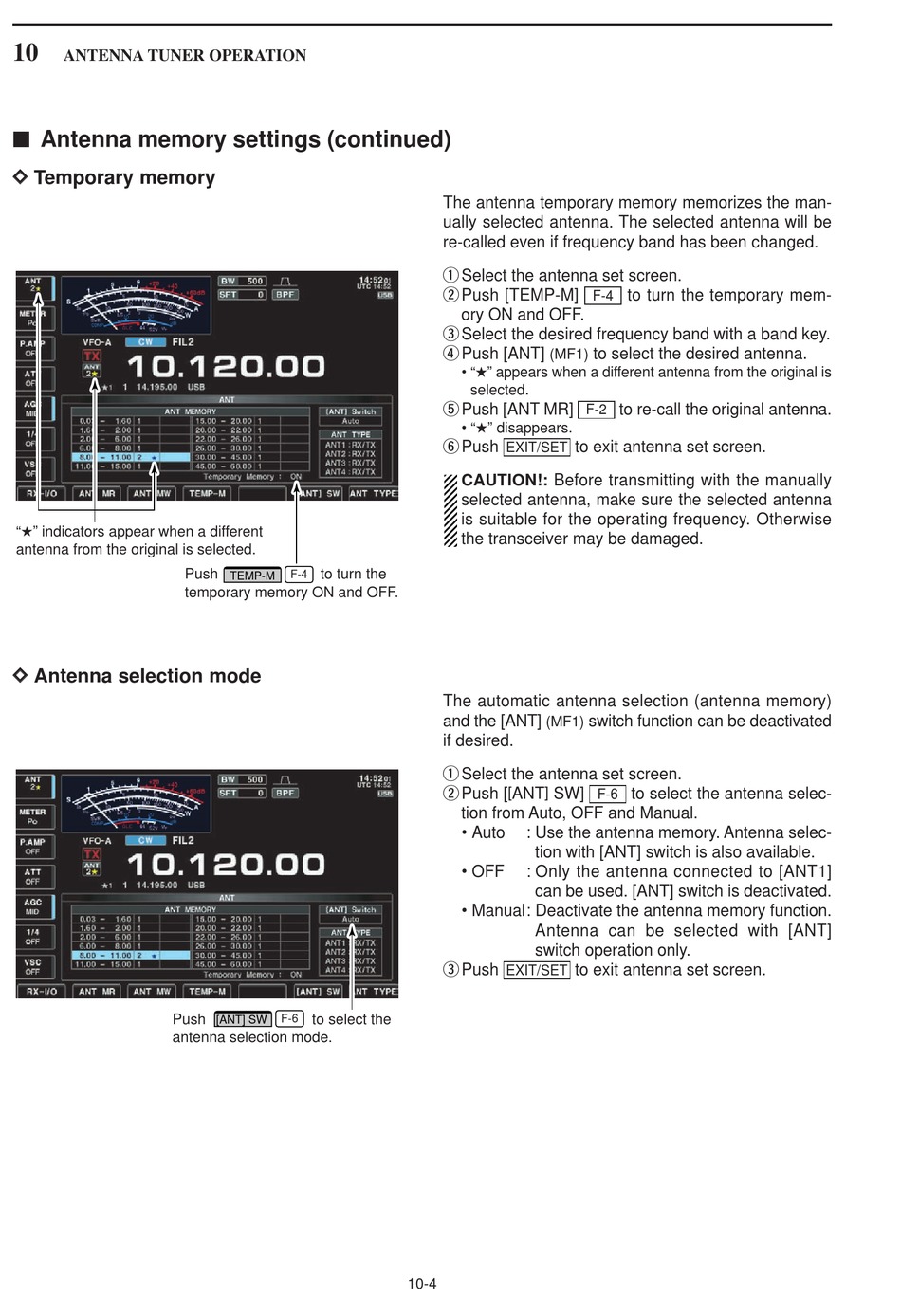

ANTENNA TUNER OPERATION
■ Antenna memory settings (continued)
D D Temporary memory
"★" indicators appear when a different
antenna from the original is selected.
D D Antenna selection mode
Push
antenna selection mode.
Push to turn the
F-4
TEMP-M
temporary memory ON and OFF.
F-6 to select the
[ANT] SW
The antenna temporary memory memorizes the man-
ually selected antenna. The selected antenna will be
re-called even if frequency band has been changed.
q Select the antenna set screen.
w Push [TEMP-M]
ory ON and OFF.
e Select the desired frequency band with a band key.
r Push [ANT]
(MF1)
• "★" appears when a different antenna from the original is
selected.
t Push [ANT MR]
• "★" disappears.
y Push
EXIT/SET
CAUTION!: Before transmitting with the manually
selected antenna, make sure the selected antenna
is suitable for the operating frequency. Otherwise
the transceiver may be damaged.
The automatic antenna selection (antenna memory)
and the [ANT]
(MF1)
if desired.
q Select the antenna set screen.
w Push [
[ ANT ] SW]
tion from Auto, OFF and Manual.
• Auto : Use the antenna memory. Antenna selec-
tion with [ANT] switch is also available.
• OFF : Only the antenna connected to [ANT1]
can be used. [ANT] switch is deactivated.
• Manual: Deactivate the antenna memory function.
Antenna can be selected with [ANT]
switch operation only.
e Push
EXIT/SET
10-4
to turn the temporary mem-
F-4
to select the desired antenna.
to re-call the original antenna.
F-2
to exit antenna set screen.
switch function can be deactivated
to select the antenna selec-
F-6
to exit antenna set screen.
