High-Pass Filter and Low-Pass Filter
Controls
There are similar controls for high-pass and low-pass filters on
the extreme left and right sides of the EQ section.

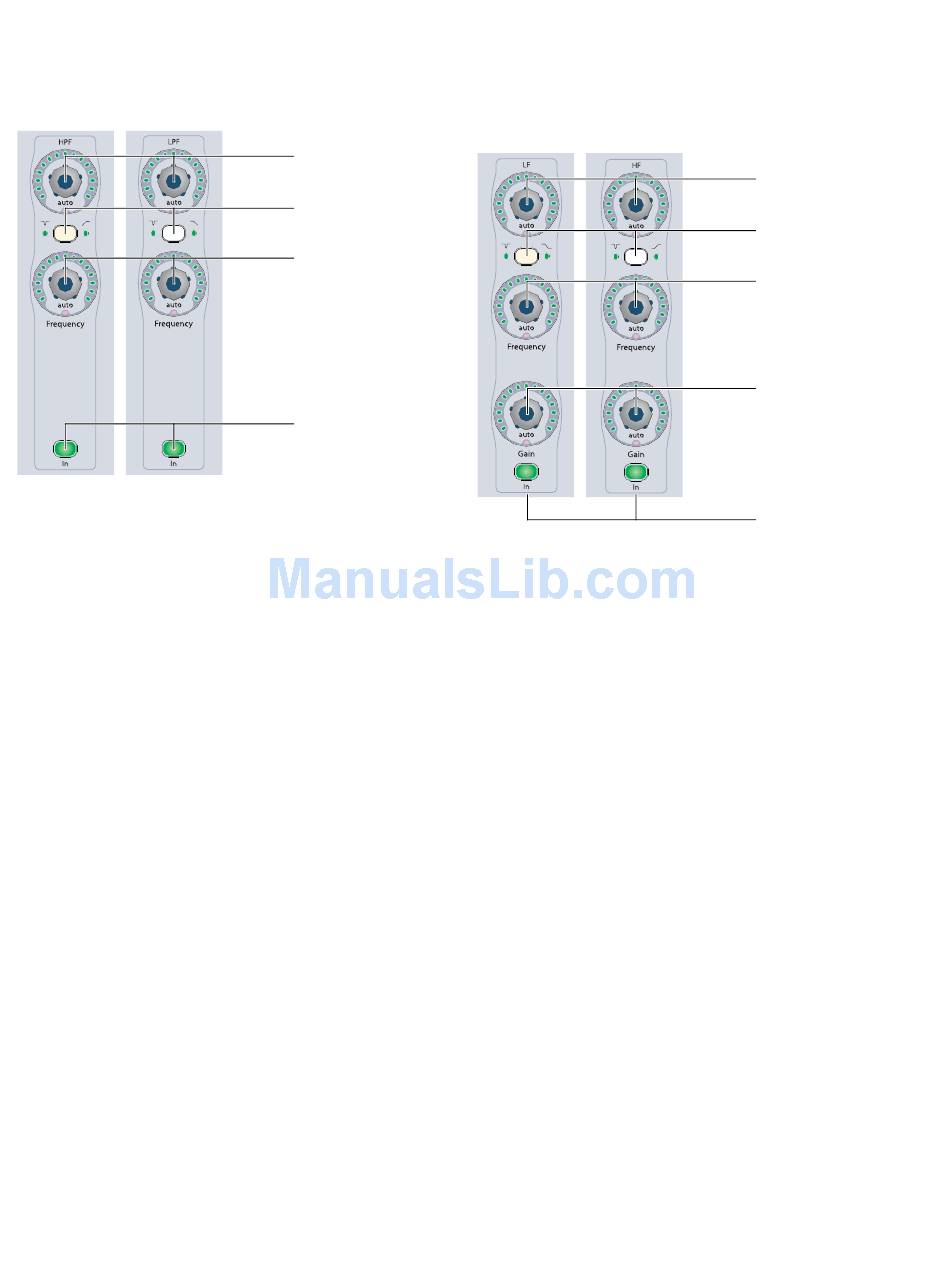

High-Pass Filter and Low-Pass Filter controls in the EQ section
Q Encoders
The top encoders for these EQ bands control the Q of each fil-
ter. The Auto indicator under each encoder knob lights when
the parameter is enabled for automation.
Notch/Shelf Switches and Indicators
The Notch/Shelf switches in these EQ bands let you switch be-
tween the two filter types when they are available. The indica-
tors on either side of the switch light to show which type of fil-
ter is active.
Frequency Encoders
The bottom encoders in these EQ bands control the filter fre-
quency for each filter. When the filter is a notch filter, these
encoders control the center frequency. When the filter is a
high-pass or low-pass filter, these encoders control the cutoff
frequency. The Auto indicator under each encoder knob lights
when the parameter is enabled for automation.
Band In Switches
The Band In switches in these EQ bands let you engage or by-
pass their corresponding EQ band in the plug-in.
86 D-Control Guide
Low Shelf/Peak and High Shelf/Peak
EQ Controls
There are similar controls for the low and high shelf/peak EQ
bands on the left and right sides of the EQ section, just inside
the high-pass and low-pass filter controls.
Q encoders
Notch/Shelf switches
and indicators
Frequency encoders
Filter In switches
Low Filter and High Filter controls in the EQ section
Q Encoders
The top encoders for these EQ bands control the Q of each
band. The Auto indicator under each encoder knob lights
when the parameter is enabled for automation.
Notch/Shape Switch and Indicators
The Notch/Shape switches in these EQ bands let you switch
between the two EQ types when they are available. The indi-
cators on either side of the switch light to show which type of
EQ is active.
Frequency Encoders
The middle encoders in these EQ bands control the frequency
for each band. When the EQ is a peaking type, these encoders
control the center frequency. When the EQ is a high- or
low-shelf type, these encoders control the cutoff frequency.
The Auto indicator under each encoder knob lights when the
parameter is enabled for automation.
Gain Encoders
The bottom encoders in these EQ bands control the gain for
each band. The Auto indicator under each encoder knob lights
when the parameter is enabled for automation.
Band In Switches
The Band In switches in these EQ bands let you engage or by-
pass their corresponding EQ band in the plug-in.
Q encoders
Notch/Shape switches
and indicators
Frequency encoders
Gain encoders
Band In switches
