Appendix B: Audio Connections and Pinouts

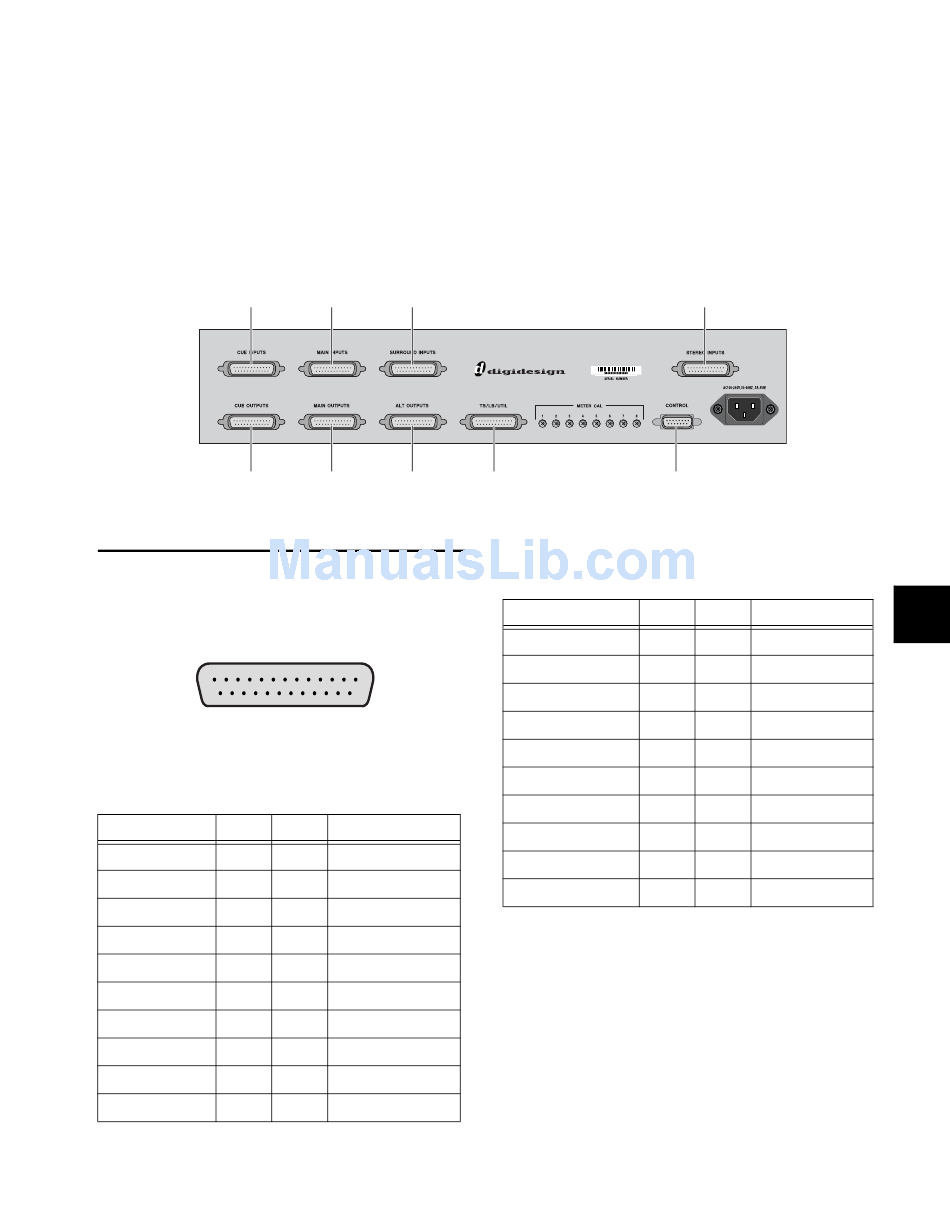

All external D-Control audio connections are made to the back panel of the XMON interface, shown below. All audio connectors
are standard female DB-25 connectors. The connector for communication with D-Control is a 15-pin female connector.
Cue Inputs
Cue Outputs
XMON back panel connectors

25-Pin Female Connector Pinouts

All XMON DB-25 connector pinouts conform to the pin num-
bering scheme shown below.
13
25
DB-25 Connector (user view)
Cue Inputs
Cue Inputs
Signal Name Hot (+)
Cue Input 1 (Left) 24
Cue Input 1 (Right) 10
Cue Input 2 (Left) 21
Cue Input 2 (Right) 7
Cue Input 3 (Left) 18
Cue Input 3 (Right) 4
[Not Connected] 15
[Not Connected] 1
GND
SHIELD GND
Main Inputs Surround Inputs
Main Outputs Alt Outputs Talkback/Listenback/Utility
1
14
Cold (–) Ground (shield)
12 25
23 11
9 22
20 8
6 19
17 5
3 16
14 2
13
connector housing
Stereo Inputs
D-Control connector
Main Inputs
Main Inputs
Signal Name Hot (+)
Main Input 1 (L) 24
Main Input 2 (Lc) 10
Main Input 3 (C) 21
Main Input 4 (Rc) 7
Main Input 5 (R) 18
Main Input 6 (Ls) 4
Main Input 7 (Rs) 15
Main Input 8 (LFE) 1
GND
SHIELD GND
Known Issue with XMON REV A, B, C, and D With XMON REV
A–D, if you have any need to mix signals from Cue Outputs 1,
2, or 3 with other signals from Pro Tools or the XMON, swap
the Hot (+) and Cold (–) connections for either the Cue Inputs
or the Cue Outputs.
Known Issue with XMON REV E With XMON REV E, if you
have any need to mix signals from Cue Outputs 1, 2, or 3 with
other signals from Pro Tools or the XMON, swap the Hot (+)
and Cold (–) connections for both the Cue Inputs and the Cue
Outputs.
Appendix B: Audio Connections and Pinouts 165
Cold (–) Ground (shield)
12 25
23 11
9 22
20 8
6 19
17 5
3 16
14 2
13
connector housing
