EQ Section

The EQ section includes standard controls for a variety of multi-band plug-ins, an array of controls for managing the display and
editing of plug-in parameters, and controls for selecting or linking channels in multi-mono plug-ins.
High-Pass Low
Filter Filter
controls controls

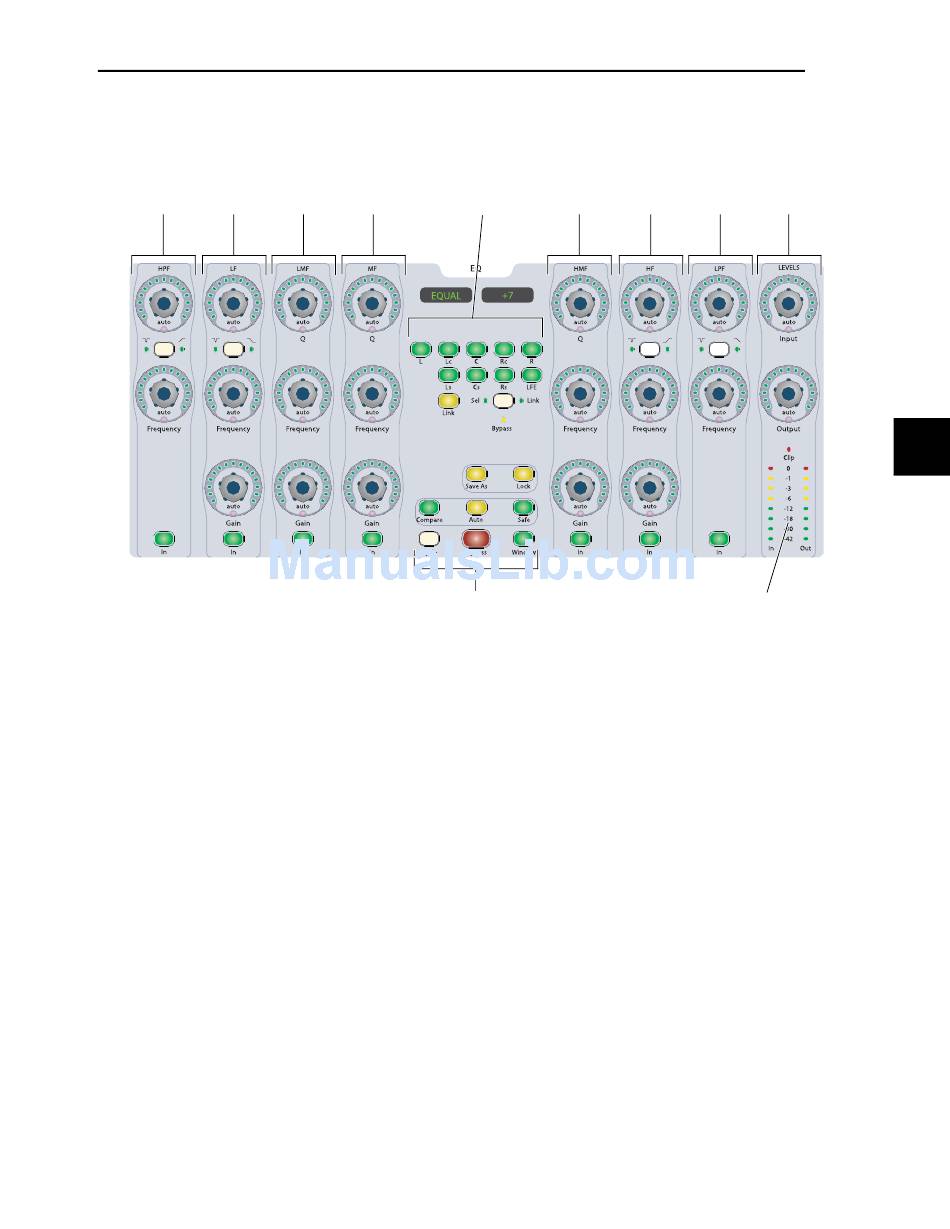

D-Control EQ section
EQ Plug-in Support
EQ processing plug-ins may have widely varying controls, de-
pending on their applications. The D-Control EQ Section pro-
vides dedicated knobs and switches to accommodate the wid-
est range of plug-ins possible. Not all plug-ins will require all
the EQ controls, while others may have more parameters than
can be displayed in the EQ section at one time.
To simultaneously display all controls in any plug-in, you can
use Custom Fader Plug-ins mode.
Low-Mid Mid
Filter Filter Channel Select
controls controls switches
EQ Edit and Display controls
High-Mid High
Filter Filter
controls controls
Displaying EQ Plug-ins
The D-Control EQ section automatically displays the first EQ
plug-in on the channel that is focused in the Focus Channel
Strip on the Main Unit.
To display successive EQ plug-ins that are on the focused
channel, press the Cycle switch in the EQ section.
Low-Pass
Filter Level
controls controls
Input and Output meters
Chapter 7: Plug-in Controls 85
