Headphone/Cue System Connections
Main Monitor
Input
(2 channels)
[from Control Room System]
Cue 1
Input
(2 channels)
Cue 2
Input
(2 channels)
Cue 3
Input
(2 channels)
Internal
Talkback
Internal Level
Talkback
Input
External
Talkback
Level
External
Talkback
Input

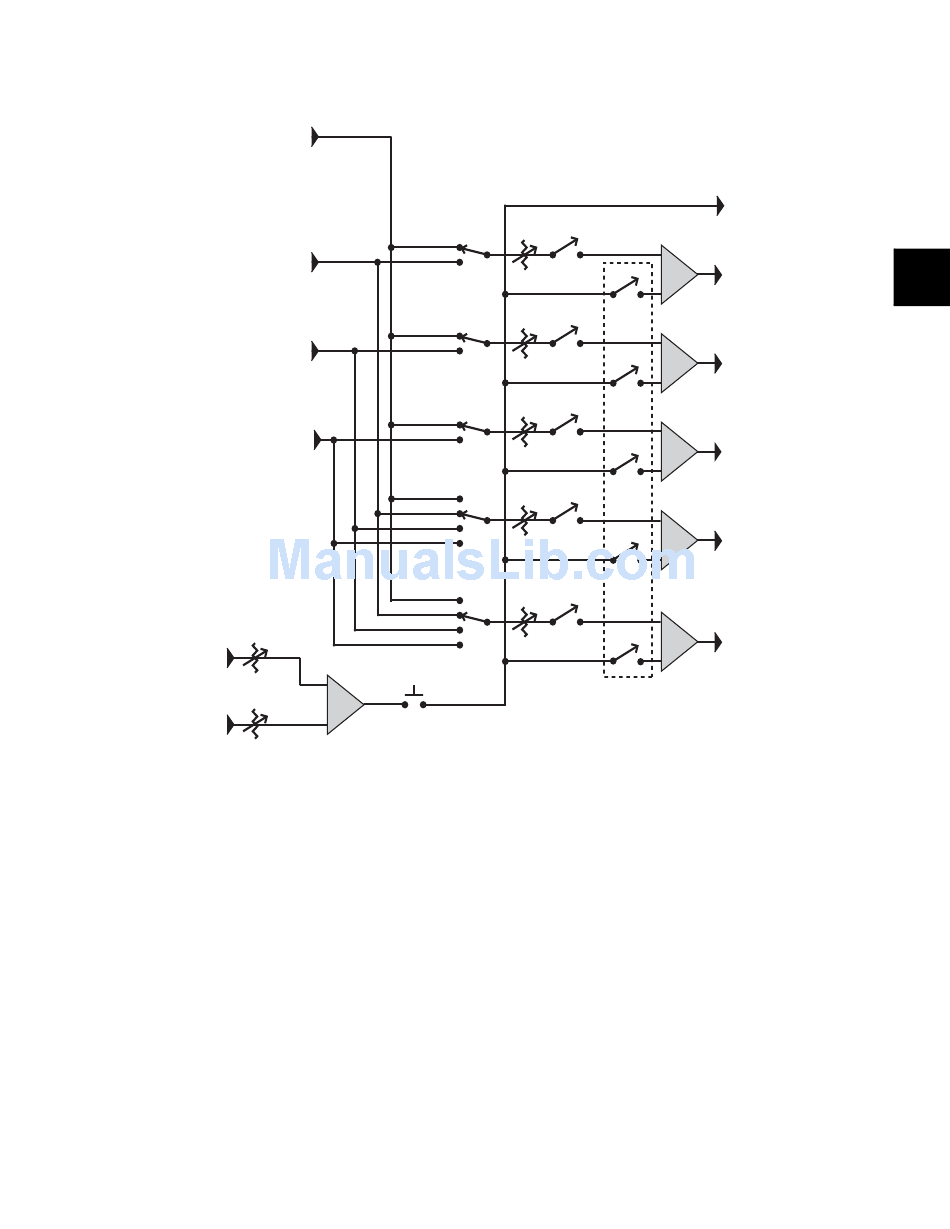

Figure 51. Headphone/Cue system block diagram
Inputs
• Main Monitor Input (2 channels)
• Cue 1 Input (2 channels), balanced, +4 dBu
• Cue 2 Input (2 channels), balanced, +4 dBu
• Cue 3 Input (2 channels), balanced, +4 dBu
• Internal Talkback Mic (from internal mic)
• External Talkback Mic, mic level (XMON provides 18V phantom power)
Outputs
• Cue 1 (2 channels), +4 dBu
• Cue 2 (2 channels), +4 dBu
• Cue 3 (2 channels), +4 dBu
• Headphone (2 channels), to internal headphone jack
• Studio Loudspeaker (2 channels)
• Talkback/Slate Output (1 channel)
Talkback
switch
Talkback
Assign
Talkback/Slate Out
(1 channel)
Cue 1 Out
(2 channels)
Cue 2 Out
(2 channels)
Cue 3 Out
(2 channels)
HP Out
(2 channels)
Studio LS
(2 channels)
