Closing Up the Stand
Next, you will close up the stand and finish attaching the
units.
To close up the stand:
Move the stand legs together to completely close the gap be-
1
tween the stand and the outer units. (You may want to tap the
base of the legs with a rubber mallet to help move them into
place.)
Use a ratcheting nylon strap to compress the stand legs to-
2
gether.

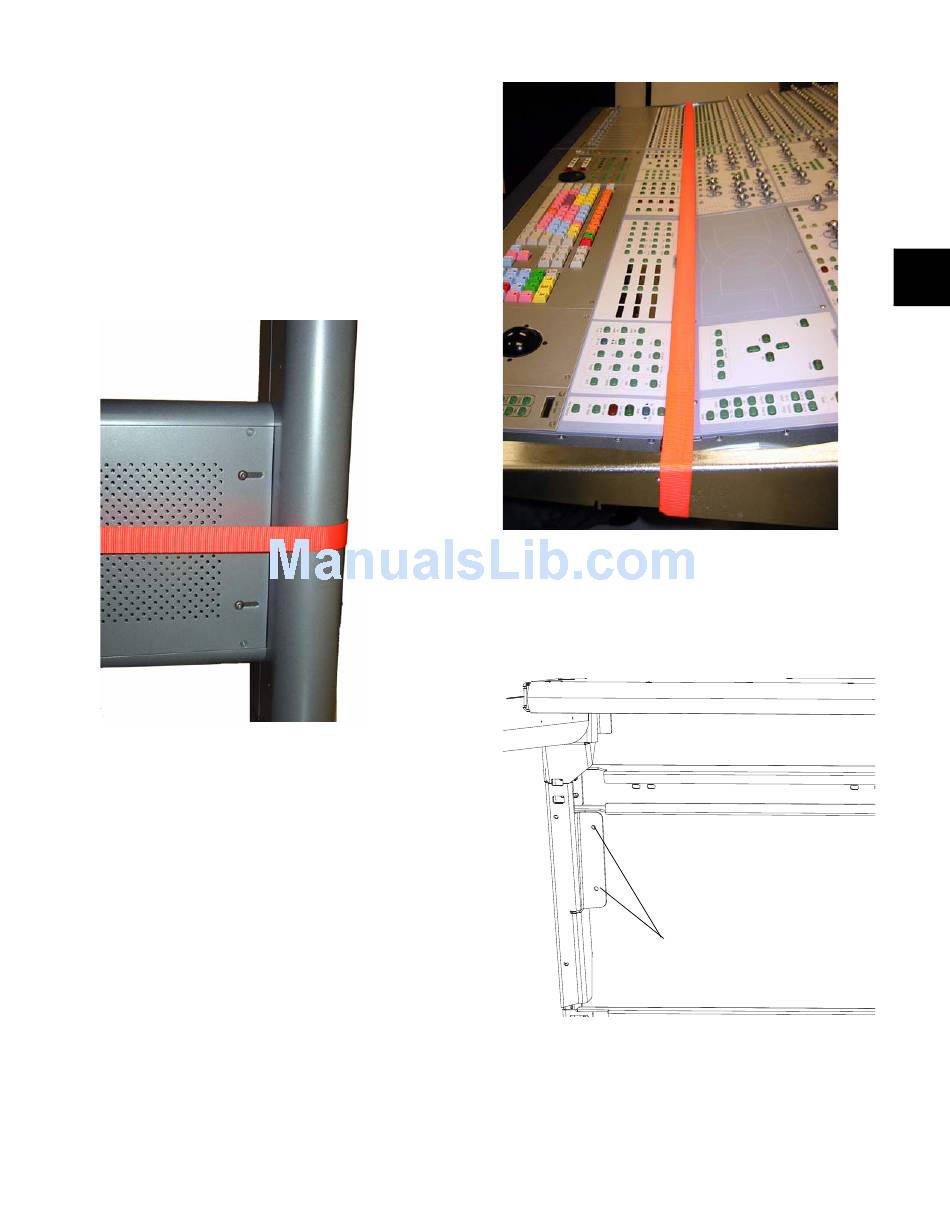

Figure 26. Using a nylon strap on the stand legs
If there is still any gap between the rear crossbar assembly
3
and either of the legs, position the crossbar so that the gap is
equal on both sides.
Tighten the 6 button cap screws on each side of the rear
4
crossbar.
If necessary, use the ratcheting nylon strap to compress the
5
D-Control units together by running the strap around the top
part of the legs and across the D-Control units as shown in
Figure 27. Make sure the nylon strap does not contact any
switches or encoders on the surface.
Figure 27. Using a nylon strap on the D-Control units
Tighten the 2 socket head cap screws on each side of the
6
front and rear rails from below.
Attach the outside (rightmost and leftmost) units to the
7
flanges on the legs from below with M6 x 8mm Phillips pan
head screws. Tighten these screws.
(2) M6 x 8mm Phillips pan head screws
Figure 28. Attaching a unit to the leg flanges (view from below)
Tighten the Phillips pan head screws that attach the D-Con-
8
trol units to the front and rear rails from below.
Remove the nylon strap.
9
