Monitor Displays

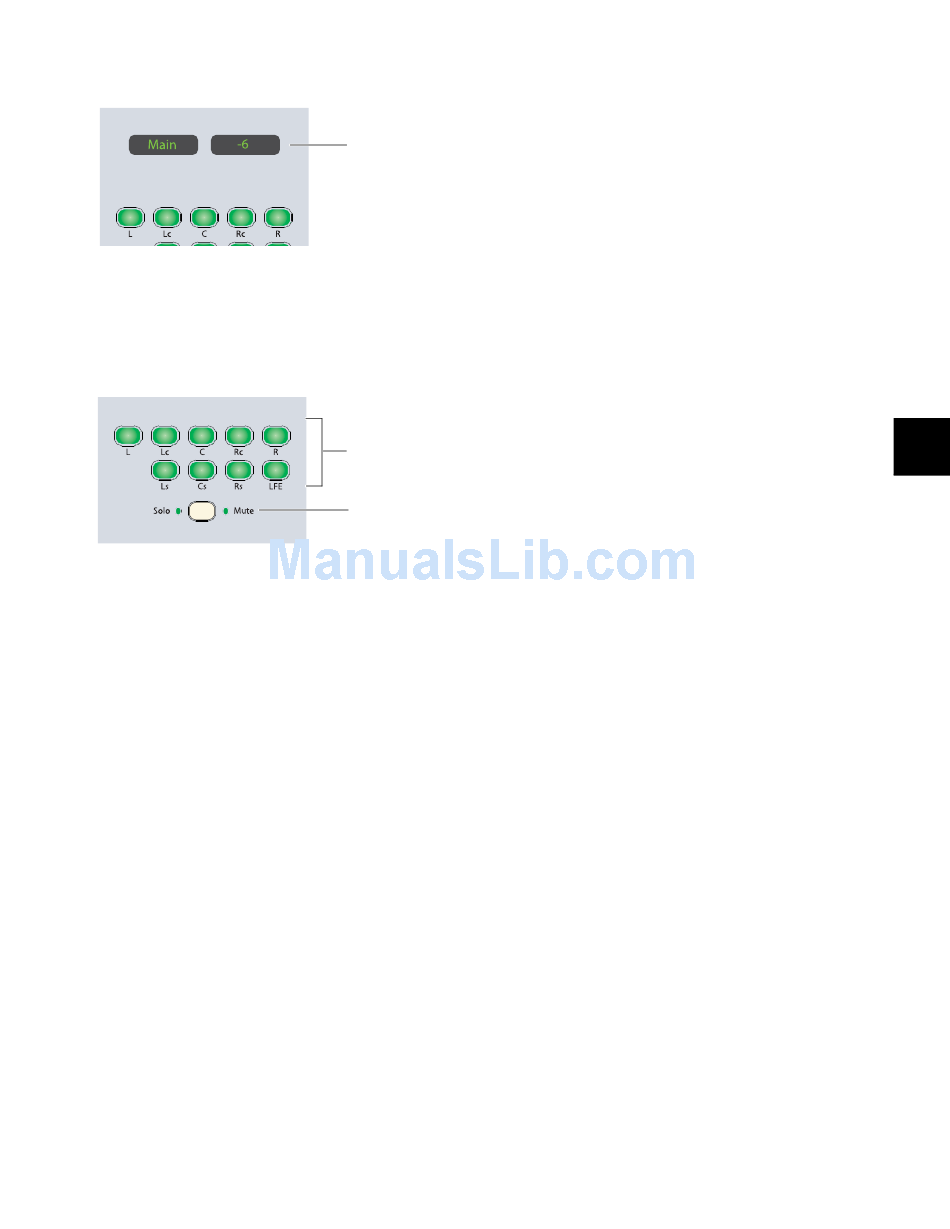

Monitor Section displays
When any rotary encoder knob in the Monitor section is
touched, the LED displays show the name of the control and
its value.
Output Channel Select Controls
Output Channel Select controls
Channel Select Switches
The Channel Select switches let you solo or mute individual
channels of the Control Room outputs. The function of the
Channel Select switches depends on the mode of the
Solo/Mute switch.
• When the mode is set to Solo, each Channel Select switch
solos the corresponding output channel.
• When the mode is set to Mute, each Channel Select switch
mutes the corresponding output channel.
In both modes, the Channel Select switches follow latched be-
havior, allowing multiple outputs to be soloed or muted. The
Channel Select switches light to indicate that they are active.
There are Channel Select switches for the following channels:
• L (Left)
• Lc (Left Center)
• C (Center)
• Rc (Right Center)
• R (Right)
• Ls (Left Surround)
• Cs (Center Surround)
• Rs (Right Surround)
• LFE
These choices support all possible channel configurations in
Pro Tools. A maximum of eight channels (7.1 surround) may
be in use at any time.
Individual Output Trim Mode
Each output channel can be trimmed individually for each of
the three control room outputs (Main, Alt, and Mini), allow-
ing you adjust the channel balance for each set of control
Monitor displays
room speakers. Trim values are stored for each of the three
outputs. Available trim values range from –30 dB to +10 dB, in
0.5 dB steps.
To trim the output level for an individual output channel:
Activate the control room output (Main, Alt, or Mini) whose
1
channel levels you want to trim.
Press and hold the Channel Select switch for the output
2
channel you want to trim, until the switch flashes.
Turn the Main Output encoder knob to set the trim value for
3
the channel. The monitor display shows "Trim" and the trim
value in dB.
Press the flashing Channel Select switch to exit Trim mode.
4
Repeat the above steps for each output channel and each set
5
Channel Select switches
of outputs (Main, Alt, or Mini) you want to trim.
Solo/Mute Switch and Indicators
Solo/Mute switch
and indicators
The Solo/Mute switch toggles the function of the Channel Se-
lect switches between Solo and Mute modes. The indicators
light to indicate which mode is active.
Chapter 10: Monitor and Meter Sections 119
