D-Control Fader Module

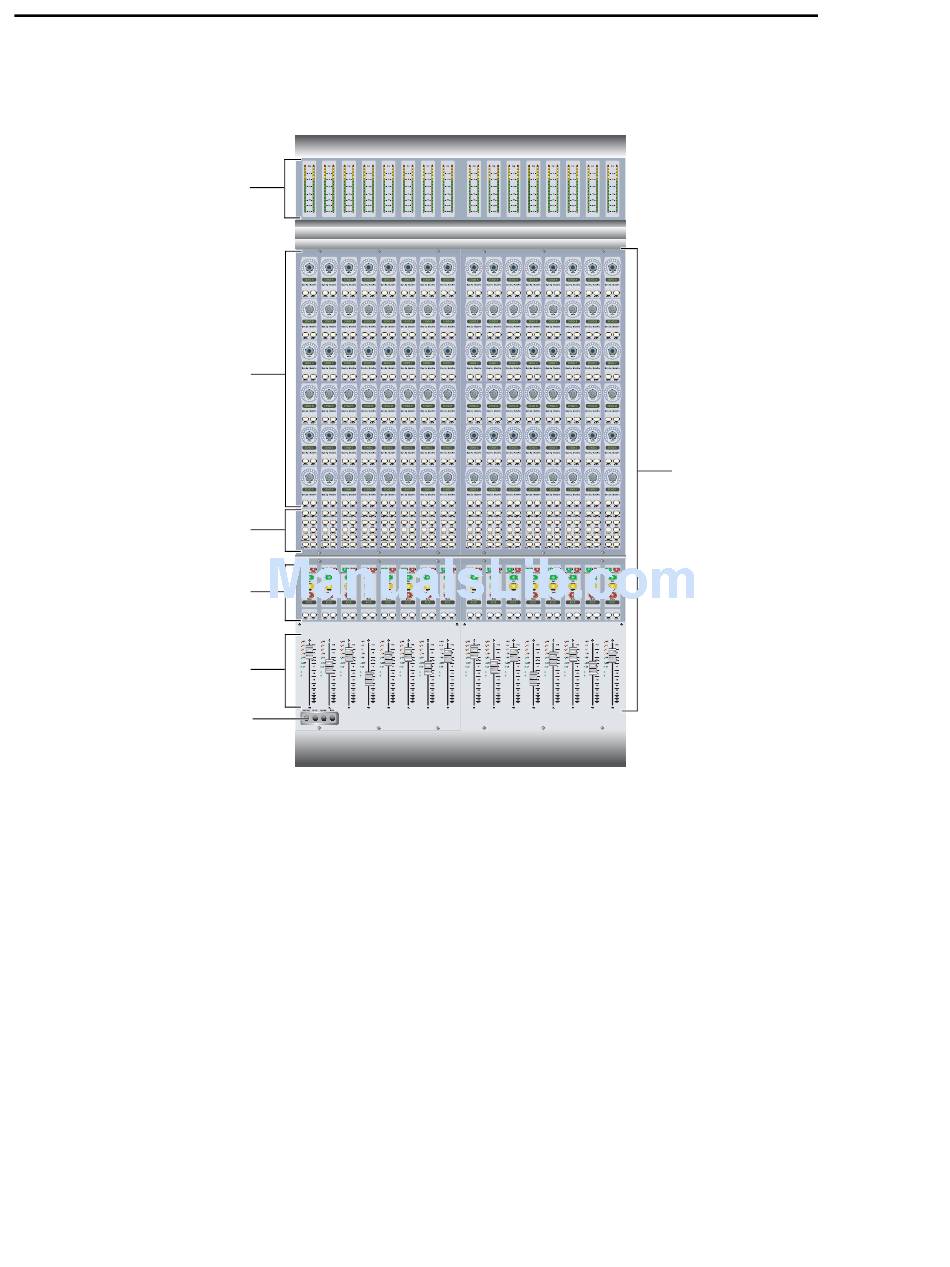

Fader Module Top Panel
Rotary Encoder
Channel Strip
Mode controls
Channel Strip
Function controls
Channel faders
Modifier keys
Figure 5. D-Control Fader Module top panel
Meter Section
The Meter section on the D-Control Fader Module can display
track levels, plug-in meters, and other parameters depending
on D-Control metering preferences. See "Meter Displays
(Fader Module)" on page 125.
Channel Strip
Each channel strip on the D-Control Fader Module has iden-
tical channel controls, including six touch-sensitive rotary en-
coders, display and mode controls, and a touch-sensitive
fader. See "Channel Strips" on page 49.
Modifier Keys
Each D-Control Fader Module has a set of four switches in its
lower left corner that duplicate the function of the Pro Tools
computer keyboard modifiers. See "Modifier Key Switches" on
page 56.
10 D-Control Guide
Meter
section
section
Fader Module Back Panel
AC Power
The AC Power connector accepts a standard AC power cable.
The D-Control Fader Module is auto power-selecting (100V to
240V) and automatically works with a standard modular
power cord when connected to an AC receptacle in any
country.
Power Switch
The Power switch applies power to the Fader Module.
Ethernet Connector
The Ethernet connector on the back panel of the D-Control
Fader Module provides communication to Pro Tools. See
"Ethernet Connections" on page 33.
Channel Strip
