Chapter 10: Monitor and Meter Sections

Monitor Section Controls

The Monitor section includes a full set of controls for the control room monitoring, headphone/cue, and talkback/listenback
sections of D-Control. All input and output connections to the D-Control monitoring system are made on the XMON interface,
which is connected to the D-Control console with the XMON cable, and remotely controlled from this section.
Talkback/Listenback
controls
Control Room
Input
Talkback Listen Mic Source
controls controls selectors

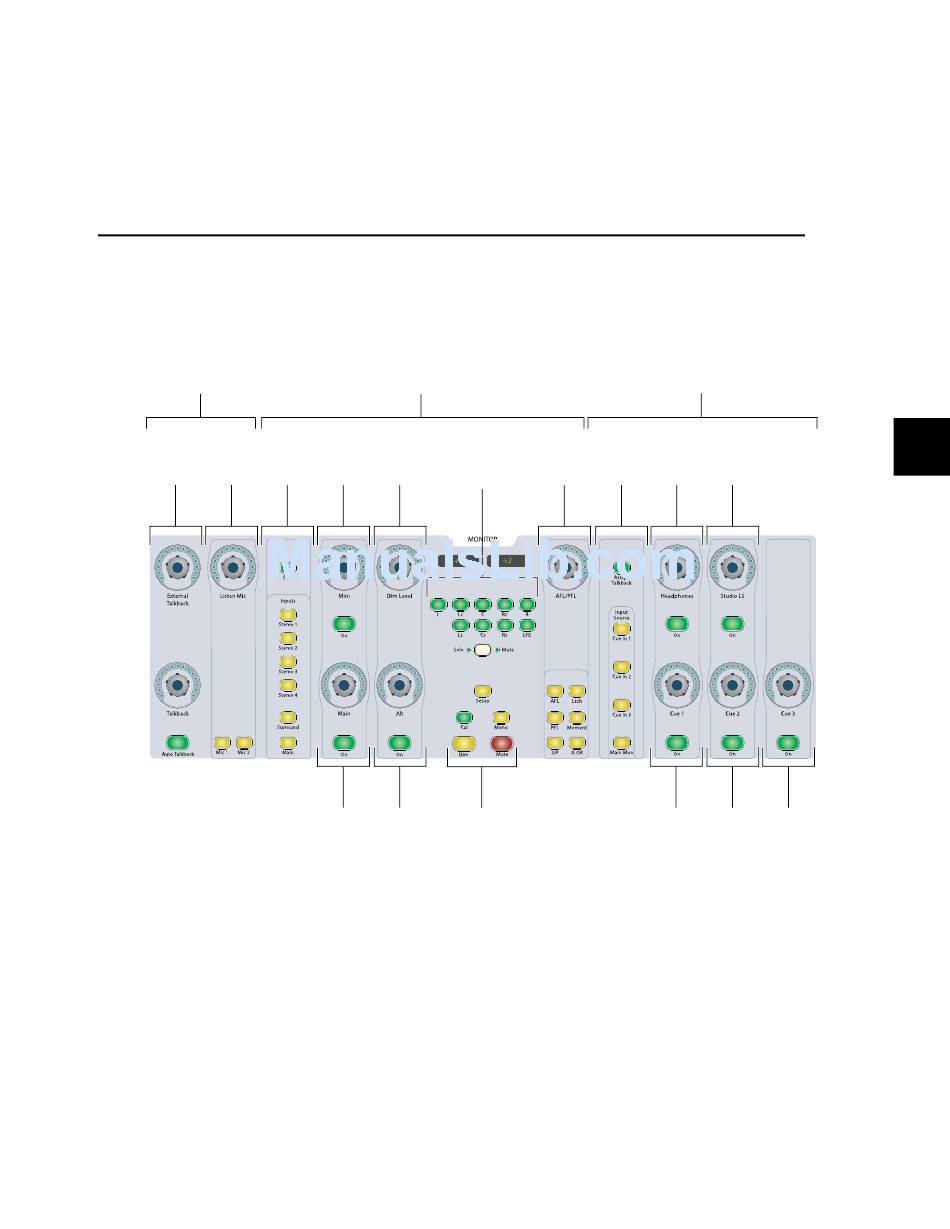

D-Control Monitor section
Control Room
controls
Mini Monitor Dim Level Output Channel Select
controls control and Mode switches
Main Alt Monitor
Monitor Monitor Mode
controls controls controls
Headphone/Cue
controls
Cue Input
AFL/PFL Source Headphone Loudspeaker
controls selectors controls controls
Cue 1 Cue 2
controls controls
Chapter 10: Monitor and Meter Sections 115
Studio
Cue 3
controls
