Assembling the Stand
After you have prepared the installation space for D-Control, begin by assembling the metal parts of the stand.
It is important that you first build the stand slightly wider than its final dimensions, and leave all screws loose enough to
allow the stand legs to move side-to-side relative to the rear crossbar and rails. After you install the D-Control units on the
stand, you will then slide the leg assemblies inward and tighten all screws.
To assemble the stand:
Place the right and left leg assemblies upright, and at the approximate width of the rear crossbar assembly. Position the legs so
1
that their crossbar mounting brackets are on the insides of the legs, facing each other as in Figure 7.
Left stand leg

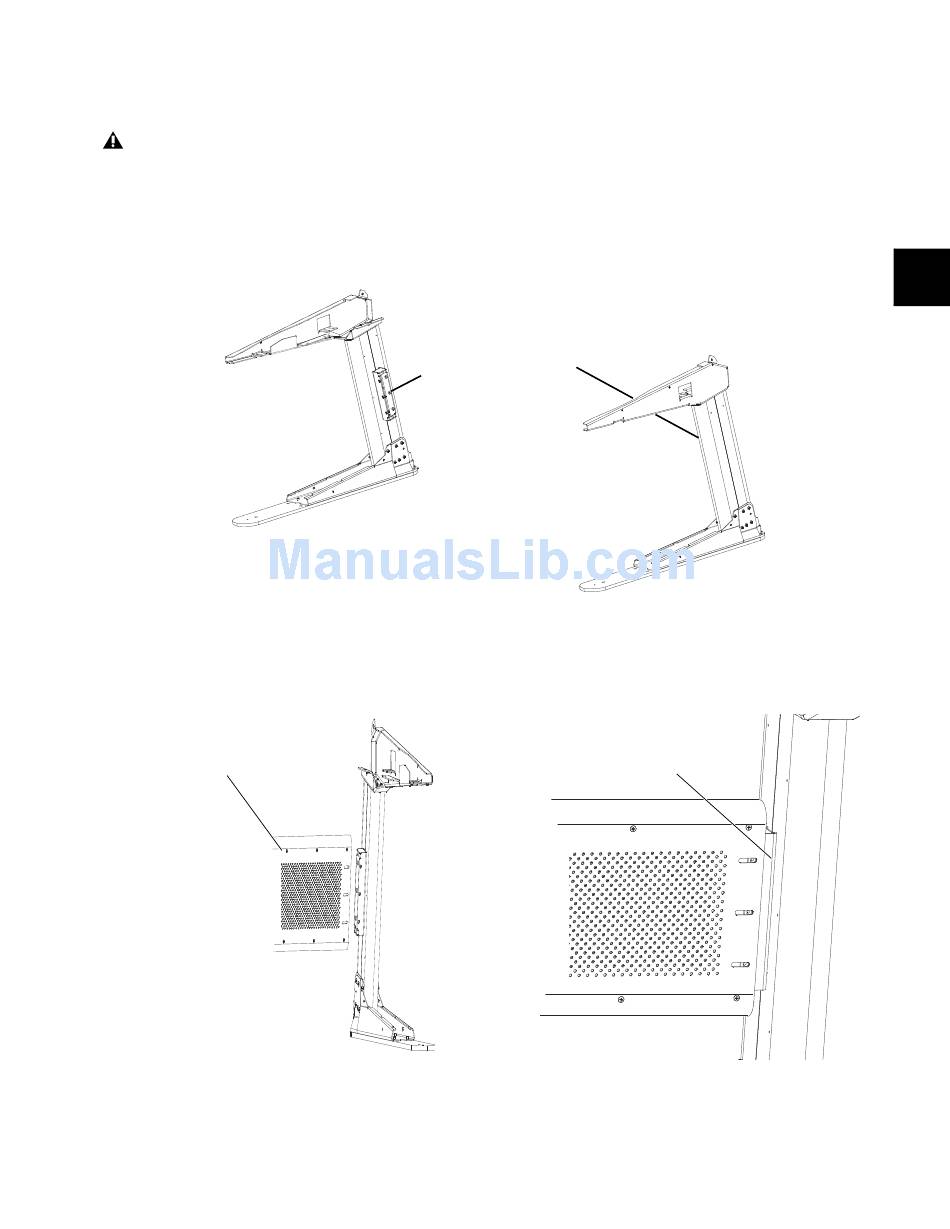

Figure 7. D-Control stand legs positioned with crossbar brackets facing each other
Lift the rear crossbar assembly into position and slide it onto the crossbar mounting bracket on each leg. (The two sides of the
2
crossbar are identical, so it does not matter which side faces front.) Position the legs so there is a small gap between the sides of
the crossbar and the inner surface of each leg. The screw holes in the brackets should be visible in the slots on the crossbar.
Crossbar mounting
bracket
Figure 8. Placing the rear crossbar assembly on the mounting bracket (left); Detail of gap between crossbar and leg (right)
Crossbar mounting brackets
Gap between crossbar and
stand leg
Right stand leg
