DigiDesign D-Control Manual page 46

Example XMON Wiring Diagram
The following diagram shows basic XMON connections for a Pro Tools|HD system with a Digidesign 192 I/O with 16 analog out-
puts (with a 192 AD card installed).
192 I/O
Analog Outputs 1-8 Analog Outputs 1-8
Cue Inputs
XMON
Cue Outputs
To
Cue System
Amplifiers
1-2: Studio
3-4: Cue 1
5-6: Cue 2
7-8: Cue 3

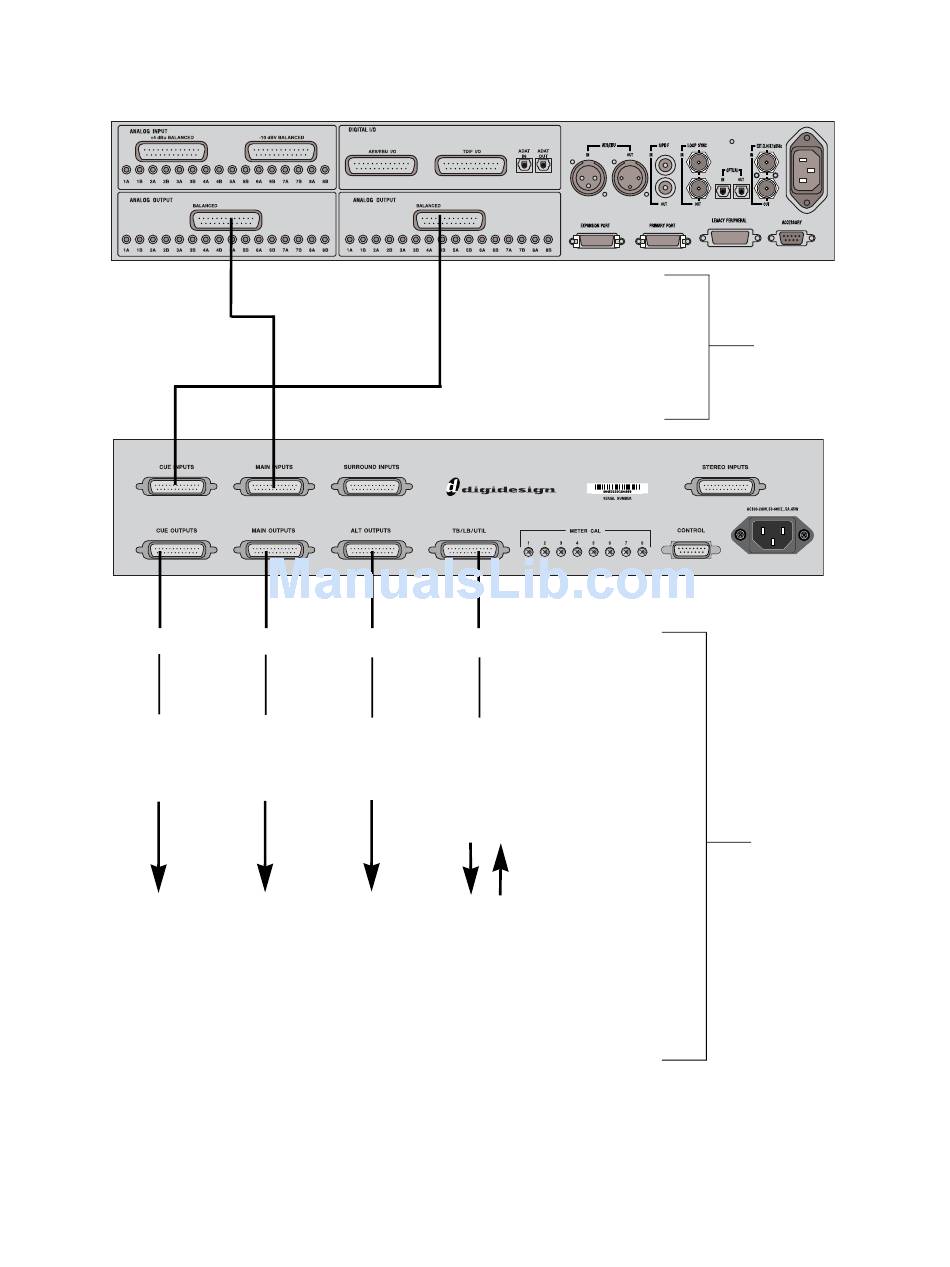

Figure 52. Wiring diagram for 192 I/O and XMON
38 D-Control Guide
Main Inputs
Main Outputs Alt Outputs
To
To
Alternate
Main
Speakers Speakers
1 = L
1 = L
2 = Lc
2 = Lc
3 = C
3 = C
4 = Rc
4 = Rc
5 = R 5 = R
6 = Ls
6 = Ls
7 = Rs
7 = Rs
8 = LFE 8 = LFE
Analog Outputs 9-16
Talkback/Listenback
To
Various
Inputs
and
Outputs
1 = Ext Talkback Mic Input
2 = Listen Mic 1 Input
3 = Listen Mic 2 Input
4 = AFL Input 1
5 = AFL Input 2
6 = Mini Speaker Out 1 (L)
7 = Mini Speaker Out 2 (R)
8 = Talkback/Slate (Out)
DB-25 to DB-25
connectors
DB-25 to XLR
snakes
