40 GB 8 MM Tape Drive (CMTP169)

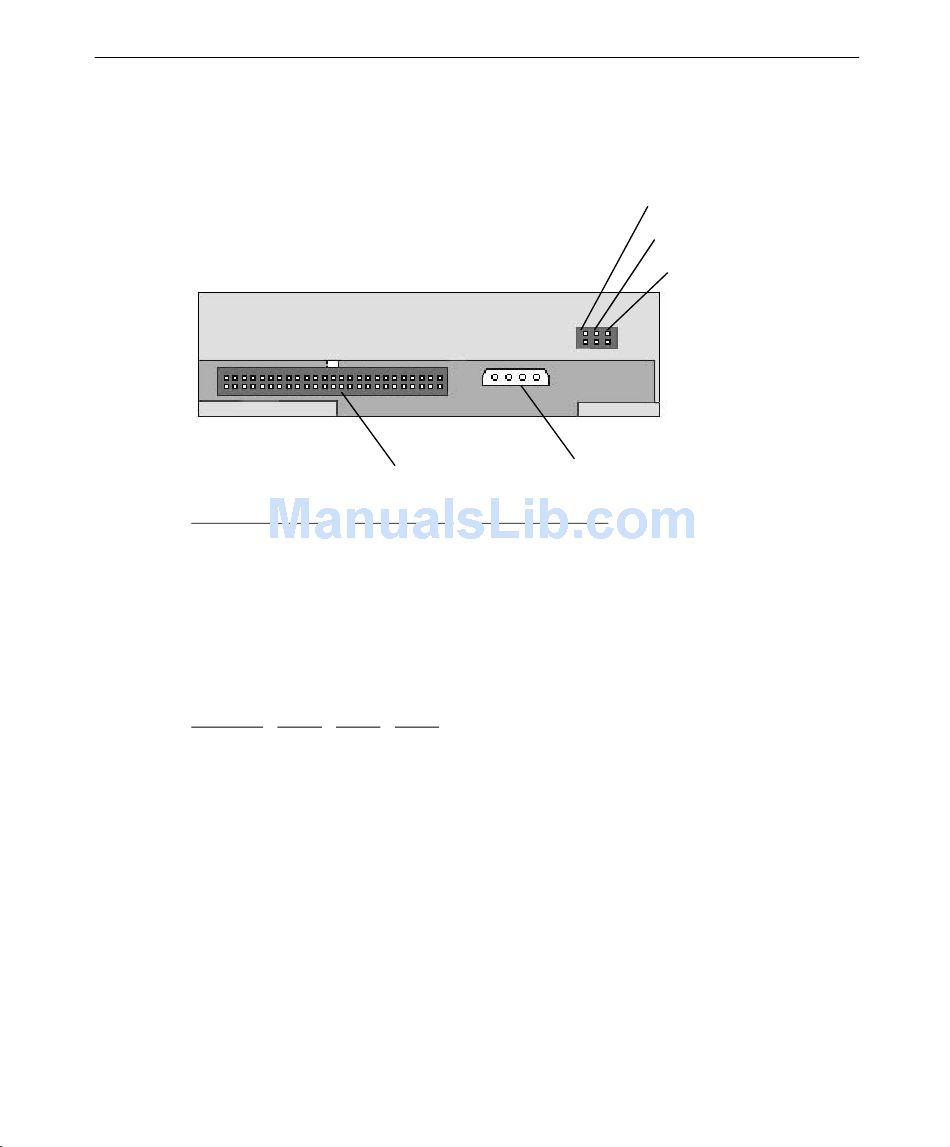

The following figure shows the back of the tape drive.
Device Connector
Power
SCSI
SCSI termination is permanently disabled.
Use jumpers as defined in the following table to set the SCSI ID.
SCSI ID
0
1
2
3
4
5
6
SCSI Connector
Cable
P2, P3, P5
MCBL253A
ID0
ID1
ID2
OFF
OFF
OFF
ON
OFF
OFF
OFF
ON
OFF
ON
ON
OFF
OFF
OFF
ON
ON
OFF
ON
OFF
ON
ON
Power Connector
Connects to
Power Supply
SCSI port on
option card
ID2
ID1
ID0
