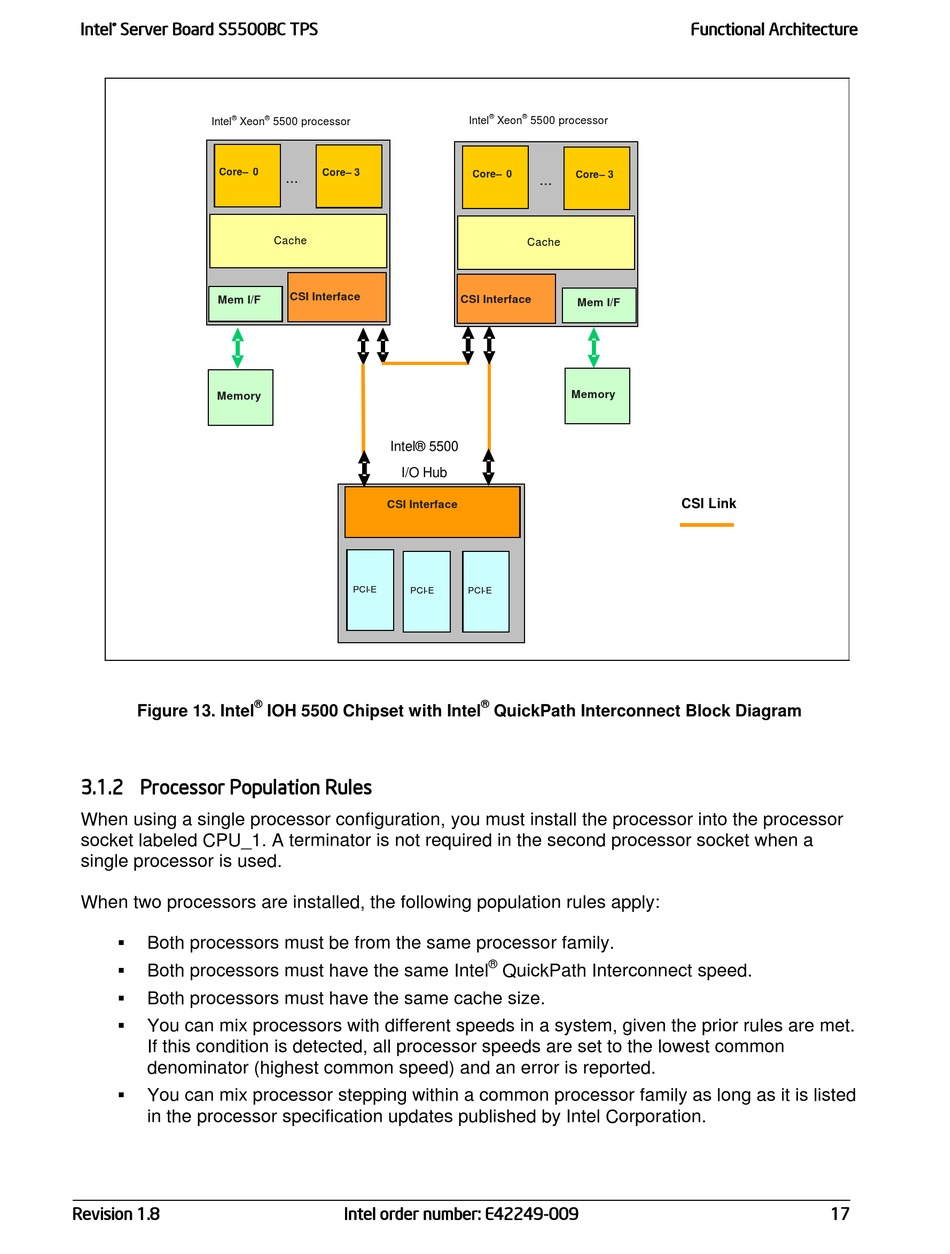

Figure 13. Intel

3.1.2 Processor Population Rules

When using a single processor configuration, you must install the processor into the processor
socket labeled CPU_1. A terminator is not required in the second processor socket when a
single processor is used.
When two processors are installed, the following population rules apply:

Both processors must be from the same processor family.

Both processors must have the same Intel

Both processors must have the same cache size.

You can mix processors with different speeds in a system, given the prior rules are met.
If this condition is detected, all processor speeds are set to the lowest common
denominator (highest common speed) and an error is reported.

You can mix processor stepping within a common processor family as long as it is listed
in the processor specification updates published by Intel Corporation.
