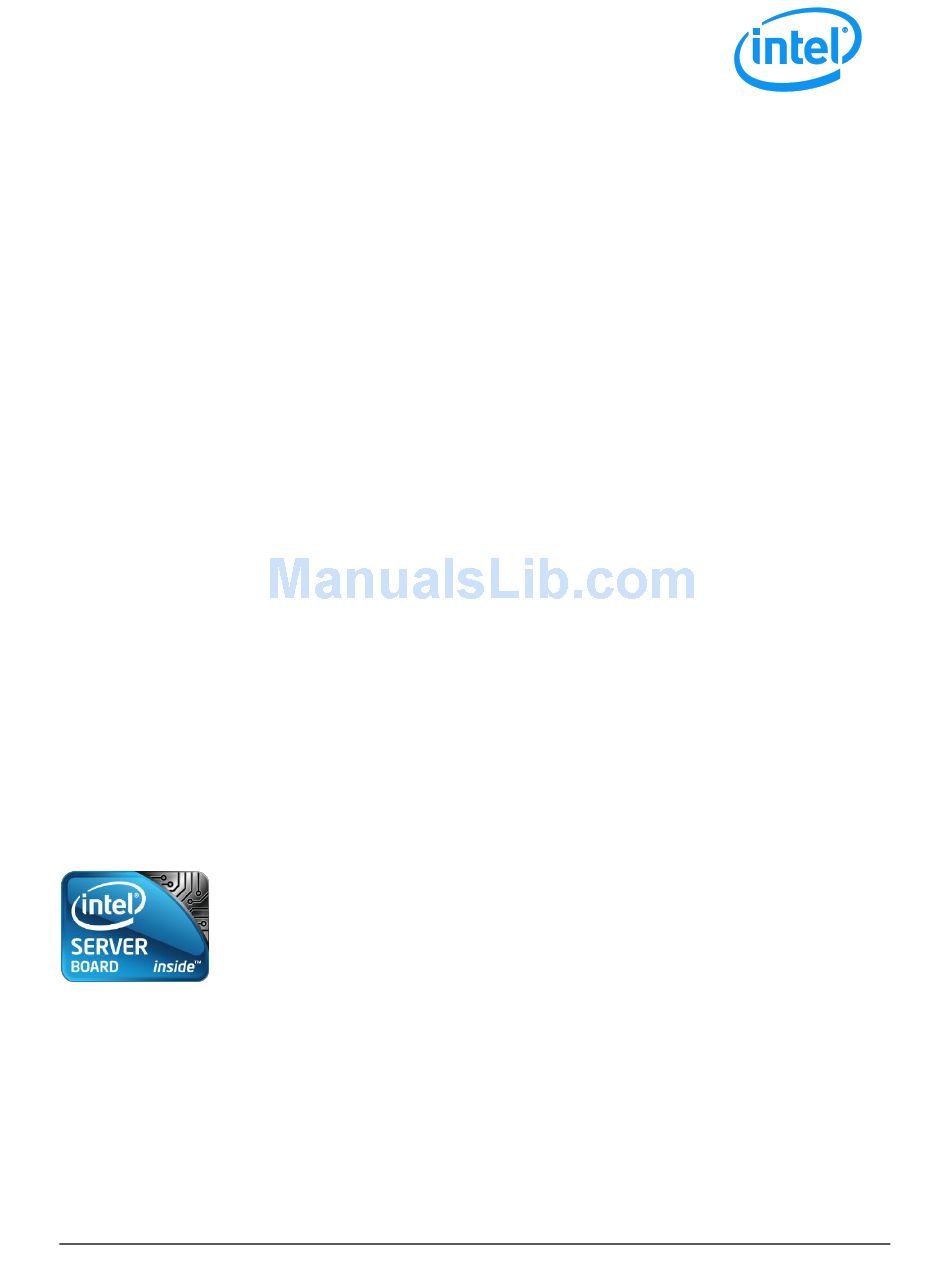

Intel
Server Board S2600CO Family
®
Technical Product Specification
Intel order number G42278-002
Revision 1.0
February, 2012
Enterprise Platforms and Services Division – Marketing

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S2600CO Family and is the answer not in the manual?

Questions and answers

Related Manuals for Intel S2600CO Family

Summary of Contents for Intel S2600CO Family

  • Page 1 Intel Server Board S2600CO Family ® Technical Product Specification Intel order number G42278-002 Revision 1.0 February, 2012 Enterprise Platforms and Services Division – Marketing...
  • Page 2 No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document. Except as provided in Intel's Terms and Conditions of Sale for such products, Intel assumes no liability whatsoever, and Intel disclaims any...

  • Page 3: Table Of Contents

    Intel® Server Board S2600CO Family TPS Table of Contents Table of Contents 1. Introduction .......................... 1 Chapter Outline ......................1 Server Board Use Disclaimer .................. 1 2. Product Overview ......................... 3 Server Board Connector and Component Layout ............ 5 Server Board Dimensional Mechanical Drawings ..........10 3.
  • Page 4 Table of Contents Intel® Server Board S2600CO Family TPS 6.1.1 IPMI 2.0 Features ....................52 6.1.2 Non IPMI Features ....................53 6.1.3 New Manageability Features ................. 54 Advanced Configuration and Power Interface (ACPI) ........... 56 Power Control Sources ..................56 BMC Watchdog ......................
  • Page 5 Intel® Server Board S2600CO Family TPS Table of Contents Media Redirection ....................81 7.2.1 Availability ......................82 7.2.2 Network Port Usage ....................82 8. On-board Connector/Header Overview ................83 Power Connectors ....................83 8.1.1 Main Power ......................83 8.1.2 CPU Power Connectors ..................83 8.1.3...
  • Page 6 Server Chassis ..............115 Appendix C: Integrated BMC Sensor Tables ................ 122 ® Appendix D: Intel Server Board S2600CO Family Specific Sensors ........ 135 Product ID .......................... 135 ACPI S3 Sleep State Support .................... 135 ® Processor Support for Intel Server Board S2600CO ............
  • Page 7 Intel® Server Board S2600CO Family TPS List of Figures List of Figures Figure 1. Major Board Components ....................6 ® Figure 2. Intel Light Guided Diagnostic LED Identification ............7 Figure 3. Jumper Block Identification .................... 8 Figure 4. Rear I/O Layout ......................9 Figure 5.

  • Page 8: List Of Tables

    Table 30. System Status LED State Definitions ................86 Table 31. Front Panel USB Connector Pin-out (USB5-6) ............88 Table 32. Intel Local Control Pane Connector Pin-out (LCP) ............. 88 Table 33. SATA Only Connector Pin-out (SATA_0 and SATA_1) ..........88 Table 34.
  • Page 9 Intel® Server Board S2600CO Family TPS List of Tables Table 40. Internal eUSB Connector Pin-out (eUSB_SSD) ............90 Table 41. RMM4_Lite Connector Pin-out (RMM4_Lite) .............. 91 Table 42. RMM4_NIC Connector Pin-out (RMM4_NIC) ............. 91 Table 43. TPM Connector Pin-out (TPM) ................... 91 Table 44.
  • Page 10 List of Tables Intel® Server Board S2600CO Family TPS Table 81. POST Error Beep Codes ..................152 Table 82. Integrated BMC Beep Codes ..................153 Revision 1.0 Intel order number G42278-002...
  • Page 11 Intel® Server Board S2600CO Family TPS List of Tables <This page is intentionally left blank.> Revision 1.0 Intel order number G42278-002...

  • Page 12: Introduction

    VLSI (Very-large-scale integration) and power delivery components that need adequate airflow ® to cool. Intel ensures through its own chassis development and testing that when Intel server building blocks are used together, the fully integrated system will meet the intended thermal requirements of these components.

  • Page 13: Intel Order Number G42278

    Introduction Intel® Server Board S2600CO Family TPS environmental conditions. Intel Corporation cannot be held responsible if components fail or the server board does not operate correctly when used outside any of the published operating or non-operating limits. Revision 1.0 Intel order number G42278-002...

  • Page 14: Product Overview

    Server Board S2600CO is a monolithic printed circuit board (PCB) assembly with features designed to support the pedestal server markets. It has two board SKUs, namely ® ® S2600CO4 and S2600COE. These server boards are designed to support the Intel Xeon ® ®...
  • Page 15 Add-in Card Slots Support up to six expansion slots  ® Slot 1: PCIe Gen II x4 electrical with x8 physical connector, routed from Intel C600  Chipset, support half-length card Slot 2: PCIe Gen III x16 electrical with x16 physical connector, routed from CPU1, ...

  • Page 16: Server Board Connector And Component Layout

    Intel® Server Board S2600CO Family TPS Product Overview Server Board Connector and Component Layout The following illustrations provide a general overview of the server board, identifying key feature and component locations. Each connector and major component is identified by a number or letter, and the description is given below the figure.

  • Page 17: Figure 1. Major Board Components

    Product Overview Intel® Server Board S2600CO Family TPS Callout Description Callout Description Battery Main Power USB_4 (Internal Type A USB Slot 4, PCI Express* Gen3 Connector) Slot 5, PCI Express* Gen3 Storage Upgrade key connector ® FAN BOARD_I2C (Intel Server...

  • Page 18: Figure 2. Intel Light Guided Diagnostic Led Identification

    Intel® Server Board S2600CO Family TPS Product Overview ® Figure 2. Intel Light Guided Diagnostic LED Identification See Chapter 10 for additional details. Revision 1.0 Intel order number G42278-002...

  • Page 19: Figure 3. Jumper Block Identification

    Product Overview Intel® Server Board S2600CO Family TPS Figure 3. Jumper Block Identification See Chapter 9 for additional details. Revision 1.0 Intel order number G42278-002...

  • Page 20: Figure 4. Rear I/O Layout

    Intel® Server Board S2600CO Family TPS Product Overview Callout Description Callout Description Serial Port A NIC Port 3 and 4 Video Diagnostics LED’s NIC Port 1, USB Port 0 (top) and 1 ID LED (bottom) NIC Port 2, USB Port 2 (top) and 3...

  • Page 21: Server Board Dimensional Mechanical Drawings

    Product Overview Intel® Server Board S2600CO Family TPS Server Board Dimensional Mechanical Drawings Figure 5. Mounting Hole Locations (1 of 2) Revision 1.0 Intel order number G42278-002...

  • Page 22: Figure 6. Mounting Hole Locations (2 Of 2)

    Intel® Server Board S2600CO Family TPS Product Overview Figure 6. Mounting Hole Locations (2 of 2) Revision 1.0 Intel order number G42278-002...

  • Page 23: Figure 7. Major Connector Pin-1 Locations

    Product Overview Intel® Server Board S2600CO Family TPS Figure 7. Major Connector Pin-1 Locations Revision 1.0 Intel order number G42278-002...

  • Page 24: Figure 8. Primary Side Keep-Out

    Intel® Server Board S2600CO Family TPS Product Overview Figure 8. Primary Side Keep-out Revision 1.0 Intel order number G42278-002...

  • Page 25: Figure 9. Secondary Side Keep-Out

    Product Overview Intel® Server Board S2600CO Family TPS Figure 9. Secondary Side Keep-out Revision 1.0 Intel order number G42278-002...

  • Page 26: Functional Architecture Overview

    Intel® Server Board S2600CO Family TPS Functional Architecture Overview Functional Architecture Overview ® The architecture and design of the Intel Server Board S2600CO is developed around the ® ® integrated features and functions of the Intel processor E5-2600 product family, the Intel ®...

  • Page 27: Processor Support

    Xeon processors are not supported on the Intel server boards described in this document. Visit the Intel web site for a complete updated list of supported processors. 3.1.1 Processor Socket Assembly Each processor socket of the server board is pre-assembled with an Independent Latching Mechanism (ILM) and Back Plate which allow for secure placement of the processor and processor heat to the server board.

  • Page 28: Processor Initializion Error Summary

    If this condition is detected, all processor core frequencies are set to the lowest common denominator (highest common speed) and an error is reported. Processors which have different Intel QuickPath (QPI) Link Frequencies may operate  together if they are otherwise compatible and if a common link frequency can be selected.

  • Page 29: Table 2. Mixed Processor Configurations Error Summary

    Functional Architecture Overview Intel® Server Board S2600CO Family TPS Minor: The message is displayed on the screen or on the Error Manager screen, and  the POST Error Code is logged to the SEL. The system continues booting in a degraded state.

  • Page 30: Processor Function Overview

    CPU, Integrated Memory Controller (IMC), and Integrated IO Module ® (IIO), have been combined into a single processor package and feature per socket; two Intel QuickPath Interconnect point to point links capable of up to 8.0 GT/s, up to 40 lanes of Gen 3 PCI Express* links capable of 8.0 GT/s, and 4 lanes of DMI2/PCI Express* Gen 2 interface with...

  • Page 31: Intel Quickpath Interconnect

    Functional Architecture Overview Intel® Server Board S2600CO Family TPS Processor Core Features: Up to 8 execution cores  ® Each core supports two threads (Intel Hyper-Threading Technology), up to 16 threads  per socket 46-bit physical addressing and 48-bit virtual addressing ...

  • Page 32: Integrated Memory Controller (Imc) And Memory Subsystem

    Intel® Server Board S2600CO Family TPS Functional Architecture Overview ® The Intel QuickPath Interconnect includes a cache coherency protocol to keep the distributed memory and caching structures coherent during system operation. It supports both low-latency source snooping and a scalable home snoop behavior. The coherency protocol provides for direct cache-to-cache transfers for optimal latency.

  • Page 33: Table 3. Udimm Support Guidelines

    Functional Architecture Overview Intel® Server Board S2600CO Family TPS o Demand and Patrol Scrubbing o DRAM Single Device Data Correction (SDDC) for any single x4 or x8 DRAM device. Independent channel mode supports x4 SDDC. x8 SDDC requires lockstep mode...

  • Page 34: Table 5. Lrdimm Support Guidelines

    1066, 1333 3.2.2.2 Memory Slot Identification and Population Rules Note: Although mixed DIMM configurations may be functional, Intel only performs platform validation on systems that are configured with identical DIMMs installed. ® Each installed processor provides four channels of memory. On the Intel...

  • Page 35: Figure 13. Intel ® Server Board S2600Co Dimm Slot Layout

    DIMM slot or DIMM farthest from the processor in a “fill-farthest” approach. In addition, when populating a Quad-rank DIMM with a Single- or Dual-rank DIMM in the same channel, the Quad-rank DIMM must be populated farthest from the processor. Intel Memory Reference Code (MRC) will check for correct DIMM placement.
  • Page 36 Mixing of LRDIMM with any other DIMM type is not allowed per platform.  Mixing of DDR3 voltages is not validated within a socket or across sockets by Intel. If  1.35V (DDR3L) and 1.50V (DDR3) DIMMs are mixed, the DIMMs will run at 1.50V.
  • Page 37 Functional Architecture Overview Intel® Server Board S2600CO Family TPS Note: Some server operating systems do not display the total physical memory installed. What is displayed is the amount of physical memory minus the approximate memory space used by system BIOS components. These BIOS components include, but are not limited to: ACPI (may vary depending on the number of PCI devices detected in the system) ...
  • Page 38 Intel® Server Board S2600CO Family TPS Functional Architecture Overview within the processor socket but not across sockets. DIMM organization in each slot of one channel must be identical to the DIMM in the corresponding slot of the other channel. This allows a single decode for both channels.
  • Page 39 Functional Architecture Overview Intel® Server Board S2600CO Family TPS 3.2.2.5.2.1 Correctable Memory ECC Error Handling A “Correctable ECC Error” is one in which a single-bit error in memory contents is detected and corrected by use of the ECC Hamming Code included in the memory data. For a correctable error, data integrity is preserved, but it may be a warning sign of a true failure to come.
  • Page 40 Intel® Server Board S2600CO Family TPS Functional Architecture Overview 3.2.2.5.5 Rank Sparing Mode Rank Sparing Mode enhances the system’s RAS capability by “swapping out” failing ranks of DIMMs. Rank Sparing is strictly channel and rank oriented. Each memory channel is a Sparing Domain.

  • Page 41: Processor Integrated I/O Module (Iio)

    Functional Architecture Overview Intel® Server Board S2600CO Family TPS What Mirroring primarily protects against is the possibility of an Uncorrectable ECC Error occurring with critical data “in process”. Without Mirroring, the system would be expected to “Blue Screen” and halt, possibly with serious impact to operation. But with Mirroring Mode in operation, an Uncorrectable ECC Error from one channel becomes a Mirroring Fail Over (MFO) event instead, in which the IMC retrieves the correct data from the “mirror image”...

  • Page 42: Figure 14. Functional Block Diagram Of Processor Iio Sub-System

    C600 Series Chipset, The PCIe slot 2 and 5 are routed from CPU 1. The PCIe slot 3, 4, 6 are routed from CPU 2. ® Slot 1: PCIe Gen II x4 electrical with x8 physical connector, routed from Intel C600 ...

  • Page 43: Table 7. Supported Intel Integrated Raid Modules

    Slot 4: PCIe Gen III x8 electrical with x8 connector, routed from CPU2, support full  length card; support Intel designed SAS RAID on Card (ROC) Module (PCIe slot form factor) Slot 5: PCIe Gen III x16 electrical with x16 connector, routed from CPU1, support full ...

  • Page 44: Table 8. Supported Intel Riser Card

    3.2.3.4 Network Interface ® Network connectivity is provided by means of an onboard Intel Ethernet Controller 1350-AM4 providing up to four 10/100/1000 Mb Ethernet ports. The NIC chip is supported by implementing x4 PCIe Gen3 signals from the IIO module of the CPU 1 processor.

  • Page 45: Intel C600-A Chipset Functional Overview

    Functional Architecture Overview Intel® Server Board S2600CO Family TPS Intel C600-A Chipset Functional Overview ® The following sub-sections will provide an overview of the key features and functions of the ® Intel C600-A chipset used on the server board. For more comprehensive chipset specific ®...

  • Page 46: Universal Serial Bus (Usb) Controller

    The server board is capable of supporting additional chipset embedded SAS, SATA, and RAID ® options from the SCU controller when configured with one of several available Intel RAID C600 Upgrade Keys. Upgrade keys install onto a 4-pin connector on the server board labeled “STRO_UPG_KEY”.

  • Page 47: Table 10. Intel Raid C600 Upgrade Key Options

    RKSAS8R5 Purple ® and Intel RSTe RAID 0,1,10 Additional information for the on-board RAID features and functionality can be found in the Intel ® RAID Software User’s Guide. The system includes support for two embedded software RAID options: ® Intel Embedded Server RAID Technology 2 (ESRT2) based on LSI* MegaRAID SW ...

  • Page 48: Manageability

    Supported RAID Levels – 0,1,5,10  o 4 Port SATA RAID 5 available standard (no option key required) ® o 8 Port SATA RAID 5 support provided with appropriate Intel RAID C600 Upgrade Key o No SAS RAID 5 support Maximum drive support = 32 (in arrays with 8 port SAS), 16 (in arrays with 4 port SAS), ...

  • Page 49: Integrated Baseboard Management Controller Overview

    Functional Architecture Overview Intel® Server Board S2600CO Family TPS functions no longer decode I/O, memory, or PCI configuration space. Also, no interrupts or power management events are generated from the disabled functions. Integrated Baseboard Management Controller Overview The server board utilizes the I/O controller, Graphics Controller, and Baseboard Management features of the Server Engines* Pilot-III Server Management Controller.

  • Page 50: Super I/O Controller

    Intel® Server Board S2600CO Family TPS Functional Architecture Overview Figure 18. Integrated BMC Hardware 3.4.1 Super I/O Controller The integrated super I/O controller provides support for the following features as implemented on the server board: Two Fully Functional Serial Ports, compatible with the 16C550 ...

  • Page 51: Graphics Controller And Video Support

    Functional Architecture Overview Intel® Server Board S2600CO Family TPS 3.4.1.1 Keyboard and Mouse Support The server board does not support PS/2 interface keyboards and mice. However, the system BIOS recognizes USB specification-compliant keyboard and mice. 3.4.1.2 Wake-up Control The super I/O contains functionality that allows various events to power on and power off the system.

  • Page 52: Baseboard Management Controller

    Intel® Server Board S2600CO Family TPS Functional Architecture Overview resources and is considered the secondary video device. The BIOS Setup utility provides options to configure the feature as follows: Table 12. Video mode On-board Video Enabled Disabled Dual Monitor Video Shaded if on-board video is set to "Disabled"...
  • Page 53 Functional Architecture Overview Intel® Server Board S2600CO Family TPS 3.4.3.1 Remote Keyboard, Video, Mourse, and Storage (KVMS) Support USB 2.0 interface for Keyboard, Mouse and Remote storage such as CD/DVD ROM and  floppy USB 1.1/USB 2.0 interface for PS2 to USB bridging, remote Keyboard and Mouse ...

  • Page 54: Technology Support

    DMAR. Each RMRR has a Device Scope listing the devices in the system that can cause a DMA request to the region. For more information on the DMAR table and the DRHD entry format, refer to the Intel ® Virtualization Technology for Directed I/O Architecture Specification. For more general Revision 1.0...

  • Page 55: Intel Intelligent Power Node Manager

    Technology Support Intel® Server Board S2600CO Family TPS information about VT-x, VT-d, and VT-c, a good reference is Enabling Intel ® Virtualization Technology Features and Benefits White Paper. Intel Intelligent Power Node Manager ® Data centers are faced with power and cooling challenges that are driven by increasing numbers of servers deployed and server density in the face of several data center power and cooling constraints.

  • Page 56: Hardware Requirements

    Intel® Server Board S2600CO Family TPS Technology Support ® Following are the some of the applications of Intel Intelligent Power Node Manager technology. Platform Power Monitoring and Limiting: The ME/NM monitors platform power  consumption and hold average power over duration. It can be queried to return actual power at any given instance.

  • Page 57: System Security

    System Security Intel® Server Board S2600CO Family TPS System Security BIOS Password Protection The BIOS uses passwords to prevent unauthorized tampering with the server setup. Passwords can restrict entry to the BIOS Setup, restrict use of the Boot Popup menu, and suppress automatic USB device reordering.

  • Page 58: Trusted Platform Module (Tpm) Support

    Intel® Server Board S2600CO Family TPS System Security prompts for a password, and can only be used with the Administrator password. Also, when a User password is defined, it suppresses the USB Reordering that occurs, if enabled, when a new USB boot device is attached to the system. A User is restricted from booting in anything other than the Boot Order defined in the Setup by an Administrator.

  • Page 59: Physical Presence

    5.2.3.1 Security Screen To enter the BIOS Setup, press the F2 function key during boot time when the OEM or Intel logo displays. The following message displays on the diagnostics screen and under the Quiet Boot logo screen: Revision 1.0...

  • Page 60: Figure 19. Setup Utility - Tpm Configuration Screen

    When the Setup is entered, the Main screen displays. The BIOS Setup utility provides the Security screen to enable and set the user and administrative passwords and to lock out the ® front panel buttons so they cannot be used. The Intel Server Board S5520URT provides TPM settings through the security screen.

  • Page 61: Intel Trusted Execution Technology

    ® Technology enabled (both VT-x and VT-d), an Intel Trusted Execution Technology-enabled ® processor, chipset and BIOS, Authenticated Code Modules, and an Intel Trusted Execution Technology compatible measured launched environment (MLE). The MLE could consist of a Revision 1.0 Intel order number G42278-002...
  • Page 62 Technology requires the system to include a TPM v1.2, as defined by the Trusted Computing Group TPM PC Client Specifications, Revision 1.2. When available, Intel Trusted Execution Technology can be enabled or disabled in the processor from a BIOS Setup option.

  • Page 63: Platform Management Functional Overview

    This chapter provides a high level overview of the platform management features and functionality implemented on the server board. For more in depth and design level Platform Management information, please reference the BMC Core Firmware External Product ® Specification (EPS) and BIOS Core External Product Specification (EPS) for Intel Server ® ®...

  • Page 64: Non Ipmi Features

    Intel® Server Board S2600CO Family TPS Platform Management Functional Overview BMC self-test: The BMC performs initialization and run-time self-tests and makes results  available to external entities. See also the Intelligent Platform Management Interface Specification Second Generation v2.0. 6.1.2 Non IPMI Features The BMC supports the following non-IPMI features.

  • Page 65: New Manageability Features

    S2600CO Server Platforms offer a number of changes and additions to the manageability features that are supported on the previous generation of servers. The following is a list of the ® more significant changes that are common to this generation Integrated BMC based on Intel ® Xeon...
  • Page 66 Intel® Server Board S2600CO Family TPS Platform Management Functional Overview o Redundant BMC boot blocks to avoid possibility of a corrupted boot block resulting in a scenario that prevents a user from updating the BMC. o BMC System Management Health Monitoring Revision 1.0...

  • Page 67: Advanced Configuration And Power Interface (Acpi)

    Platform Management Functional Overview Intel® Server Board S2600CO Family TPS Advanced Configuration and Power Interface (ACPI) The server board has support for the following ACPI states: Table 15. ACPI Power States State Supported Description Working. The front panel power LED is on (not controlled by the BMC).

  • Page 68: Bmc Watchdog

    Intel® Server Board S2600CO Family TPS Platform Management Functional Overview Source External Signal Name or Internal Capabilities Subsystem Turn power on WOL (Wake On LAN) BMC Watchdog The BMC FW is increasingly called upon to perform system functions that are time-critical in that failure to provide these functions in a timely manner can result in system or component ®...

  • Page 69: Sensor Monitoring

    Platform Management Functional Overview Intel® Server Board S2600CO Family TPS FSB2 refers to the FRB algorithm that detects system failures during POST. The BIOS uses the BMC watchdog timer to back up its operation during POST. The BIOS configures the watchdog timer to indicate that the BIOS is using the timer for the FRB2 phase of the boot operation.

  • Page 70: System Event Log (Sel)

    Any command that results in an overflow of the SEL beyond the allocated space is rejected with an “Out of Space” IPMI completion code (C4h). Events logged to the SEL can be viewed using Intel’s SELVIEW utility, Embedded Web Server, and Active System Console.

  • Page 71: Fan Profiles

    Platform Management Functional Overview Intel® Server Board S2600CO Family TPS 6.9.2 Fan Profiles The server system supports multiple fan control profiles to support acoustic targets and American Society of Heating, Refrigerating and Air Conditioning Engineers (ASHRAE) compliance. The BIOS Setup utility can be used to choose between meeting the target acoustic level or enhanced system performance.

  • Page 72: Figure 20. High Level Fan Speed Control Structure

     On-board Ethernet controller temperature sensors (support for this is specific to the  Ethernet controller being used) Add-in Intel SAS/IO module temperature sensor(s) (if present)  Power supply thermal sensors (only available on PMBus-compliant power supplies)  The following illustration provides a simple model showing the fan speed control structure that implements the resulting fan speeds.

  • Page 73: Memory Thermal Throttling

    Platform Management Functional Overview Intel® Server Board S2600CO Family TPS 6.9.4 Memory Thermal Throttling The server board provides support for system thermal management through open loop throttling (OLTT) and closed loop throttling (CLTT) of system memory. Normal system operation uses closed-loop thermal throttling (CLTT) and DIMM temperature monitoring as major factors in overall thermal and acoustics management.

  • Page 74: User Model

    Intel® Server Board S2600CO Family TPS Platform Management Functional Overview Table 18. Standard ID Channel Assignments Channel ID Interface Support Sessions Primary IPMB LAN 1 LAN 2 ® LAN 3 (Provided by the Intel Dedicated Server Management NIC) Reserved Secondary IPMB...

  • Page 75: Lan Interface

    Platform Management Functional Overview Intel® Server Board S2600CO Family TPS 6.10.3 LAN interface The BMC implements both the IPMI 1.5 and IPMI 2.0 messaging models. These provide out-of- band local area network (LAN) communication between the BMC and the network.
  • Page 76 Intel® Server Board S2600CO Family TPS Platform Management Functional Overview In addition to the use of an RMM4 add-in card for a dedicated management channel, on system that support multiple Ethernet ports on the baseboard, the system BIOS provides a setup option to allow one of these baseboard ports to be dedicated to the BMC for manageability purpose.
  • Page 77 Platform Management Functional Overview Intel® Server Board S2600CO Family TPS BMC LAN1 (Baseboard NIC port) ----- 100Mb (10Mb in DC off state)  BMC LAN2 (Baseboard NIC port) ----- 100Mb (10Mb in DC off state)  BMC LAN3 (Dedicated NIC) ----- 1000Mb (10Mb in DC off state) ...
  • Page 78 Intel® Server Board S2600CO Family TPS Platform Management Functional Overview CLP) interface (ssh). There is no standard yet on how IPMI RMCP or RMCP + should operate over IPv6 so that is not currently supported. 6.10.3.4 LAN Failover The BMC FW provides a LAN failover capability such that the failure of the system HW associated with one LAN link will result in traffic being rerouted to an alternate link.
  • Page 79 Platform Management Functional Overview Intel® Server Board S2600CO Family TPS The BIOS does not monitor the value of this parameter, and it does not execute DHCP for the BMC under any circumstances, regardless of the BMC configuration. 6.10.3.5.2 Static LAN Configuration Parameters...
  • Page 80 Intel® Server Board S2600CO Family TPS Platform Management Functional Overview If the physical LAN connection is lost (that is, the cable is unplugged), the BMC will not re- initiate the DHCP process when the connection is re-established. 6.10.3.5.4 DHCP-related LAN Configuration Parameters...

  • Page 81: Address Resoluton Protocol (Arp)

    Platform Management Functional Overview Intel® Server Board S2600CO Family TPS 6.10.4 Address Resoluton Protocol (ARP) The BMC can receive and respond to ARP requests on BMC NICs. Gratuitous ARPs supported, and disabled by default. 6.10.5 Internet Control Message Protocol (ICMP) The BMC supports the following ICMP message types targeting the BMC over integrated NICs: Echo request (ping): The BMC sends an Echo Reply.

  • Page 82: Secure Shell (Ssh)

    Intel® Server Board S2600CO Family TPS Platform Management Functional Overview If the BMC is first configured for static (prior to enabling VLAN), when VLAN is enabled,  the BMC has the same IP address that was configured before. It is left to management application to configure a different IP address if that is not suitable for VLAN.

  • Page 83: Lan Alterting

    Platform Management Functional Overview Intel® Server Board S2600CO Family TPS Event Filter Number Offset Mask Events Uncorrectable ECC BIOS POST error BIOS: POST code error FRB2 Watchdog Timer expiration for FRB2 Policy Correction Time Node Manager Power down, power cycle, and reset...

  • Page 84: Sm-Clp (Sm-Clp Lite)

    Intel® Server Board S2600CO Family TPS Platform Management Functional Overview 6.10.12 SM-CLP (SM-CLP Lite) SMASH refers to Systems Management Architecture for Server Hardware. SMASH is defined by a suite of specifications, managed by the DMTF, that standardize the manageability interfaces for server hardware. CLP refers to Command Line Protocol. SM-CLP is defined by the Server Management Command Line Protocol Specification (SM-CLP) ver1.0, which is part...
  • Page 85 Embedded Platform Debug feature - Allow the user to initiate a “diagnostic dump” to a  file that can be sent to Intel for debug purposes. Virtual Front Panel. The Virtual Front Panel provides the same functionality as the local ...

  • Page 86: Virtual Front Panel

    GUI, as well as through host and remote IPMI methods, for the purpose of sending to an Intel engineer for an enhanced debugging capability. The files are compressed, encrypted, and password protected. The file is not meant to be Revision 1.0...
  • Page 87 Platform Management Functional Overview Intel® Server Board S2600CO Family TPS viewable by the end user but rather to provide additional debugging capability to an Intel support engineer. A list of data that may be captured using this feature includes but is not limited to: Platform sensor readings –...

  • Page 88: Table 20. Diagnostic Data

    File #2 can be viewed by Intel partners who have signed an NDA with Intel and its contents are restricted to specific data items specified in this with the exception of the BMC syslog messages and power supply “black box”...

  • Page 89: Data Center Management Interface (Dcmi)

    Platform Management Functional Overview Intel® Server Board S2600CO Family TPS 6.10.16 Data Center Management Interface (DCMI) The DCMI Specification is an emerging standard that is targeted to provide a simplified management interface for Internet Portal Data Center (IPDC) customers. It is expected to become a requirement for server platforms which are targeted for IPDCs.

  • Page 90: Advanced Management Features Support (Rmm4)

    Advanced Management Features Support (RMM4) Advanced Management Features Support (RMM4) The integrated baseboard management controller has support for advanced management ® features which are enabled when an optional Intel Remote Management Module 4 (RMM4) is ® installed. The Intel RMM4 is available as two option kits: ®...

  • Page 91: Remote Console

    Advanced Management Features Support (RMM4) Intel® Server Board S2600CO Family TPS KVM redirection includes a “soft keyboard” function. The “soft keyboard” is used to simulate an entire keyboard that is connected to remote system. The “soft keyboard” functionality supports the following layouts: English, Dutch, French, German, Italian, Russian, and Spanish.

  • Page 92: Security

    Intel® Server Board S2600CO Family TPS Advanced Management Features Support (RMM4) transitions from graphics to text or vice-versa. The responsiveness may be slightly delayed depending on the bandwidth and latency of the network. Enabling KVM and/or media encryption will degrade performance. Enabling video compression provides the fastest response while disabling compression provides better video quality.

  • Page 93: Availability

    Advanced Management Features Support (RMM4) Intel® Server Board S2600CO Family TPS Either IDE (CD-ROM, floppy) or USB devices can be mounted as a remote device to the  server. It is possible to boot all supported operating systems from the remotely mounted device ...

  • Page 94: On-Board Connector/Header Overview

    Intel® Server Board S2600CO Family TPS On-board Connector/Header Overview On-board Connector/Header Overview This section identifies the location and pin-out for on-board connectors and headers of the server board that provide an interface to system options/features, on-board platform management, or other user accessible options/features.

  • Page 95: Pcie Card Power Connectors

    On-board Connector/Header Overview Intel® Server Board S2600CO Family TPS 8.1.3 PCIe Card Power Connectors The server board includes one 4-pin power connectors that provide support for add-in cards that require more power than is supported from the PCIe slots direct. The connector is labeled as OPT_12V_PWR.

  • Page 96: Table 28. Power/Sleep Led Functional States

    Intel® Server Board S2600CO Family TPS On-board Connector/Header Overview Signal Name Signal Name NIC#3 Link LED NIC#4 Link LED 8.2.1.1 Power/Sleep Button and LED Support Pressing the Power button will toggle the system power on and off. This button also functions as a sleep button if enabled by an ACPI compliant operating system.

  • Page 97: Table 29. Nmi Signal Generation And Event Logging

    On-board Connector/Header Overview Intel® Server Board S2600CO Family TPS Table 29. NMI Signal Generation and Event Logging Signal Causal Event Front Panel Diag Interrupt Sensor Event Logging Support Generation Chassis Control command (pulse diagnostic interrupt) – Front panel diagnostic interrupt button pressed...
  • Page 98 Intel® Server Board S2600CO Family TPS On-board Connector/Header Overview Color State Criticality Description failed/disabled but functional memory remains available) Correctable Errors over a threshold and migrating to a spare DIMM (memory sparing). This indicates that the user no longer has spared DIMMs indicating a redundancy lost condition.

  • Page 99: Front Panel Usb Connector

    The server board includes a 7-pin connector that is used when the system is configured with Intel Local Control Panel with LCD support. On the server board this connector is labeled LCPand is located on the front edge of the board. The following table provides the pin-out for this connector.

  • Page 100: Sata/Sas Connectors

    ® ® ® The server board provides one connector to support Intel RAID C600 Upgrade Key. The Intel RAID C600 Upgrade Key is a small PCB board that enables different versions of RAID 5 software stack and/or upgrade from SATA to SAS storage functionality. On the server board, the connector is labeled as STRO UPG KEY.

  • Page 101: Hdd Led Header

    On-board Connector/Header Overview Intel® Server Board S2600CO Family TPS Signal Name SMB_HSBP_3V3STBY_CLK 8.3.6 HDD LED Header The server board includes a 2-pin hard drive activity LED header used with some SATA/SAS controller add-in cards. On the server board, this header is labeled HDD LED. The header has the following pin-out.

  • Page 102: Rmm4_Nic Connector

    Intel® Server Board S2600CO Family TPS On-board Connector/Header Overview Table 41. RMM4_Lite Connector Pin-out (RMM4_Lite) Signal Name Signal Name P3V3_AUX SPI_IBMC_BK_DI SPI_IBMC_BK_CLK SPI_IBMC_BK_DO SPI_IBMC_BK_CS_N 8.4.2 RMM4_NIC connector Table 42. RMM4_NIC Connector Pin-out (RMM4_NIC) Signal Name Signal Name 3V3_AUX MDIO 3V3_AUX...

  • Page 103: Ipmb Connector

    On-board Connector/Header Overview Intel® Server Board S2600CO Family TPS Table 45. Chassis Intrusion Header Pin-out (CHAS INTR) Signal Description FP_CHASSIS_INTRUSION Table 46. Chassis Instrusion Header State Description Header state Description PINS 1 and 2 CLOSED IBMC CHASSIS_N is pulled HIGH. Chassis cover is closed.

  • Page 104: Cpu Fan Connector

    Intel® Server Board S2600CO Family TPS On-board Connector/Header Overview 8.5.2 CPU FAN Connector The server board also provides support for two CPU cooling fans. Each 4-pin connector is monitored and controlled by platform management. On the server board each CPU fan connector is labeled as CPU_1FAN and CPU_2FAN.

  • Page 105: Other Connectors And Headers

    On-board Connector/Header Overview Intel® Server Board S2600CO Family TPS Signal Name BLUE P5V (fuse not populated) DDC_SDA HSYNC VSYNC DDC_SCL Figure Video Connector Pin-out Other Connectors and Headers 8.7.1 FAN BOARD_I2C Connector ® Note: Only Intel Server Board S2600CO4 includes this FAN BOARD_I2C connector.

  • Page 106: Table 55. Ieee 1394B Connector Pin Out

    Intel® Server Board S2600CO Family TPS On-board Connector/Header Overview The server board includes two red 10-pin IEEE 1394b connectors. On the server board, this header is labeled FRONT_1394B_0 and FRONT_1394B_1. The header has the following pin- out. Table 55. IEEE 1394b Connector pin out...

  • Page 107: Reset And Recovery Jumpers

    Reset and Recovery Jumpers Intel® Server Board S2600CO Family TPS Reset and Recovery Jumpers The server board includes several jumper blocks which are used to as part of a process to restore a board function back to a normal functional state. The following diagram and sections identify the location of each jumper block and provides a description of their use.

  • Page 108: Bios Default (A.k.a Cmos Clear) And Password Reset Usage Procedure

    The BIOS Default (that is, CMOS Clear) and Password Reset recovery features are designed such that the desired operation can be achieved with minimal system downtime. The usage procedure for these two features has changed from previous generation Intel server boards. The following procedure outlines the new usage model.

  • Page 109: Integrated Bmc Force Update Procedure

    Reset and Recovery Jumpers Intel® Server Board S2600CO Family TPS 5. Power up the server and wait 10 seconds or until POST completes. 6. Power down the server. 7. Open the chassis and move the jumper back to the default position (covering pins 1 and 2).

  • Page 110: Bios Recovery Jumper

    Intel® Server Board S2600CO Family TPS Reset and Recovery Jumpers firmware update process fails due to ME not being in the proper update state, the server board provides an Integrated BMC Force Update jumper, which forces the ME into the proper update state.

  • Page 111: 10. Light Guided Diagnostics

    Light Guided Diagnostics Intel® Server Board S2600CO Family TPS 10. Light Guided Diagnostics The server board includes several on-board LED indicators to aid troubleshooting various board level faults. This section provides a description of the location and function of each LED on the server boards.

  • Page 112: Figure 23. Fan Fault Led's Location

    Intel® Server Board S2600CO Family TPS Light Guided Diagnostics Figure 23. Fan Fault LED’s Location Revision 1.0 Intel order number G42278-002...

  • Page 113: 10.3 Dimm Fault Leds

    Light Guided Diagnostics Intel® Server Board S2600CO Family TPS 10.3 DIMM Fault LEDs The server board provide memory fault LED for each DIMM socket. These LEDs are located as shown in the following figure. The DIMM fault LED illuminates when the corresponding DIMM slot has memory installed and a memory error occurs.

  • Page 114: System Id Led

    Intel® Server Board S2600CO Family TPS Light Guided Diagnostics Callout Description System Status LED System ID LED LSB 1 2 3 4 5 6 MSB POST Code Diagnostic LEDs Figure 25. Location of System Status, System ID and POST Code Diagnostic LEDs 10.4.1...

  • Page 115: System Status Led

    Light Guided Diagnostics Intel® Server Board S2600CO Family TPS 10.4.2 System Status LED The bi-color (green/amber) System Status LED operates as follows: Table 57. System Status LED Color State Criticality Description Green Solid on System OK System booted and ready.

  • Page 116: Table 58. Post Code Diagnostic Leds

    Intel® Server Board S2600CO Family TPS Light Guided Diagnostics Table 58. POST Code Diagnostic LEDs A. Diagnostic LED #7 (MSB LED) E. Diagnostic LED #3 B. Diagnostic LED #6 F. Diagnostic LED #2 C. Diagnostic LED #5 G. Diagnostic LED #1 D.

  • Page 117: 11. Environmental Limits Specification

    Disclaimer Note: Intel Corporation server boards contain a number of high-density VLSI and power delivery components that need adequate airflow to cool. Intel ensures through its own chassis development and testing that when Intel server building blocks are used together, the fully integrated system will meet the intended thermal requirements of these components.

  • Page 118: Table 60. Mtbf Estimate

    Intel® Server Board S2600CO Family TPS Environmental Limits Specification electrical and/or thermal stress and for device maturity. You should view MTBF estimates as “reference numbers” only. Calculation Model: Telcordia* Issue 1, method I case 3  Operating Temperature: Server in 30° C ambient air ...

  • Page 119: 12. Power Supply Specification Guidelines

    Note: The power supply data provided in this section is for reference purposes only. It reflects Intel’s own DC power out requirements for a 550W power supply as used in an Intel designed 4U server platform. The intent of this section is to provide customers with a guide to assist in defining and/or selecting a power supply for custom server platform designs that utilize the server boards detailed in this document.

  • Page 120: Standby Output

    Intel® Server Board S2600CO Family TPS Power Supply Specification Guidelines 3.3V 5.0V 12V1 12V2 12V3 -12V 5.0Vstby Total 3.3V/5V Power Power Power Load4 13.1 13.1 Load5 Load6 Load7 12.1.3 Standby Output The 5VSB output is present when an AC input greater than the power supply turn on voltage is applied.

  • Page 121: Table 65. Capacitive Loading Conditions

    Power Supply Specification Guidelines Intel® Server Board S2600CO Family TPS Table 65. Capacitive Loading Conditions Output Units +3.3V 5000 F 5000 F +12V 8000 F -12V F +5VSB F 12.1.3.4 Grounding The output ground of the pins of the power supply provides the output power return path. The output connector ground pins are connected to the safety ground (power supply enclosure).

  • Page 122: Figure 26. Differential Noise Test Setup

    Intel® Server Board S2600CO Family TPS Power Supply Specification Guidelines LOAD MUST BE AC HOT ISOLATED FROM POWER SUPPLY LOAD THE GROUND OF RETURN AC NEUTRAL THE POWER 10uF SUPPLY .1uF AC GROUND GENERAL NOTES: LOAD THE OUTPUT WITH ITS MINIMUM LOAD CURRENT.

  • Page 123: Figure 27. Output Voltage Timing

    Power Supply Specification Guidelines Intel® Server Board S2600CO Family TPS Vout Vout vout_off vout_rise vout_on Figure 27. Output Voltage Timing Table 68. Turn On/Off Timing Item Description UNITS Delay from AC being applied to 5VSB being within sb_on_delay 1500 regulation.

  • Page 124: Figure 28. Turn On/Off Timing (Power Supply Signals)

    Intel® Server Board S2600CO Family TPS Power Supply Specification Guidelines AC Input vout_holdup Vout pwok_low AC_on_delay pwok_off sb_on_delay pwok_on pwok_off sb_on_delay pwok_on PWOK pson_pwok pwok_holdup 5VSB sb_vout 5VSB holdup pson_on_delay PSON AC turn on/off cycle PSON turn on/off cycle Figure 28. Turn On/Off Timing (Power Supply Signals) Revision 1.0...

  • Page 125: Appendix A: Integration And Usage Tips

    Appendix A: Integration and Usage Tips Intel® Server Board S2600CO Family TPS Appendix A: Integration and Usage Tips When adding or removing components or peripherals from the server board, AC power  must be removed. With AC power plugged into the server board, 5-V standby is still present even though the server board is powered off.

  • Page 126: Appendix B: Compatiable Intel Server Chassis

    Intel® Server Board S2600CO Family TPS Appendix B: Compatiable Intel® Server Chassis Appendix B: Compatiable Intel Server Chassis ® ® Intel Server Chassis P4000M Family is 4U pedestal, 25’’ length server chassis that is designed ® to support Intel Server Board S2600CO. It also provides a rackable feature.

  • Page 127: Figure 30. Intel Server Chassis P4308Xxmhgc

    Appendix B: Compatiable Intel® Server Chassis Intel® Server Board S2600CO Family TPS 750-W Hot Swap Power Supply (Two) AC Input Power Connector (Two) C. I/O Ports D. Alternate RMM4 Knockout PCI Add-in Board Slot Covers Serial Port Knockout G. A Kensington* Cable Lock Mounting Hole H.

  • Page 128: Figure 31. Chassis/System Product Code Naming Conventions

    Intel® Server Board S2600CO Family TPS Appendix B: Compatiable Intel® Server Chassis The following figure shows the server chassis/system product code naming conventions: Figure 31. Chassis/System Product Code Naming Conventions ® The Intel Server Chassis P4000M family comes with the following configurations: 1.

  • Page 129: Table 69. Intel Server Chassis P4000M Family Features

    Appendix B: Compatiable Intel® Server Chassis Intel® Server Board S2600CO Family TPS 13. P4216XXMHEN – one 550-W non-redundant fixed PSU, two non-redundant fixed 120x38mm system fans and up to sixteen 2.5" hot-swap hard drives. 14. P4308XXMHGR – two 750-W redundant hot-swap PSU, two non-redundant fixed 120x38mm system fans and up to eight 3.5"...
  • Page 130 Power Button with LED, Reset Button, NMI Button, ID Button with LED, Four NIC LEDs, Hard drive activity LED, System status LED, two USB ports, Optional front serial port/VGA port Appearance Color: Cosmetic black (GE 701 or equivalent), service Intel blue, hot swap Intel green. Support for Intel standard front panel or LCD Dimensions 17.24 in (438 mm) x 6.81 in (173mm) x 25 in (612 mm) (Height X Width X Depth)
  • Page 131 Power Button with LED, Reset Button, NMI Button, ID Button with LED, Four NIC LEDs, Hard drive activity LED, System status LED, two USB ports, Optional front serial port/VGA port Appearance Color: Cosmetic black (GE 701 or equivalent), service Intel blue, hot swap Intel green. Support for Intel standard front panel or LCD Dimensions 17.24 in (438 mm) x 6.81 in (173mm) x 25 in (612 mm) (Height X Width X Depth)
  • Page 132 Intel® Server Board S2600CO Family TPS Appendix B: Compatiable Intel® Server Chassis ® ® For additional support on Intel Server Chassis, please refer Intel Server Chassis P4000M Family Technical Product Specification. Revision 1.0 Intel order number G42278-002...

  • Page 133: Appendix C: Integrated Bmc Sensor Tables

    Intel® Server Board S2600CO Family TPS Appendix C: Integrated BMC Sensor Tables This appendix provides BMC core sensor information common to all Intel server boards within this generation of product. Specific server boards and/or server platforms may only implement a sub-set of sensors and/or may include additional sensors.
  • Page 134 Intel® Server Board S2600CO Family TPS Appendix C: Integrated BMC Sensor Tables  Rearm Sensors The rearm is a request for the event status for a sensor to be rechecked and updated upon a transition between good and bad states. Rearming the sensors can be done manually or automatically.

  • Page 135: Table 70. Bmc Core Sensors

    Appendix C: Integrated BMC Sensor Tables Intel® Server Board S2600CO Family TPS Table 70. BMC Core Sensors Full Sensor Name Sensor Platform Sensor Type Event / Event Offset Triggers Contrib. To Assert Readable Event Rearm Stand- (Sensor name in SDR)
  • Page 136 Intel® Server Board S2600CO Family TPS Appendix C: Integrated BMC Sensor Tables Full Sensor Name Sensor Platform Sensor Type Event / Event Offset Triggers Contrib. To Assert Readable Event Rearm Stand- (Sensor name in SDR) Applicability Reading System Status / De-...
  • Page 137 Appendix C: Integrated BMC Sensor Tables Intel® Server Board S2600CO Family TPS Full Sensor Name Sensor Platform Sensor Type Event / Event Offset Triggers Contrib. To Assert Readable Event Rearm Stand- (Sensor name in SDR) Applicability Reading System Status / De-...
  • Page 138 Intel® Server Board S2600CO Family TPS Appendix C: Integrated BMC Sensor Tables Full Sensor Name Sensor Platform Sensor Type Event / Event Offset Triggers Contrib. To Assert Readable Event Rearm Stand- (Sensor name in SDR) Applicability Reading System Status / De-...
  • Page 139 Appendix C: Integrated BMC Sensor Tables Intel® Server Board S2600CO Family TPS Full Sensor Name Sensor Platform Sensor Type Event / Event Offset Triggers Contrib. To Assert Readable Event Rearm Stand- (Sensor name in SDR) Applicability Reading System Status / De-...
  • Page 140 Intel® Server Board S2600CO Family TPS Appendix C: Integrated BMC Sensor Tables Full Sensor Name Sensor Platform Sensor Type Event / Event Offset Triggers Contrib. To Assert Readable Event Rearm Stand- (Sensor name in SDR) Applicability Reading System Status / De-...
  • Page 141 Appendix C: Integrated BMC Sensor Tables Intel® Server Board S2600CO Family TPS Full Sensor Name Sensor Platform Sensor Type Event / Event Offset Triggers Contrib. To Assert Readable Event Rearm Stand- (Sensor name in SDR) Applicability Reading System Status / De-...
  • Page 142 Intel® Server Board S2600CO Family TPS Appendix C: Integrated BMC Sensor Tables Full Sensor Name Sensor Platform Sensor Type Event / Event Offset Triggers Contrib. To Assert Readable Event Rearm Stand- (Sensor name in SDR) Applicability Reading System Status / De-...
  • Page 143 Appendix C: Integrated BMC Sensor Tables Intel® Server Board S2600CO Family TPS Full Sensor Name Sensor Platform Sensor Type Event / Event Offset Triggers Contrib. To Assert Readable Event Rearm Stand- (Sensor name in SDR) Applicability Reading System Status / De-...
  • Page 144 Intel® Server Board S2600CO Family TPS Appendix C: Integrated BMC Sensor Tables Full Sensor Name Sensor Platform Sensor Type Event / Event Offset Triggers Contrib. To Assert Readable Event Rearm Stand- (Sensor name in SDR) Applicability Reading System Status / De-...
  • Page 145 Appendix C: Integrated BMC Sensor Tables Intel® Server Board S2600CO Family TPS Full Sensor Name Sensor Platform Sensor Type Event / Event Offset Triggers Contrib. To Assert Readable Event Rearm Stand- (Sensor name in SDR) Applicability Reading System Status / De-...

  • Page 146: Appendix D: Intel Server Board S2600Co Family Specific Sensors

    Intel® Server Board S2600CO Family TPS Appendix D: Intel® Server Board S2600CO Family Specific Sensors Appendix D: Intel Server Board S2600CO Family Specific ® Sensors Product ID Bytes 11:12 (product ID) of Get Device ID command response: 5Dh 00h ACPI S3 Sleep State Support Not supported.

  • Page 147: Hot-Plug Fan Support

    Appendix D: Intel® Server Board S2600CO Family Specific Sensors Intel® Server Board S2600CO Family TPS Hot-plug fan support Supported on: ® Intel Server Chassis P4208 (UPM with redundant fan 4U)  ® Intel Server Chassis P4216 (UPM with redundant fan 4U) ...
  • Page 148 Intel® Server Board S2600CO Family TPS Appendix D: Intel® Server Board S2600CO Family Specific Sensors Chassis Major Components Cooled Fans Fan Domain (Temperature sensor number) (Sensor number) HSBP 1 Temp(29h)  HSBP 2 Temp(2Ah)  Exit Air Temp(2Eh)  P1 Therm Margin (74h) ...

  • Page 149: Hsc Availability

    Appendix D: Intel® Server Board S2600CO Family Specific Sensors Intel® Server Board S2600CO Family TPS Chassis Major Components Cooled Fans Fan Domain (Temperature sensor number) (Sensor number) P1 Therm Margin(74h)  P2 Therm Margin(75h)  DIMM Thrm Mrgn 1(B0h) ...

  • Page 150: Redundant Fans Only For Intel ® Server Chassis

    Intel® Server Board S2600CO Family TPS Appendix D: Intel® Server Board S2600CO Family Specific Sensors Product Name(in PS Module Cold Fans in PMBus product area of the PSU Redundant Number Redundant each PS FRU) 1200W HS Supported DPS-1200TB A Supported...

  • Page 151: Appendix E: Management Engine Generated Sel Event Messages

    Appendix E: Management Engine Generated SEL Event Messages Intel® Server Board S2600CO Family TPS Appendix E: Management Engine Generated SEL Event Messages This appendix lists the OEM System Event Log message format of events generated by the Management Engine (ME). This includes the definition of event data bytes 10-16 of the Management Engine generated SEL records.

  • Page 152: Table 75. Node Manager Health Event

    Intel® Server Board S2600CO Family TPS Appendix E: Management Engine Generated SEL Event Messages Table 75. Node Manager Health Event Node Manager Health Event Request Byte 1 - EvMRev =04h (IPMI2.0 format) Byte 2 – Sensor Type =DCh (OEM) Byte 3 – Sensor Number (Node Manager Health sensor) Byte 4 –...

  • Page 153: Appendix F: Post Code Diagnostic Led Decoder

    Appendix F: POST Code Diagnostic LED Decoder Intel® Server Board S2600CO Family TPS Appendix F: POST Code Diagnostic LED Decoder As an aid to assist in trouble shooting a system hang that occurs during a system’s Power-On Self Test (POST) process, the server board includes a bank of eight POST Code Diagnostic LEDs on the back edge of the server board.

  • Page 154: Table 77. Diagnostic Led Post Code Decoder

    Intel® Server Board S2600CO Family TPS Appendix F: POST Code Diagnostic LED Decoder The following table provides a list of all POST progress codes: Table 77. Diagnostic LED POST Code Decoder Diagnostic LED Decoder 1 = LED On, 0 = LED Off...
  • Page 155 Appendix F: POST Code Diagnostic LED Decoder Intel® Server Board S2600CO Family TPS Diagnostic LED Decoder 1 = LED On, 0 = LED Off Checkpoint Upper Nibble Lower Nibble Description LED # DXE SIO Init DXE USB start DXE USB reset...

  • Page 156: Table 78. Mrc Progress Codes

    Intel® Server Board S2600CO Family TPS Appendix F: POST Code Diagnostic LED Decoder Table 78. MRC Progress Codes Diagnostic LED Decoder 1 = LED On, 0 = LED Off Upper Nibble Lower Nibble Checkpoint Description MRC Progress Codes Detect DIMM population...
  • Page 157 Appendix F: POST Code Diagnostic LED Decoder Intel® Server Board S2600CO Family TPS Diagnostic LED Decoder 1 = LED On, 0 = LED Off Checkpoint Upper Nibble Lower Nibble Description (with MRC Internal Minor Code) disabled due to hardware memtest error.

  • Page 158: Appendix G: Post Code Errors

    The user needs to replace the faulty part and restart the system. Note: The POST error codes in the following table are common to all current generation Intel server platforms. Features present on a given server board/system will determine which of the listed error codes are supported.
  • Page 159 Error Message Response 0192 Processor cache size mismatch detected Fatal 0194 Processor family mismatch detected Fatal 0195 Processor Intel(R) QPI link frequencies unable to synchronize Fatal 0196 Processor model mismatch detected Fatal 0197 Processor frequencies unable to synchronize Fatal 5220...
  • Page 160 Intel® Server Board S2600CO Family TPS Appendix G: Post Code Errors Error Code Error Message Response 852A DIMM_D2 failed test/initialization Major 852B DIMM_D3 failed test/initialization Major 852C DIMM_E1 failed test/initialization Major 852D DIMM_E2 failed test/initialization Major 852E DIMM_E3 failed test/initialization...
  • Page 161 Appendix G: POST Code Errors Intel® Server Board S2600CO Family TPS Error Code Error Message Response 8557 DIMM_H3 disabled Major 8558 DIMM_I1 disabled Major 8559 DIMM_I2 disabled Major 855A DIMM_I3 disabled Major 855B DIMM_J1 disabled Major 855C DIMM_J2 disabled Major...
  • Page 162 Intel® Server Board S2600CO Family TPS Appendix G: Post Code Errors Error Code Error Message Response 85C2 DIMM_L2 failed test/initialization Major 85C3 DIMM_L3 failed test/initialization Major 85C4 DIMM_M1 failed test/initialization Major 85C5 DIMM_M2 failed test/initialization Major 85C6 DIMM_M3 failed test/initialization...

  • Page 163: Table 81. Post Error Beep Codes

    Codes that are common across all Intel server boards and systems that use same generation chipset are listed in the following table. Each digit in the code is represented by a sequence of beeps whose count is equal to the digit.

  • Page 164: Table 82. Integrated Bmc Beep Codes

    Intel® Server Board S2600CO Family TPS Appendix G: Post Code Errors Table 82. Integrated BMC Beep Codes Code Reason for Beep Associated Sensors 1-5-2-1 CPU socket population error CPU1 socket is empty, or sockets are populated incorrectly CPU1 must be populated before CPU2.

  • Page 165: Glossary

    Glossary Intel® Server Board S2600CO Family TPS Glossary This appendix contains important terms used in the preceding chapters. For ease of use, numeric entries are listed first (for example, 82460GX) with alpha entries following (for example, AGP 4x). Acronyms are then entered in their respective place, with non-acronyms following.
  • Page 166 Intel® Server Board S2600CO Family TPS Glossary Term Definition INTR Interrupt Internet Protocol IPMB Intelligent Platform Management Bus IPMI Intelligent Platform Management Interface Infrared In-Target Probe 1024 bytes Keyboard Controller Style Local Area Network Liquid Crystal Display Light Emitting Diode...
  • Page 167 Glossary Intel® Server Board S2600CO Family TPS Term Definition Server Management Interrupt (SMI is the highest priority nonmaskable interrupt) Server Management Mode Server Management Software SNMP Simple Network Management Protocol To Be Determined Thermal Interface Material UART Universal Asynchronous Receiver/Transmitter...

  • Page 168: Reference Documents

    2. Intelligent Platform Management Bus Communications Protocol Specification, Version 1.0. 1998. Intel Corporation, Hewlett-Packard* Company, NEC* Corporation, Dell Computer* Corporation. 3. Intelligent Platform Management Interface Specification, Version 2.0. 2004. Intel Corporation, Hewlett-Packard* Company, NEC* Corporation, Dell Computer* Corporation. 4. Platform Support for Serial-over-LAN (SOL), TMode, and Terminal Mode External Architecture Specification, Version 1.1, 02/01/02, Intel Corporation.

This manual is also suitable for:

S2600co series

Table of Contents

Save PDF
