Appendix F: Supported Intel® Server Chassis SC5650 and Intel® Server System SC5650BCDPIntel® Server Board S5500BC TPS

Appendix F: Supported Intel

Intel® Server System SC5650BCDP
®
The Intel Entry Server Chassis SC5650 is a 5.2U pedestal chassis designed to support the
®
Intel Server Boards S5500BC.
®
The Intel Entry Server Chassis SC5650 addresses the value server market with two power
factor correction (PFC) power supply unit (PSU) configurations:
SC5650DP – 600-W fixed PSU for dual-processor server boards

SC5650BRP – 600-W 1+1 redundant PSU for dual-processor server boards

For more information, see the Intel
(TPS).

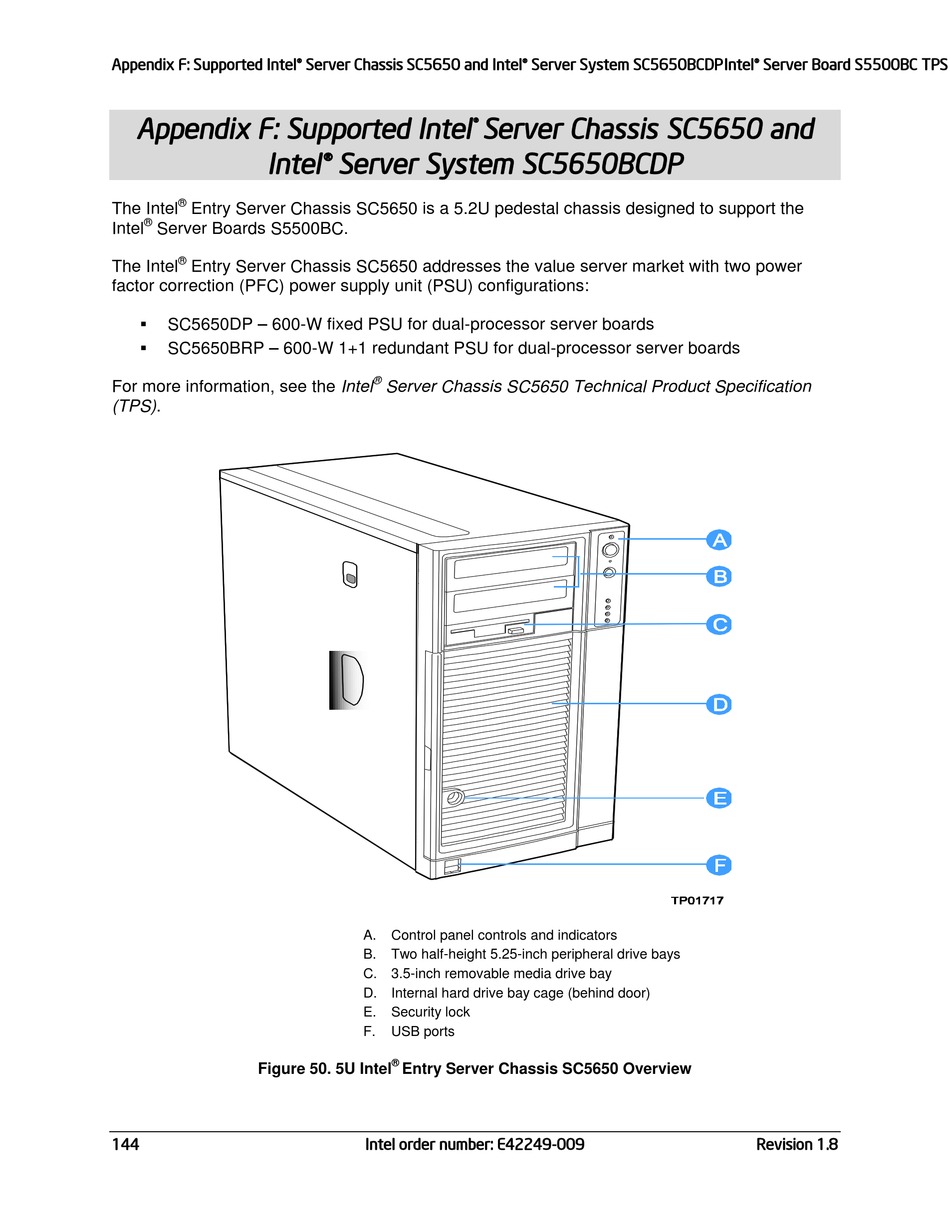

Figure 50. 5U Intel
144
Server Chassis SC5650 and
®
®
Server Chassis SC5650 Technical Product Specification
A. Control panel controls and indicators
B. Two half-height 5.25-inch peripheral drive bays
C. 3.5-inch removable media drive bay
D. Internal hard drive bay cage (behind door)
E. Security lock
F. USB ports
®
Entry Server Chassis SC5650 Overview
Intel order number: E42249-009 Revision 1.8
