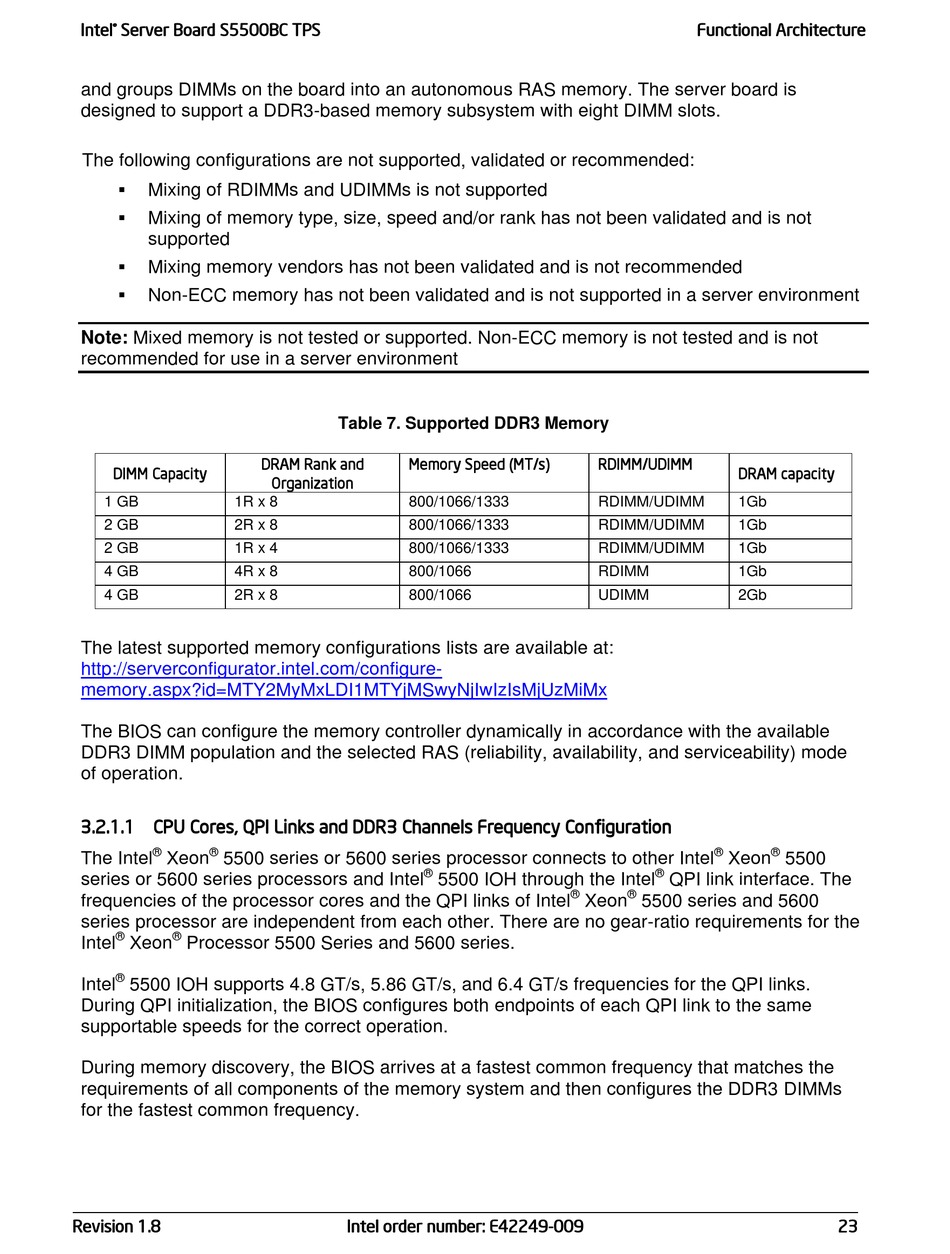

Table 7. Supported Ddr3 Memory - Intel SC5650BCDP Technical Product Specification

Intel Server Board S5500BC TPS
®
and groups DIMMs on the board into an autonomous RAS memory. The server board is
designed to support a DDR3-based memory subsystem with eight DIMM slots.
The following configurations are not supported, validated or recommended:

Mixing of RDIMMs and UDIMMs is not supported

Mixing of memory type, size, speed and/or rank has not been validated and is not
supported

Mixing memory vendors has not been validated and is not recommended

Non-ECC memory has not been validated and is not supported in a server environment
Note: Mixed memory is not tested or supported. Non-ECC memory is not tested and is not
recommended for use in a server environment
DIMM Capacity
1 GB 1R x 8
2 GB 2R x 8
2 GB 1R x 4
4 GB 4R x 8
4 GB 2R x 8
The latest supported memory configurations lists are available at:
http://serverconfigurator.intel.com/configure-
memory.aspx?id=MTY2MyMxLDI1MTYjMSwyNjIwIzIsMjUzMiMx
The BIOS can configure the memory controller dynamically in accordance with the available
DDR3 DIMM population and the selected RAS (reliability, availability, and serviceability) mode
of operation.
3.2.1.1 CPU Cores, QPI Links and DDR3 Channels Frequency Configuration
® ®
The Intel Xeon 5500 series or 5600 series processor connects to other Intel
series or 5600 series processors and Intel
frequencies of the processor cores and the QPI links of Intel
series processor are independent from each other. There are no gear-ratio requirements for the
® ®
Intel Xeon Processor 5500 Series and 5600 series.
®
Intel 5500 IOH supports 4.8 GT/s, 5.86 GT/s, and 6.4 GT/s frequencies for the QPI links.
During QPI initialization, the BIOS configures both endpoints of each QPI link to the same
supportable speeds for the correct operation.
During memory discovery, the BIOS arrives at a fastest common frequency that matches the
requirements of all components of the memory system and then configures the DDR3 DIMMs
for the fastest common frequency.
Revision 1.8

Table 7. Supported DDR3 Memory

DRAM Rank and Memory Speed (MT/s)
Organization
800/1066/1333
800/1066/1333
800/1066/1333
800/1066
800/1066
®
5500 IOH through the Intel
Intel order number: E42249-009
Functional Architecture
RDIMM/UDIMM
DRAM capacity
RDIMM/UDIMM 1Gb
RDIMM/UDIMM 1Gb
RDIMM/UDIMM 1Gb
RDIMM 1Gb
UDIMM 2Gb
®
Xeon
®
QPI link interface. The
® ®
Xeon 5500 series and 5600
®
5500
23
