Jumper Block Settings
Intel
Server Board S5500BC TPS
®
7. Jumper Block Settings
®
The Intel
Server Board S5500BC has several jumper blocks that you can use to configure,
recover, or enable /disable specific features of the server board. Pin 1 on each jumper block is
denoted by ―▼‖.

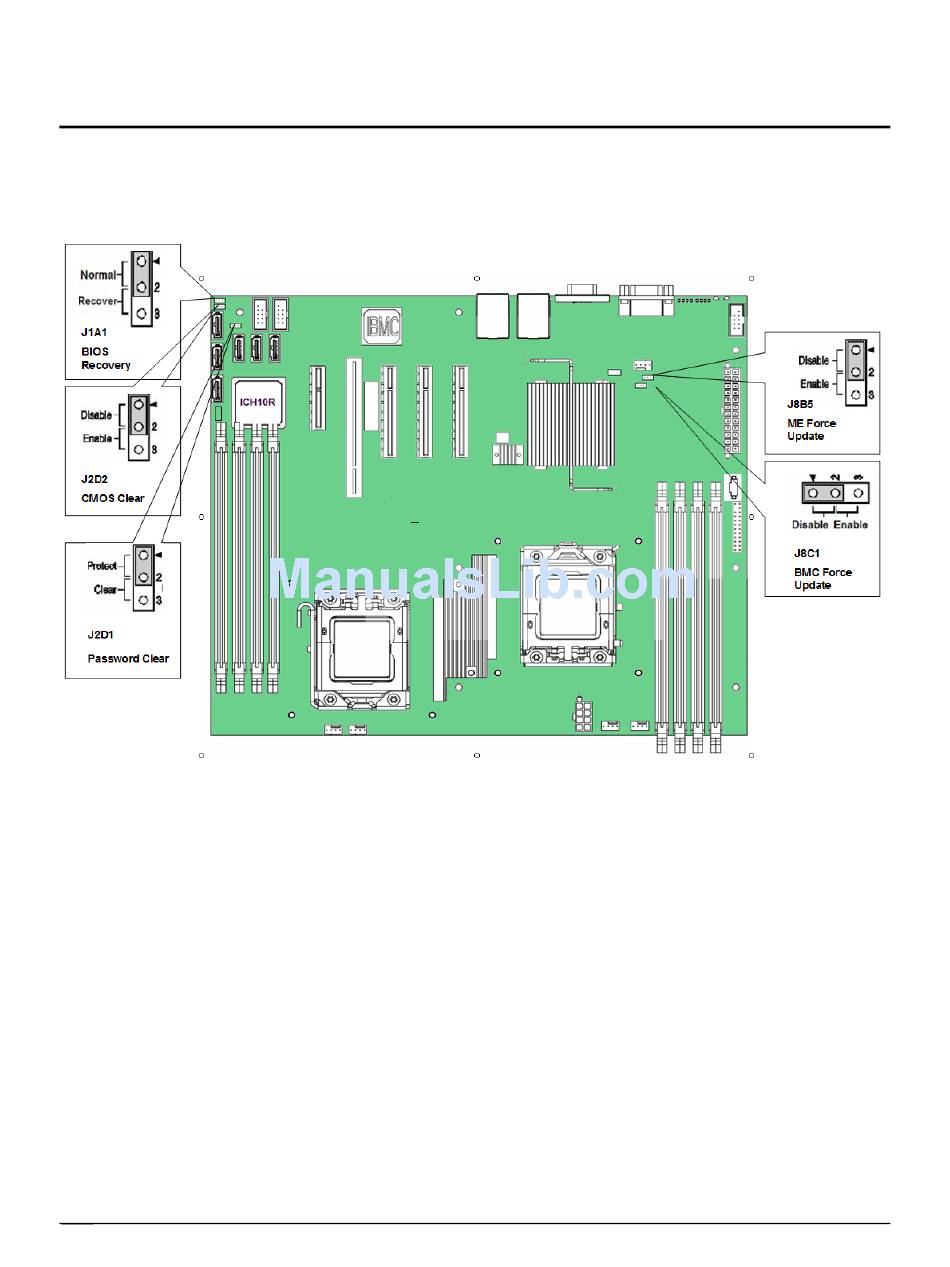

Figure 44. Jumper Blocks
100
Intel order number: E42249-009
Revision 1.8
