BIOS Setup Utility

Console Redirection
Console Redirection
Flow Control
Baud Rate
Terminal Type
Legacy OS Redirection

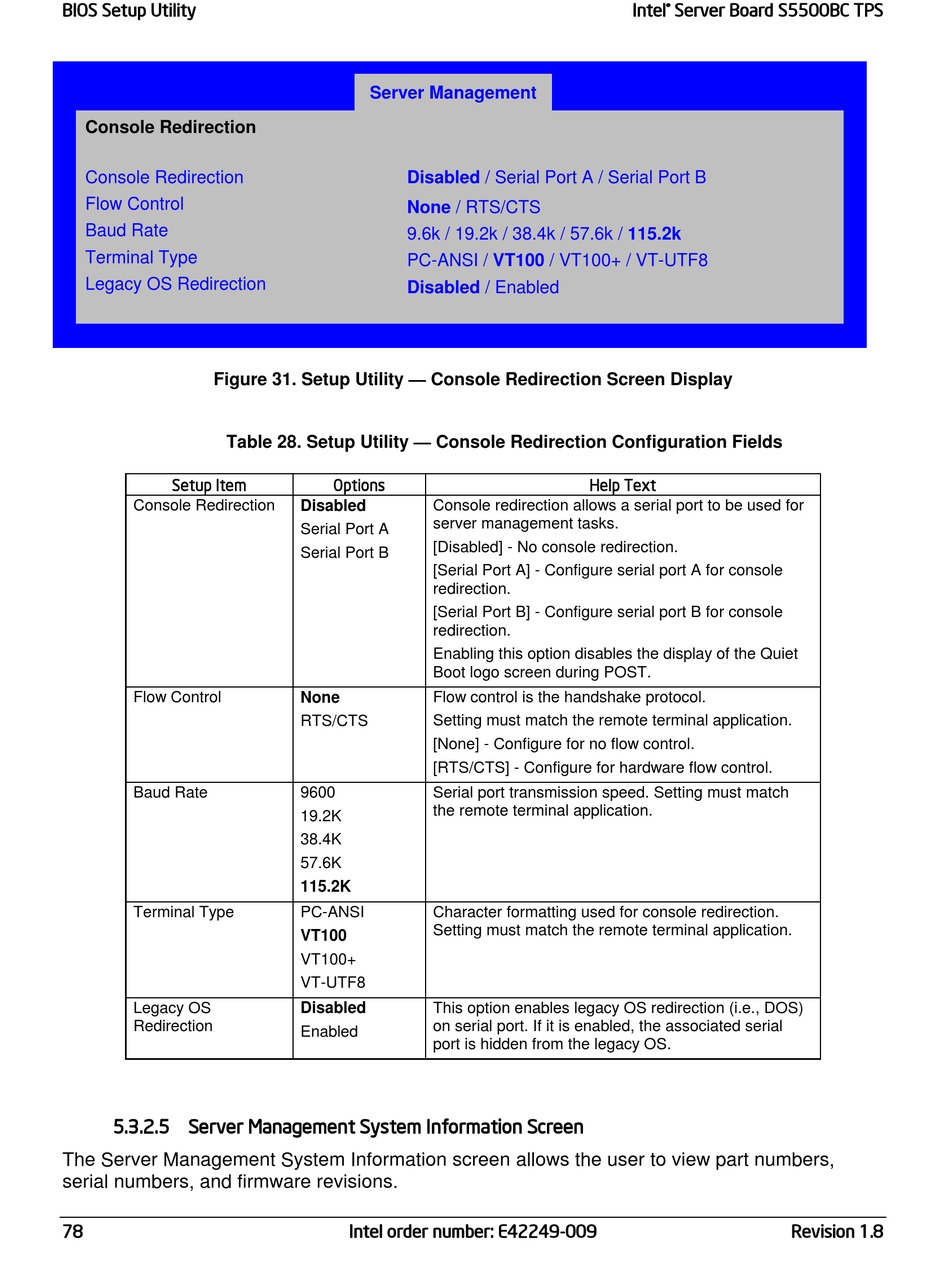

Figure 31. Setup Utility — Console Redirection Screen Display
Table 28. Setup Utility — Console Redirection Configuration Fields
Setup Item
Console Redirection
Flow Control
Baud Rate
Terminal Type
Legacy OS
Redirection
5.3.2.5 Server Management System Information Screen
The Server Management System Information screen allows the user to view part numbers,
serial numbers, and firmware revisions.
78
Server Management
Disabled / Serial Port A / Serial Port B
None / RTS/CTS
9.6k / 19.2k / 38.4k / 57.6k / 115.2k
PC-ANSI / VT100 / VT100+ / VT-UTF8
Disabled / Enabled
Options
Disabled Console redirection allows a serial port to be used for
server management tasks.
Serial Port A
[Disabled] - No console redirection.
Serial Port B
[Serial Port A] - Configure serial port A for console
redirection.
[Serial Port B] - Configure serial port B for console
redirection.
Enabling this option disables the display of the Quiet
Boot logo screen during POST.
Flow control is the handshake protocol.
None
Setting must match the remote terminal application.
RTS/CTS
[None] - Configure for no flow control.
[RTS/CTS] - Configure for hardware flow control.
9600 Serial port transmission speed. Setting must match
the remote terminal application.
19.2K
38.4K
57.6K
115.2K
PC-ANSI Character formatting used for console redirection.
Setting must match the remote terminal application.
VT100
VT100+
VT-UTF8
Disabled This option enables legacy OS redirection (i.e., DOS)
on serial port. If it is enabled, the associated serial
Enabled
port is hidden from the legacy OS.
