BIOS Setup Utility
Setup Item
CDROM #1
CDROM #2
5.3.2.6.5 Floppy Order Screen
The Floppy Order screen allows the user to control the floppy drives.
To access this screen from the Main screen, select Boot Options > Floppy Order.

Floppy Disk
#1
Floppy Disk
#2
Setup Item
Floppy Disk #1
Floppy Disk #2
5.3.2.6.6 Network Device Order Screen
The Network Device Order screen allows the user to control the network bootable devices.
To access this screen from the Main screen, select Boot Options > Network Device Order.
84
Table 34. Setup Utility — CDROM Order Fields
Options
Available
Legacy devices
for this Device
group.
Available
Legacy devices
for this Device
group.

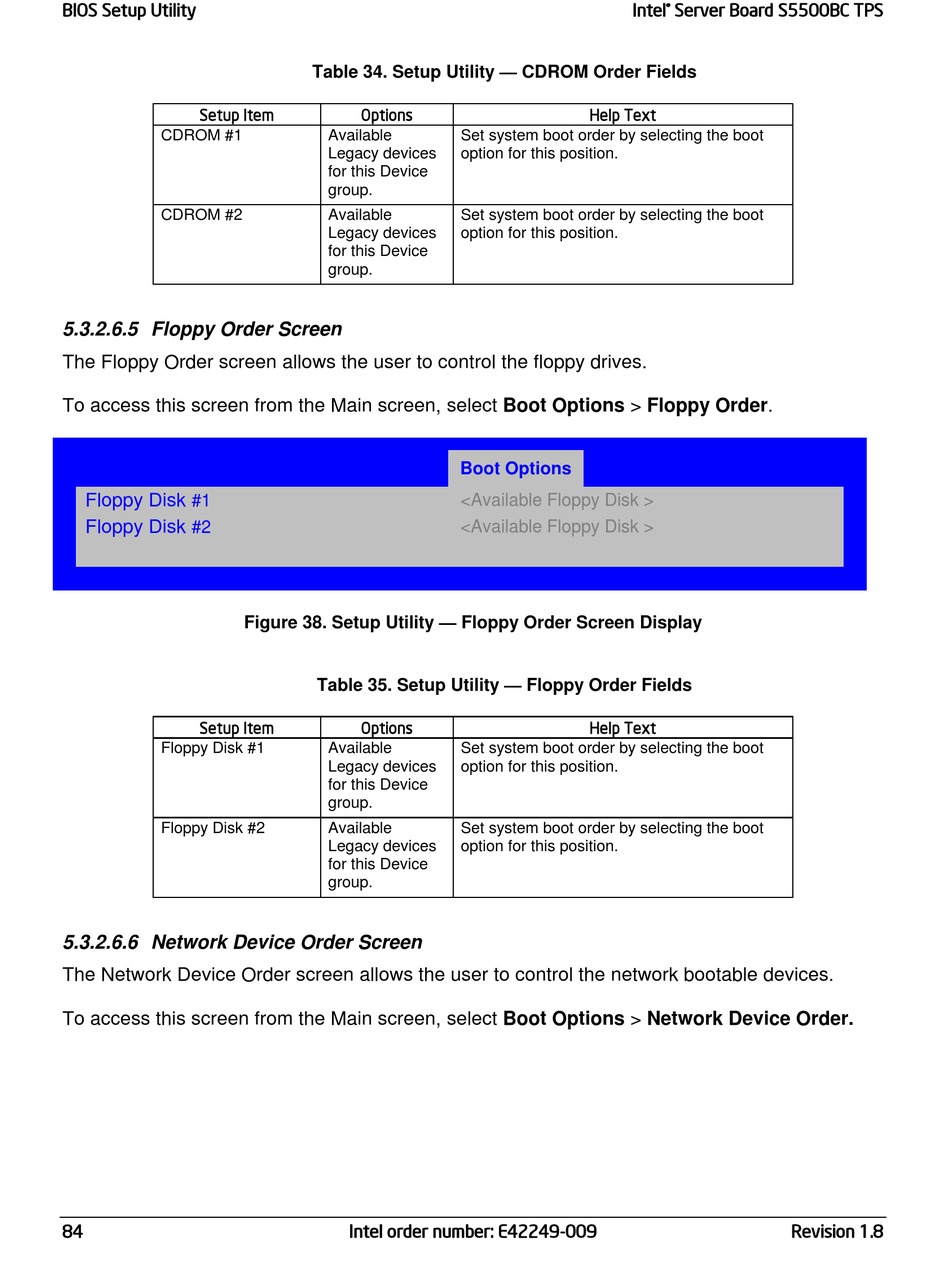

Figure 38. Setup Utility — Floppy Order Screen Display
Table 35. Setup Utility — Floppy Order Fields
Options
Available
Legacy devices
for this Device
group.
Available
Legacy devices
for this Device
group.
Intel order number: E42249-009
Intel
Help Text
Set system boot order by selecting the boot
option for this position.
Set system boot order by selecting the boot
option for this position.
Boot Options
<Available Floppy Disk >
<Available Floppy Disk >
Help Text
Set system boot order by selecting the boot
option for this position.
Set system boot order by selecting the boot
option for this position.
Server Board S5500BC TPS
®
Revision 1.8

