Product Overview
Intel
Server Board S5500BC TPS
®
2.2 Server Board Layout
®

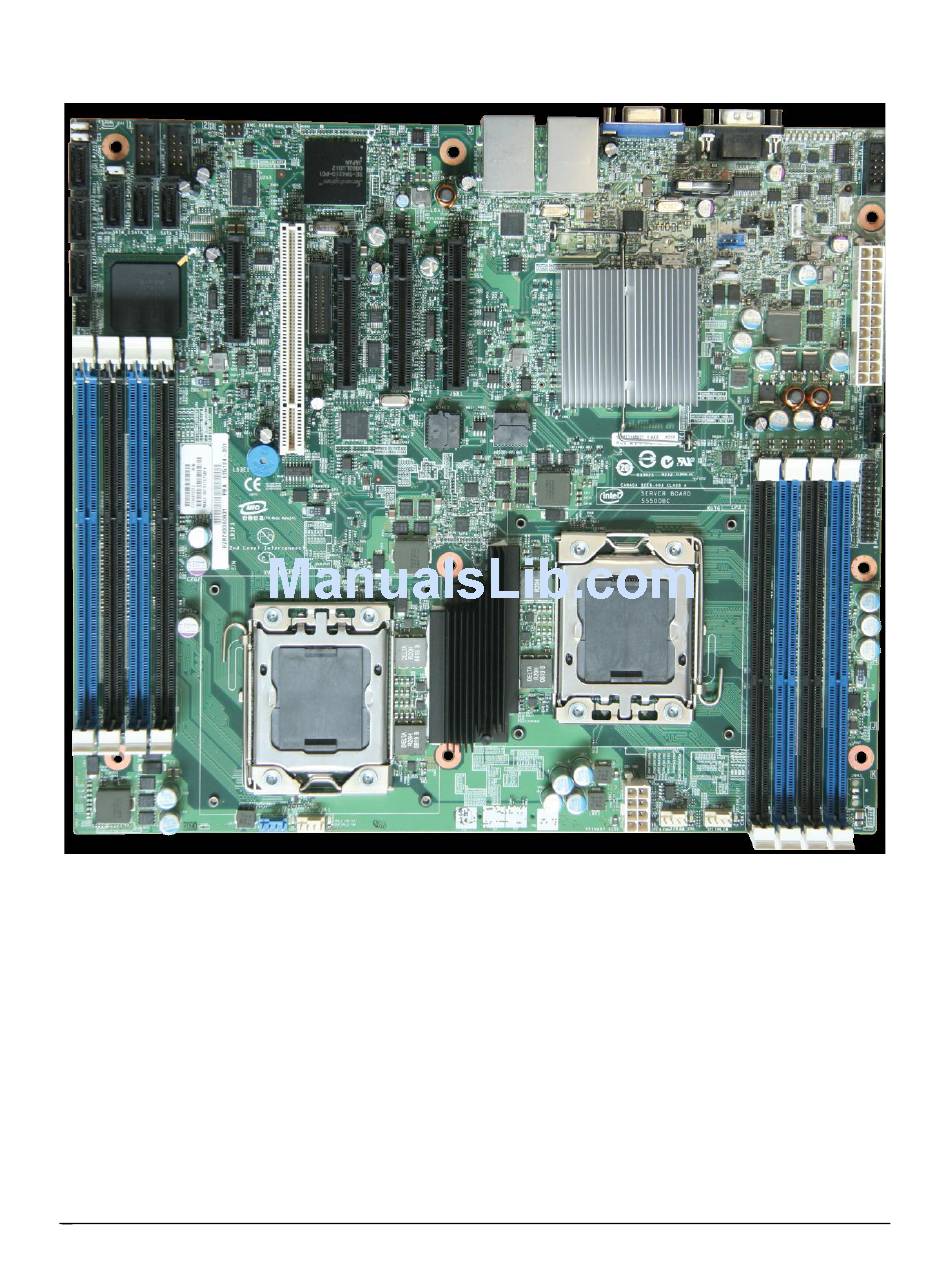

Figure 1. Intel
Server Board S5500BC Picture
2.2.1 Server Board Connector and Component Layout
Figure 2 shows the board layout of the server board. Each connector and major component is
identified by a number or letter, and a description is below the figure.
4
Intel order number: E42249-009
Revision 1.8
