BIOS Setup Utility
5.3.2.4 Server Management Screen
The Server Management screen allows the user to configure several server management
features. This screen also provides an access point to the screens for configuring console
redirection and displaying system information.
To access this screen from the Main screen, select Server Management.
Advance
Main

d
Assert NMI on SERR
Assert NMI on PERR
Resume on AC Power Loss
Clear System Event Log
FRB-2 Enable
O/S Boot Watchdog Timer
O/S Boot Watchdog Timer Policy
O/S Boot Watchdog Timer Timeout
ACPI 1.0 Support
Plug & Play BMC Detection
► Console Redirection
► System Information

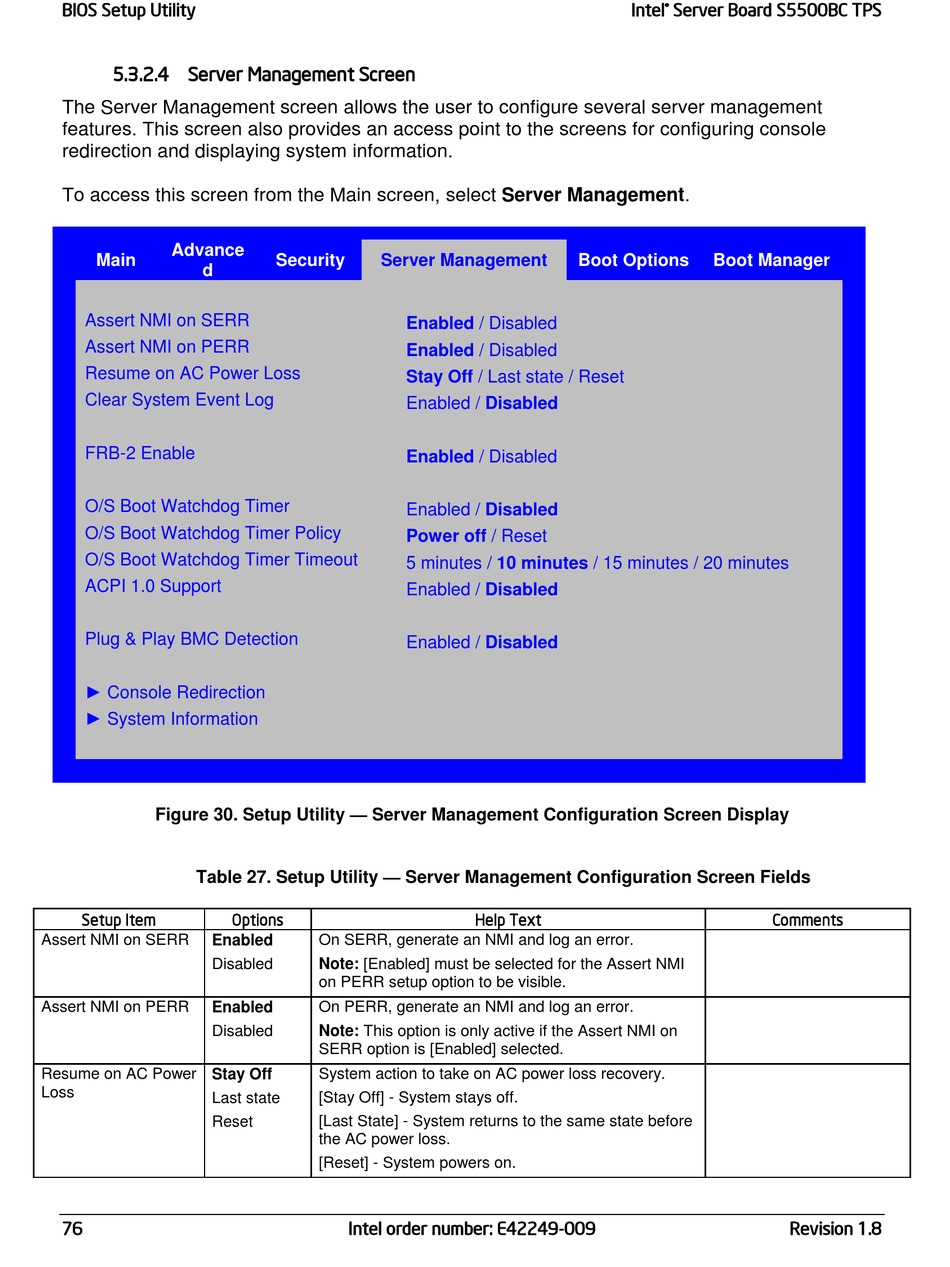

Figure 30. Setup Utility — Server Management Configuration Screen Display
Table 27. Setup Utility — Server Management Configuration Screen Fields
Setup Item
Assert NMI on SERR Enabled
Disabled
Assert NMI on PERR
Enabled
Disabled
Resume on AC Power Stay Off
Loss
Last state
Reset
76
Security Server Management
Enabled / Disabled
Enabled / Disabled
Stay Off / Last state / Reset
Enabled / Disabled
Enabled / Disabled
Enabled / Disabled
Power off / Reset
5 minutes / 10 minutes / 15 minutes / 20 minutes
Enabled / Disabled
Enabled / Disabled
Options
On SERR, generate an NMI and log an error.
Note: [Enabled] must be selected for the Assert NMI
on PERR setup option to be visible.
On PERR, generate an NMI and log an error.
Note: This option is only active if the Assert NMI on
SERR option is [Enabled] selected.
System action to take on AC power loss recovery.
[Stay Off] - System stays off.
[Last State] - System returns to the same state before
the AC power loss.
[Reset] - System powers on.
Intel order number: E42249-009
Intel
Boot Options
Help Text
Server Board S5500BC TPS
®
Boot Manager
Comments
Revision 1.8

