Intel Server Board S5500BC TPS
®

Sockets are self-contained and autonomous. However, all RAS Error Management
configurations in the BIOS setup are applied commonly across sockets.

3.2.3 Memory Upgrade Guidelines

Upgrading the system memory requires careful positioning of the DDR3 DIMMs based on the
following factors:

The current RAS mode of operation.

The existing DDR3 DIMM population.

The DDR3 DIMM characteristics.

The optimization techniques used by the Intel
series to maximize memory bandwidth.
In Independent Channel Mode all DDR3 channels operate independently. Slot-to-slot DIMM
matching is not required across channels. For example, DIMM_A1 and DIMM_B1 do not have
to match in terms of size, organization, and timing. DIMMs in a channel can be a different size
and organization, but they will operate at the maximum common frequency. You can use
Independent Channel Mode to support a single DIMM configuration in channel A and Single
Channel Mode.
You should observe the following general rules when selecting and configuring memory to
obtain the best performance from the system.
Revision 1.8

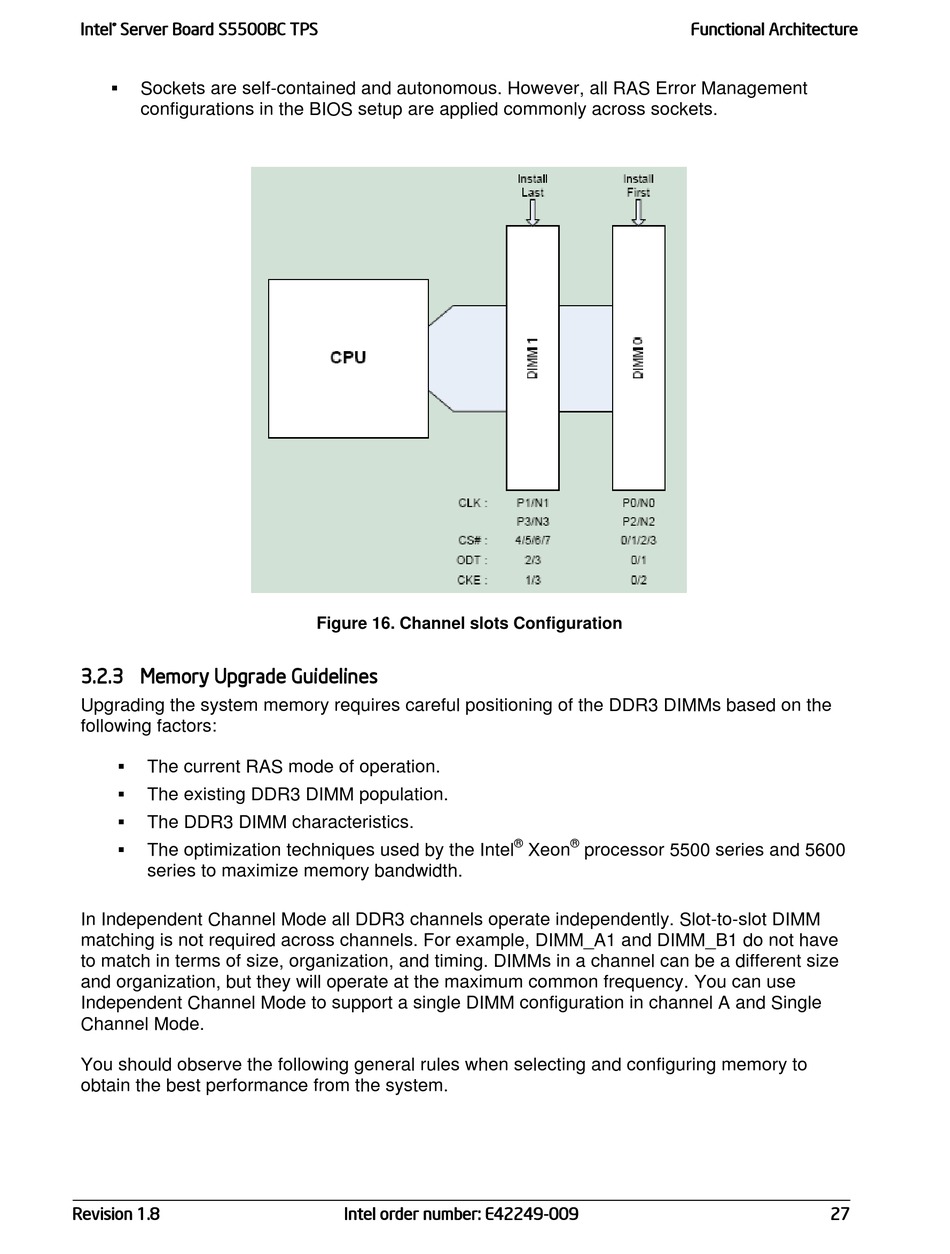

Figure 16. Channel slots Configuration

Intel order number: E42249-009
® ®
Xeon processor 5500 series and 5600
Functional Architecture
27
