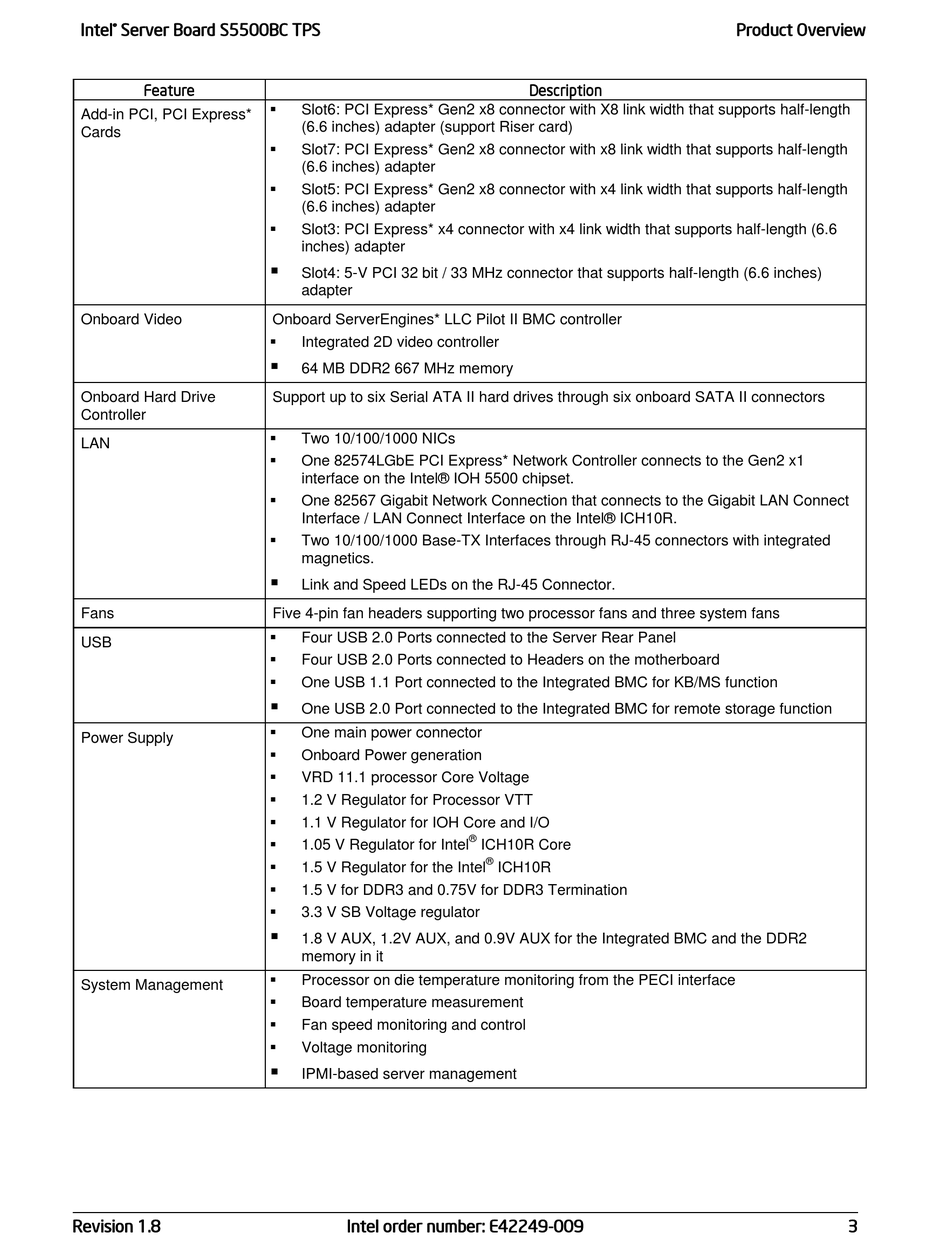

Intel Server Board S5500BC TPS
®
Feature
Add-in PCI, PCI Express*
Cards
Onboard Video
Onboard Hard Drive
Controller
LAN
Fans
USB
Power Supply
System Management
Revision 1.8

Slot6: PCI Express* Gen2 x8 connector with X8 link width that supports half-length
(6.6 inches) adapter (support Riser card)

Slot7: PCI Express* Gen2 x8 connector with x8 link width that supports half-length
(6.6 inches) adapter

Slot5: PCI Express* Gen2 x8 connector with x4 link width that supports half-length
(6.6 inches) adapter

Slot3: PCI Express* x4 connector with x4 link width that supports half-length (6.6
inches) adapter

Slot4: 5-V PCI 32 bit / 33 MHz connector that supports half-length (6.6 inches)
adapter
Onboard ServerEngines* LLC Pilot II BMC controller

Integrated 2D video controller

64 MB DDR2 667 MHz memory
Support up to six Serial ATA II hard drives through six onboard SATA II connectors

Two 10/100/1000 NICs

One 82574LGbE PCI Express* Network Controller connects to the Gen2 x1
interface on the Intel® IOH 5500 chipset.

One 82567 Gigabit Network Connection that connects to the Gigabit LAN Connect
Interface / LAN Connect Interface on the Intel® ICH10R.

Two 10/100/1000 Base-TX Interfaces through RJ-45 connectors with integrated
magnetics.

Link and Speed LEDs on the RJ-45 Connector.
Five 4-pin fan headers supporting two processor fans and three system fans

Four USB 2.0 Ports connected to the Server Rear Panel

Four USB 2.0 Ports connected to Headers on the motherboard

One USB 1.1 Port connected to the Integrated BMC for KB/MS function

One USB 2.0 Port connected to the Integrated BMC for remote storage function

One main power connector

Onboard Power generation

VRD 11.1 processor Core Voltage

1.2 V Regulator for Processor VTT

1.1 V Regulator for IOH Core and I/O

1.05 V Regulator for Intel

1.5 V Regulator for the Intel

1.5 V for DDR3 and 0.75V for DDR3 Termination

3.3 V SB Voltage regulator

1.8 V AUX, 1.2V AUX, and 0.9V AUX for the Integrated BMC and the DDR2
memory in it

Processor on die temperature monitoring from the PECI interface

Board temperature measurement

Fan speed monitoring and control

Voltage monitoring

IPMI-based server management
Intel order number: E42249-009
Description
®
ICH10R Core
®
ICH10R
Product Overview
3
